Bosch 0986013010 Starter Motor
Your selected vehicle
Regular price
£117.95
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

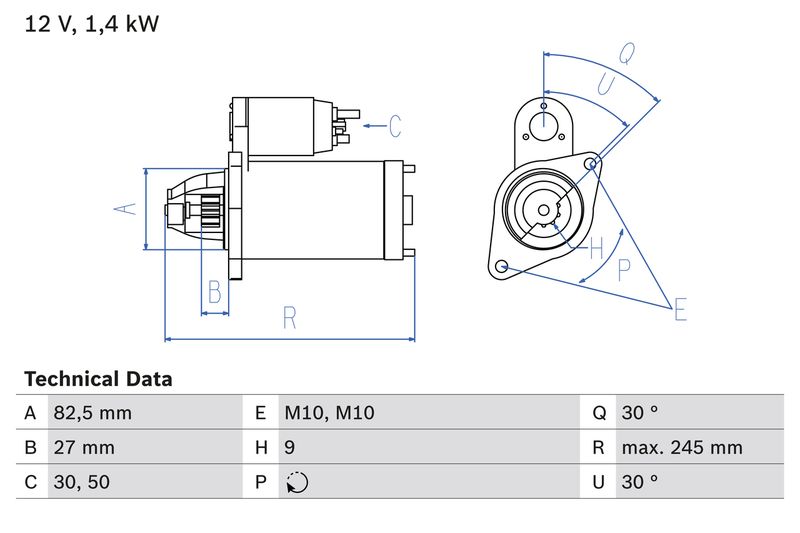

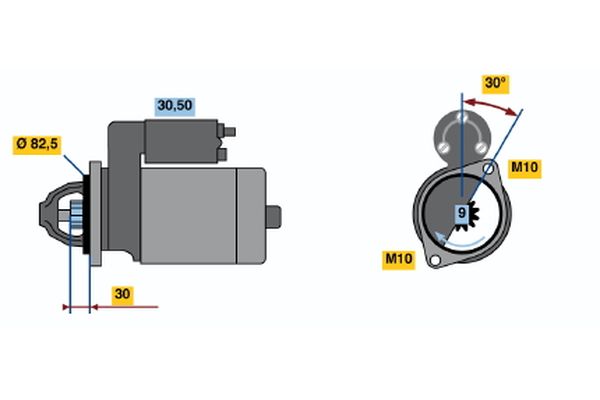

The Bosch 0986013010 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.4 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.4
Number of mounting bores :
0
Number of threaded holes :
2
Number of Teeth :
9
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
82.5
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
27
Starter Type :
Self-supporting
Thread Size :
M10
Thread Size 1 :
M10x1.5
Length [mm] :
245
Position/Degree :
rechts
Mounting Angle [degrees] :
30
Jaw opening angle measurement [Degree] :
30
Mounting bore angle measurement [degree] :
30
- Vendor BOSCH
- SKU 0986013010
- MERCEDES-BENZ : A 003 151 28 01 A 003 151 28 01 80 A 004 151 46 01 A 004 151 46 01 80 A 004 151 64 01 A 004 151 64 01 80 A 004 151 81 01 A 004 151 81 01 80 003 151 28 01 003 151 28 01 80 004 151 46 01 004 151 46 01 80 004 151 64 01 004 151 64 01 80 004 151 81 01 004 151 81 01 80
- SSANGYONG : 004 151 81 01
- DAEWOO : 0041518101
- APEC : ASM1272
- APEC : ASM2018
- BORG & BECK : BST2158
- BORG & BECK : BST2162
- Carwood Group : BREF0320986013010
- Carwood Group : BREF032111347
- FEBI BILSTEIN : 101596
- HELLA : 8EA 011 610-341
- LUCAS : LRS00655
- NAPA : NSM1272
- NAPA : NSM2018
- VALEO : 432675
- WAI : 17039N
- WAI : 17698N
- WAI : 17730N
- WAI : S133.104
- WAI : S133.139
- BOSCH : 1301
