Bosch 0986013260 Starter Motor
Your selected vehicle
Regular price
£390.58
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

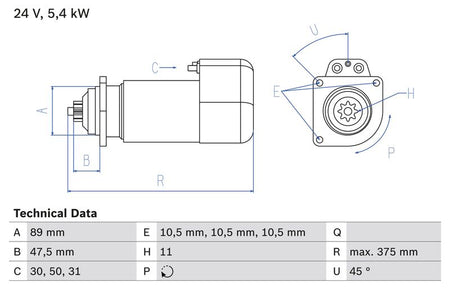

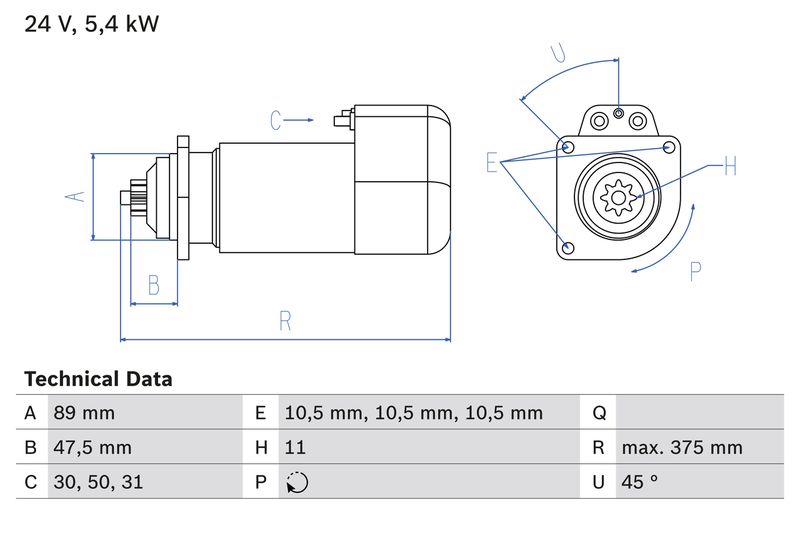

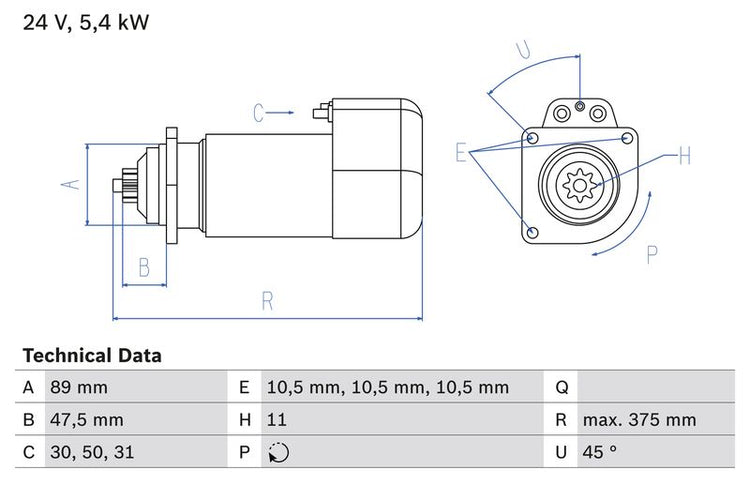

The Bosch 0986013260 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 5.4 kW rated power, 11 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
5.4
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
11
Clamp :
30
Clamp :
50
Clamp :
31
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
47.5
Starter Type :
Floating pinion
Bore Diameter [mm] :
10.5
Bore Diameter 2 [mm] :
10.5
Bore Ø 3 [mm] :
10.5
Length [mm] :
375
Position/Degree :
links
Mounting Angle [degrees] :
45
Mounting bore angle measurement [degree] :
45
- Vendor BOSCH
- SKU 0986013260
- MAN : 51 26201 7100
- VOLVO : 465929 5003027
- STEYR : 81500090049
- LIEBHERR : 600 07 33
- BORG & BECK : BST32058
- Carwood Group : BREF0320986013260
- Carwood Group : BREF032110208
- FEBI BILSTEIN : 48983
- HELLA : 8EA 012 586-571
- LUCAS : LRS02149
- MAHLE : MS 672
- VALEO : 203041
- VALEO : 458340
- WAI : 18253N
- BOSCH : 1326
