Bosch 0986013490 Starter Motor
Your selected vehicle
Regular price
£259.63
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

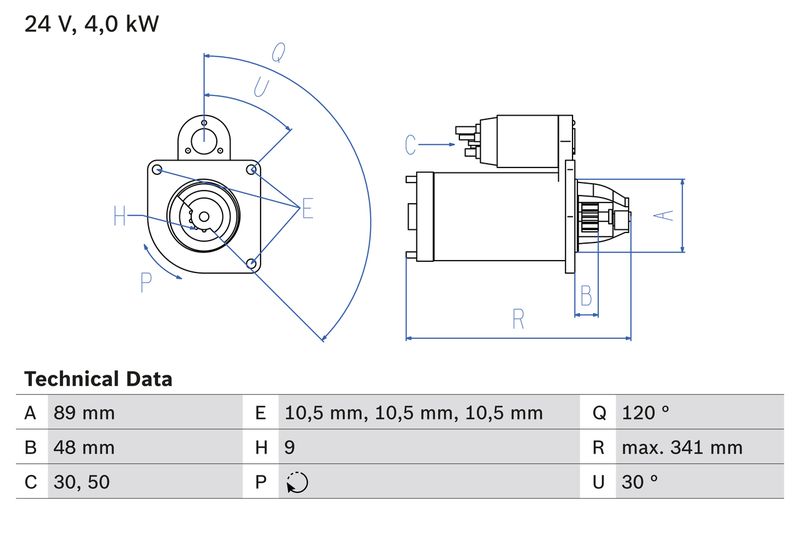

The Bosch 0986013490 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 4 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
4
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
9
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
48
Starter Type :
Self-supporting
Bore Diameter [mm] :
10.5
Bore Diameter 2 [mm] :
10.5
Bore Ø 3 [mm] :
10.5
Length [mm] :
341
Position/Degree :
rechts
Mounting Angle [degrees] :
30
Jaw opening angle measurement [Degree] :
120
Mounting bore angle measurement [degree] :
30
- Vendor BOSCH
- SKU 0986013490
- MERCEDES-BENZ : A 001 151 96 01 A 001 151 96 01 80 A 003 151 04 01 A 003 151 04 01 80 A 003 151 74 01 A 003 151 74 01 80 A 003 151 86 01 A 003 151 86 01 80 A 003 151 88 01 A 003 151 88 01 80 A 004 151 59 01 A 004 151 59 01 80 A 004 151 73 01 A 004 151 73 01 80 001 151 96 01 001 151 96 01 80 003 151 04 01 003 151 04 01 80 003 151 74 01 003 151 74 01 80 003 151 86 01 003 151 86 01 80 003 151 88 01 003 151 88 01 80 004 151 59 01 004 151 59 01 80 004 151 73 01 004 151 73 01 80
- OTOMARSAN : 0031518601 0031518801
- BORG & BECK : BST32054
- BOSCH : 1 986 S10 105
- Carwood Group : BREF0320986013490
- Carwood Group : BREF032110524
- Carwood Group : BREF0321986S10105
- HELLA : 8EA 012 586-121
- LUCAS : LRS00818
- MAHLE : MS 191
- VALEO : 203015
- VALEO : 455529
- WAI : 18371N
- BOSCH : 1349
