Home / Car Parts / Electrical / Starter System / Starter Motors
Bosch 0986016031 Starter - 1
Bosch 0986016031 Starter - 2
Bosch 0986016031 Starter - 1
Bosch 0986016031 Starter - 2
BOSCH

Bosch 0986016031 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986016031

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£243.76 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

NISSAN
CABSTAR (F23, H41, H42)
Description Cylinder Capacity Horse Power Year
2.5 D 2494 CCM 76 HP 07/1992 - 12/2000
NAVARA (D21)
Description Cylinder Capacity Horse Power Year
2.5 D 4x4 2494 CCM 80 HP 01/1986 - 03/2008
2.7 D 4x4 2664 CCM 99 HP 09/1987 - 12/1996
2.7 D 4x4 2664 CCM 86 HP 09/1989 - 08/1998
NAVARA (D22)
Description Cylinder Capacity Horse Power Year
2.5 TDiC 4x4 2494 CCM 103 HP 05/1998 - 10/2001
PICK UP (D21)
Description Cylinder Capacity Horse Power Year
2.7 D 4WD 2664 CCM 99 HP 08/1987 - 02/1998
2.5 D 4WD 2494 CCM 83 HP 03/1996 - 02/1998
2.5 D 2494 CCM 83 HP 08/1992 - 02/1998
2.5 D 4WD 2494 CCM 80 HP 08/1987 - 02/1998
2.5 D 2494 CCM 75 HP 09/1987 - 02/1998
2.7 TD 4WD 2664 CCM 99 HP 09/1987 - 12/1996
PICK UP (D22)
Description Cylinder Capacity Horse Power Year
2.5 D 2494 CCM 83 HP 02/1998 - 10/2002
2.5 TD 4WD 2494 CCM 103 HP 05/1998 - 11/2001
2.5 D 4WD 2494 CCM 83 HP 02/1998 - 04/2005
3.2 D 4WD 3153 CCM 103 HP 02/1997 - 04/2005
TERRANO   (WD21)
Description Cylinder Capacity Horse Power Year
2.7 TD 4WD (LBYD21) 2664 CCM 99 HP 02/1989 - 02/1996
TERRANO II (R20)
Description Cylinder Capacity Horse Power Year
2.7 TD 4WD 2664 CCM 101 HP 02/1993 - 01/2002
2.7 TDi 4WD 2664 CCM 125 HP 05/1996 - 09/2007
3.3 3275 CCM 170 HP 10/1992 - 12/2004
TERRANO REGULUS (R50)
Description Cylinder Capacity Horse Power Year
3.2 TD 4WD (JRR50W) 3153 CCM 150 HP 08/1996 - 12/1998
TERRANO II Van (R20)
Description Cylinder Capacity Horse Power Year
2.7 TDi 4WD 2664 CCM 125 HP 06/1998 - 09/2007
URVAN Bus (E24)
Description Cylinder Capacity Horse Power Year
2.5 D 2494 CCM 80 HP 05/1989 - 10/1996
2.0 1952 CCM 88 HP 06/1986 - 09/1994
2.7 D 2664 CCM 84 HP 03/1987 - 09/1993
URVAN Van (E24)
Description Cylinder Capacity Horse Power Year
2.3 D 2289 CCM 69 HP 01/1988 - 05/1997
2.5 D 2494 CCM 80 HP 12/1988 - 05/1997
2.0 1952 CCM 88 HP 06/1986 - 09/1994

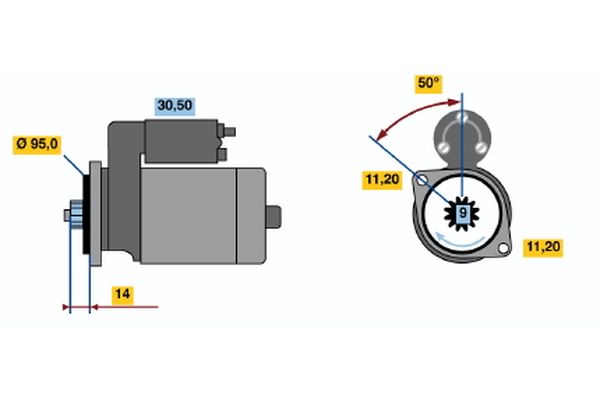

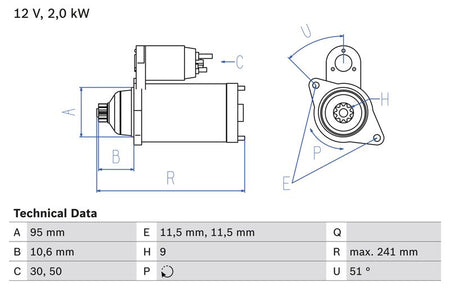

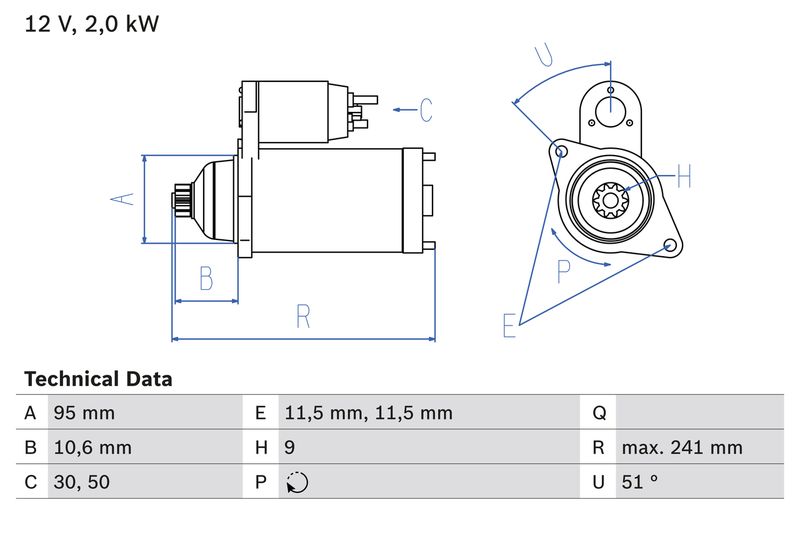

The Bosch 0986016031 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2 kW rated power, 9 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 9
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 95
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 10.6
Starter Type : Floating pinion
Bore Diameter [mm] : 11.5
Bore Diameter 2 [mm] : 11.5
Length [mm] : 241
Position/Degree : links
Mounting Angle [degrees] : 51
Mounting bore angle measurement [degree] : 51
Construction Year from : 08.1987
Construction Year to : 02.1998
Engine Code : TD27
Construction Year to : 10.1995
  • Vendor BOSCH
  • SKU 0986016031
  • Barcode 3165143177877
  • APEC : ASM1238
  • APEC : ASM1589
  • BLUE PRINT : ADN11232
  • BORG & BECK : BST2150
  • BORG & BECK : BST2296
  • BORG & BECK : BST2312
  • BORG & BECK : BST2366
  • BOSCH : 1 986 S00 617
  • Carwood Group : BREF0320986016031
  • Carwood Group : BREF032110574
  • Carwood Group : BREF032111805
  • Carwood Group : BREF0321986S00617
  • DENSO : DSN953
  • FEBI BILSTEIN : 1001489
  • FEBI BILSTEIN : 187817
  • HELLA : 8EA 011 610-871
  • LUCAS : LRS01170
  • MAHLE : MS 215
  • NAPA : NSM1238
  • NAPA : NSM1589
  • WAI : 30726N
  • WAI : 30730N
  • WAI : S130.739
  • WAI : S131.007
  • BOSCH : 1603
