Home / Car Parts / Electrical / Starter System / Starter Motors

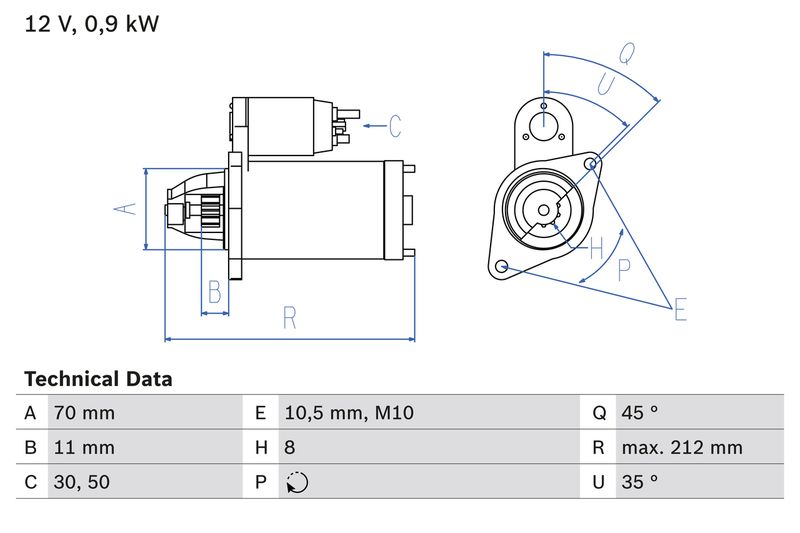

Bosch 0986016730 Starter - 1

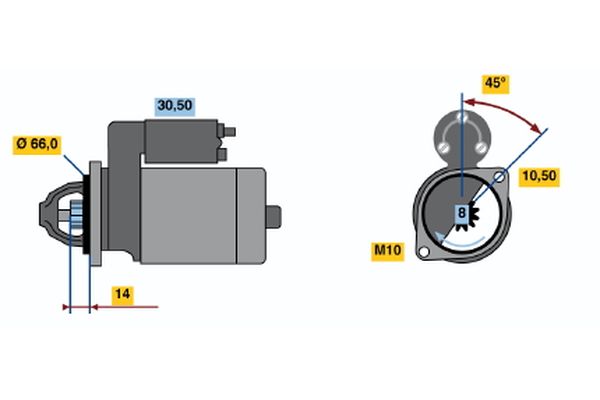

Bosch 0986016730 Starter - 2
Bosch 0986016730 Starter - 1
Bosch 0986016730 Starter - 2
BOSCH

Bosch 0986016730 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986016730

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£182.42 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

NISSAN
MICRA II (K11)
Description Cylinder Capacity Horse Power Year
1.0 i 16V (K11) 998 CCM 54 HP 08/1992 - 07/2000
1.3 i 16V (HK11) 1275 CCM 75 HP 08/1992 - 09/2000
1.0 i 16V (K11) 998 CCM 60 HP 07/2000 - 02/2003
1.4 i 16V (AK11) 1348 CCM 82 HP 09/2000 - 02/2003
MICRA III (K12)
Description Cylinder Capacity Horse Power Year
1.2 16V 1240 CCM 80 HP 01/2003 - 06/2010
1.4 16V 1386 CCM 88 HP 01/2003 - 06/2010
1.2 16V 1240 CCM 65 HP 01/2003 - 06/2010
1.0 16V (K12) 998 CCM 65 HP 01/2003 - 06/2010
1.2 LPG 1240 CCM 80 HP 10/2002 - 06/2010
MICRA C+C III (K12)
Description Cylinder Capacity Horse Power Year
1.4 16V 1386 CCM 88 HP 08/2005 - 01/2009
NOTE (E11, NE11)
Description Cylinder Capacity Horse Power Year
1.4 1386 CCM 88 HP 03/2006 - 06/2012

The Bosch 0986016730 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.1 kW rated power, Self-supporting starter type, and automatic Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.1
Number of mounting bores : 2
Number of threaded holes : 1
Number of Teeth : 8
Clamp : 30
Flange Diameter [mm] : 70
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 10.94
Starter Type : Self-supporting
Thread Size 1 : M10x1.5
Bore Diameter [mm] : 10.5
Length [mm] : 212
Position/Degree : rechts
Mounting Angle [degrees] : 35
Jaw opening angle measurement [Degree] : 45
Mounting bore angle measurement [degree] : 35
Transmission Type : Automatic Transmission
Construction Year from : 07.1993
for OE number : 23300 1F715
for OE number : 23300 99B10
Construction Year to : 07.2000
Engine Code : CG13DE
Construction Year from : 05.1995
  • Vendor BOSCH
  • SKU 0986016730
  • Barcode 3165141162240
  • NISSAN : 23300 AX000 23300 AX002 23300 AX010 23300 1F710 23300 1F715 23300 1F770 23300 1F771 23300 1F772 23300 41B71 23300 9W200 23300 99B10 23300 99B16 23300AX00A 23300AX01A 233001F77A 233001F77B 233001F77C
  • APEC : ASM1524
  • APEC : ASM1592
  • BORG & BECK : BST2208
  • BORG & BECK : BST2220
  • BOSCH : 1 986 S01 039
  • Carwood Group : BREF0320986016730
  • Carwood Group : BREF032113644
  • Carwood Group : BREF0321986S01039
  • DENSO : DSN3034
  • FEBI BILSTEIN : 101607
  • HELLA : 8EA 011 610-601
  • HELLA : 8EA 011 610-781
  • LUCAS : LRS02080
  • NAPA : NSM1524
  • NAPA : NSM1592
  • VALEO : 438136
  • VALEO : 438156
  • VALEO : 438387
  • VALEO : 455985
  • WAI : 33080N
  • WAI : S130.778
  • BOSCH : 1673
