Bosch 0986016790 Starter Motor
Your selected vehicle
Regular price
£166.70
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

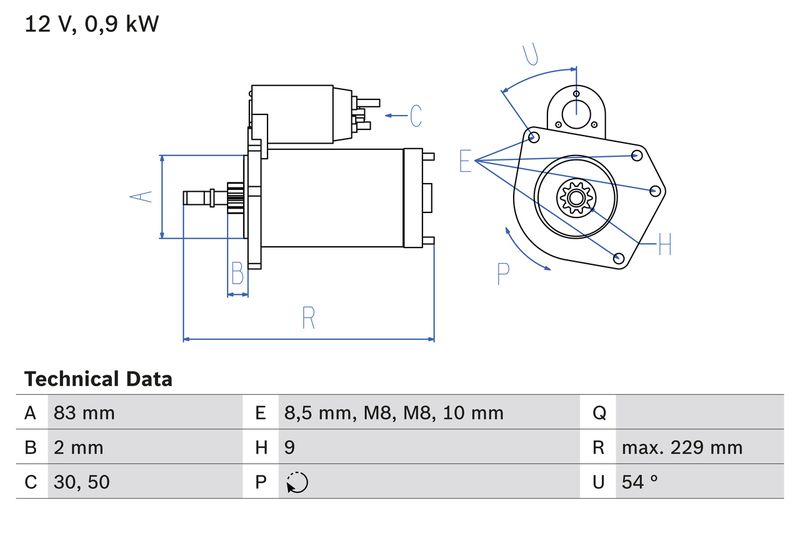

The Bosch 0986016790 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 0.9 kW rated power, 9 teeth, and Non self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
0.9
Number of mounting bores :
2
Number of threaded holes :
2
Number of Teeth :
9
Clamp :
50
Clamp :
30

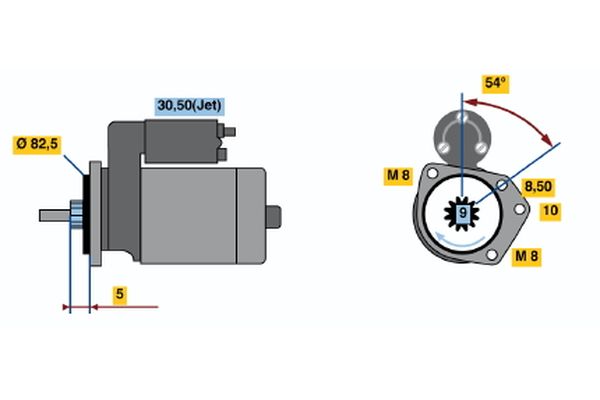

Flange Diameter [mm] :
82.5
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
1.8
Starter Type :
Non self-supporting
Thread Size 1 :
M8x1.25
Thread Size 2 :
M8x1.25
Bore Diameter [mm] :
8.5
Bore Ø 4 [mm] :
10
Length [mm] :
229
Position/Degree :
rechts
Mounting Angle [degrees] :
54
Mounting bore angle measurement [degree] :
54
Engine Code :
AKV
Engine Code :
ANW
Engine Code :
AKK
Engine Code :
AUD
- Vendor BOSCH
- SKU 0986016790
- APEC : ASM1575
- BORG & BECK : BST2373
- BORG & BECK : BST2652
- Carwood Group : BREF0320986016790
- Carwood Group : BREF032113750
- FEBI BILSTEIN : 101575
- HELLA : 8EA 011 610-551
- HELLA : 8EA 011 611-041
- LUCAS : LRS00891
- NAPA : NSM1575
- WAI : 30892N
- WAI : S132.205
- BOSCH : 1679
