Home / Car Parts / Electrical / Starter System / Starter Motors
Bosch 0986016990 Starter - 1
Bosch 0986016990 Starter - 2
Bosch 0986016990 Starter - 1
Bosch 0986016990 Starter - 2
BOSCH

Bosch 0986016990 Starter Motor

SKU: 0986016990
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£162.99 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
CALIFORNIA T4 Camper (7DJ, 7DK, 70J)
Description Cylinder Capacity Horse Power Year
2.5 2461 CCM 110 HP 05/1998 - 04/2002
2.4 D 2370 CCM 75 HP 05/1998 - 04/2002
TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 61 HP 07/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.5 2461 CCM 110 HP 11/1990 - 04/2003
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 08/1996 - 04/2003
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 05/1998 - 04/2003
2.8 2792 CCM 140 HP 05/1996 - 05/2000
1.9 D 1896 CCM 60 HP 09/1990 - 12/1995
TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)
Description Cylinder Capacity Horse Power Year
2.5 2461 CCM 110 HP 11/1990 - 04/2003
1.9 D 1896 CCM 61 HP 07/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 07/1990 - 04/1998
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 08/1996 - 04/2003
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.4 D 2370 CCM 75 HP 08/1997 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI 2461 CCM 88 HP 12/1998 - 04/2003
2.5 TDI 2461 CCM 151 HP 09/2000 - 04/2003
2.8 VR6 2792 CCM 204 HP 06/2000 - 04/2003
TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,
Description Cylinder Capacity Horse Power Year
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 Syncro 2461 CCM 110 HP 08/1992 - 04/2003
2.5 2461 CCM 110 HP 09/1990 - 06/2003
1.9 D 1896 CCM 60 HP 09/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.5 TDI 2461 CCM 102 HP 09/1995 - 04/2003
2.5 TDI Syncro 2461 CCM 102 HP 01/1996 - 04/2003
2.5 Syncro 2461 CCM 115 HP 07/1996 - 04/2003
2.5 2461 CCM 115 HP 08/1996 - 04/2003
2.8 VR 6 2792 CCM 140 HP 11/1995 - 04/2000
2.5 TDI 2461 CCM 88 HP 05/1998 - 04/2003
2.5 TDI 2461 CCM 151 HP 05/1998 - 04/2003

The Bosch 0986016990 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.8 kW rated power, 11 and 10 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

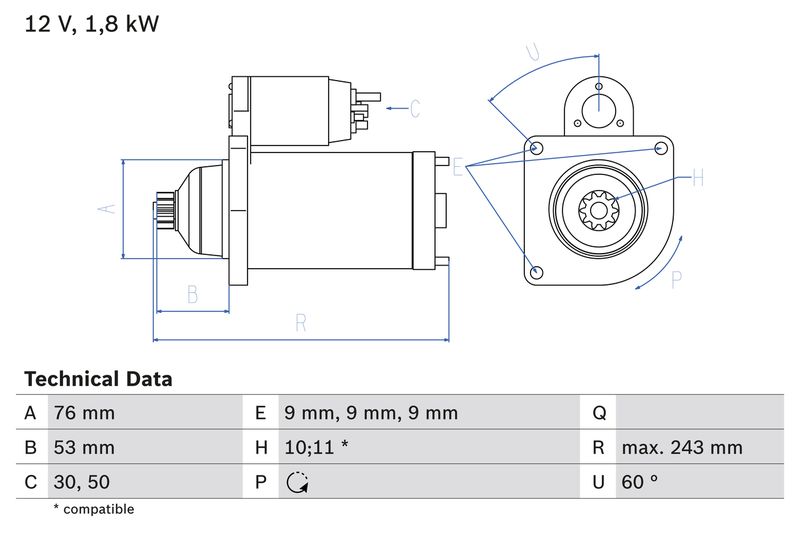

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.8
Number of mounting bores : 3
Number of threaded holes : 0
Number of Teeth : 11
Number of Teeth : 10
Clamp : 30,50
Flange Diameter [mm] : 76.2
Rotation Direction : Anticlockwise rotation
Pinion Rest Position [mm] : 52.5
Starter Type : Floating pinion
Bore Diameter [mm] : 9
Bore Diameter 2 [mm] : 9
Bore Ø 3 [mm] : 9
Length [mm] : 243
Position/Degree : links
Mounting Angle [degrees] : 60
Mounting bore angle measurement [degree] : 60
  • Vendor BOSCH
  • SKU 0986016990
  • Barcode 3165141082876
  • VW : 02B 911 023 D 02B 911 023 DX 02B 911 023 J 02B 911 023 L 02B 911 023 LX 02B 911 023 N 02B 911 023 NX
  • APEC : ASM1567
  • BORG & BECK : BST2148
  • BORG & BECK : BST2173
  • BOSCH : 0 001 125 031
  • BOSCH : 1 986 S00 808
  • Carwood Group : BREF0320986016990
  • Carwood Group : BREF032113387
  • Carwood Group : BREF0321986S00808
  • DENSO : DSN3016
  • FEBI BILSTEIN : 193167
  • HELLA : 8EA 011 611-051
  • LUCAS : LRT00133
  • NAPA : NSM1567
  • VALEO : 438077
  • WAI : 17750N
  • WAI : S132.191
  • BOSCH : 1699
