Bosch 0986017030 Starter Motor
Your selected vehicle
Regular price
£117.62
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

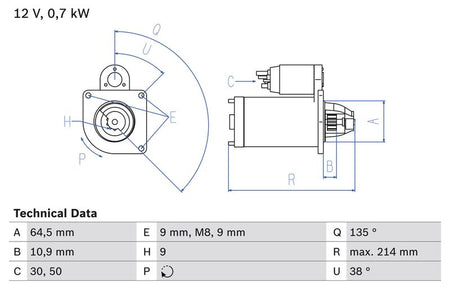

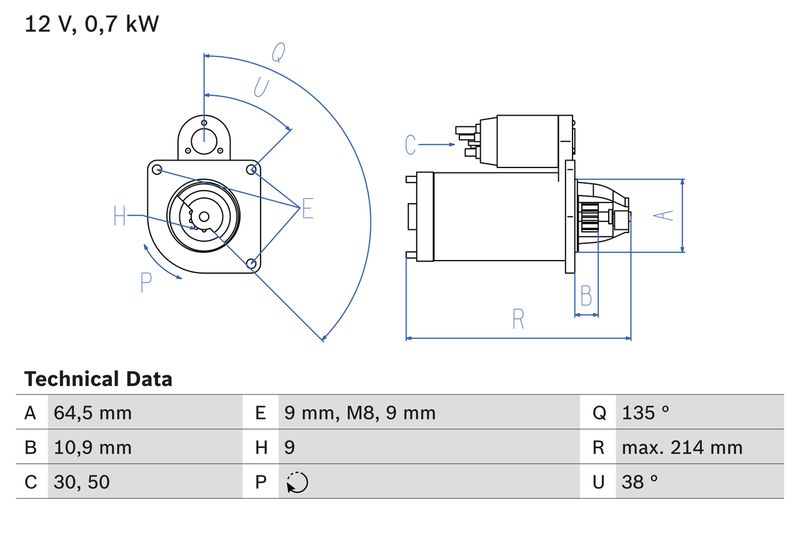

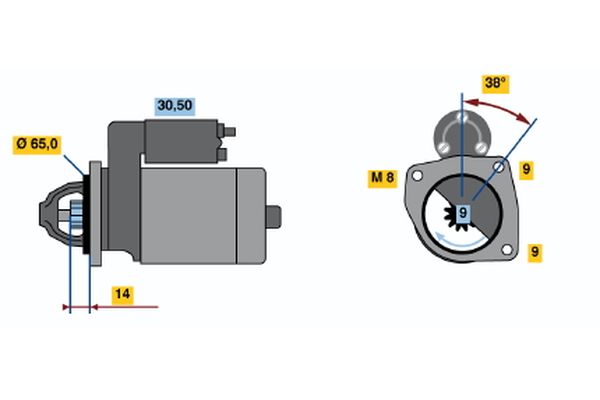

The Bosch 0986017030 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 0.7 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
0.7
Number of mounting bores :
2
Number of threaded holes :
1
Number of Teeth :
9
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
64.5
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
10.9
Starter Type :
Self-supporting
Thread Size 1 :
M8x1.25
Bore Diameter [mm] :
9
Bore Ø 3 [mm] :
9
Length [mm] :
214
Position/Degree :
rechts
Mounting Angle [degrees] :
38
Jaw opening angle measurement [Degree] :
135
Mounting bore angle measurement [degree] :
38
- Vendor BOSCH
- SKU 0986017030
- BOSCH : 1 986 S01 020
- Carwood Group : BREF0320986017030
- Carwood Group : BREF032111422
- Carwood Group : BREF0321986S01020
- DENSO : DSN961
- FEBI BILSTEIN : 101582
- HELLA : 8EA 012 526-931
- LUCAS : LRS02095
- VALEO : 432643
- VALEO : 455553
- WAI : 30989N
- BOSCH : 1703
