Bosch 0986017440 Starter - 1
Bosch 0986017440 Starter - 1
BOSCH

Bosch 0986017440 Starter Motor

SKU: 0986017440
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£193.98 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
90 I (LDV)
Description Cylinder Capacity Horse Power Year
3.5 4x4 3528 CCM 116 HP 06/1984 - 07/1990
110/127 (LDH)
Description Cylinder Capacity Horse Power Year
3.5 4x4 3528 CCM 133 HP 09/1983 - 07/1990
3.5 4x4 3528 CCM 136 HP 01/1985 - 07/1990
3.5 4x4 3528 CCM 116 HP 01/1984 - 09/1990
DEFENDER Station Wagon (L316, L315)
Description Cylinder Capacity Horse Power Year
3.9 V8 4x4 (L316) 3947 CCM 185 HP 11/1998 - 02/2016
3.5 4x4 3528 CCM 117 HP 09/1990 - 08/1993
3.5 4x4 3528 CCM 136 HP 09/1990 - 07/1994
DEFENDER Cabrio (L316)
Description Cylinder Capacity Horse Power Year
3.9 4x4 3947 CCM 182 HP 04/1998 - 09/2000
3.5 4x4 3528 CCM 117 HP 09/1990 - 08/1993
DEFENDER Pick Up (L316)
Description Cylinder Capacity Horse Power Year
4.0 4x4 3947 CCM 182 HP 04/1998 - 09/2000
DISCOVERY I (LJ)
Description Cylinder Capacity Horse Power Year
3.5 4x4 (SALLJG) 3531 CCM 154 HP 06/1989 - 06/1994
4.0 4x4 3947 CCM 182 HP 09/1993 - 10/1998
3.5 4x4 3531 CCM 166 HP 06/1989 - 06/1994
4.0 4x4 3947 CCM 185 HP 09/1993 - 10/1998
DISCOVERY Mk II (L318)
Description Cylinder Capacity Horse Power Year
4.0 V8 4x4 3947 CCM 185 HP 11/1998 - 06/2004
RANGE ROVER
Description Cylinder Capacity Horse Power Year
3.5 Vogue 4x4 3528 CCM 126 HP 08/1981 - 09/1990
3.5 4x4 3528 CCM 146 HP 01/1987 - 09/1990
3.5 Vogue 4x4 3528 CCM 163 HP 10/1985 - 09/1990
3.9 Cat 4x4 3947 CCM 173 HP 11/1988 - 07/1994
3.9 Vogue SEI 4x4 3947 CCM 182 HP 11/1988 - 07/1994
4.3 Vogue LSE 4x4 4275 CCM 203 HP 09/1992 - 07/1994
3.5 4x4 3528 CCM 132 HP 07/1970 - 08/1981
3.5 4x4 3528 CCM 131 HP 10/1969 - 08/1991
3.9 4x4 3947 CCM 185 HP 10/1989 - 12/1994
3.9 4x4 3947 CCM 182 HP 11/1988 - 12/1992
RANGE ROVER Mk II (P38A)
Description Cylinder Capacity Horse Power Year
3.9 4x4 3947 CCM 190 HP 07/1994 - 03/2002
4.6 4x4 4553 CCM 224 HP 07/1994 - 03/2002
4.0 4x4 3947 CCM 185 HP 01/1995 - 03/2002
4.6 4x4 4554 CCM 218 HP 06/1998 - 03/2002
4.6 4x4 4554 CCM 228 HP 09/1995 - 03/2002

The Bosch 0986017440 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

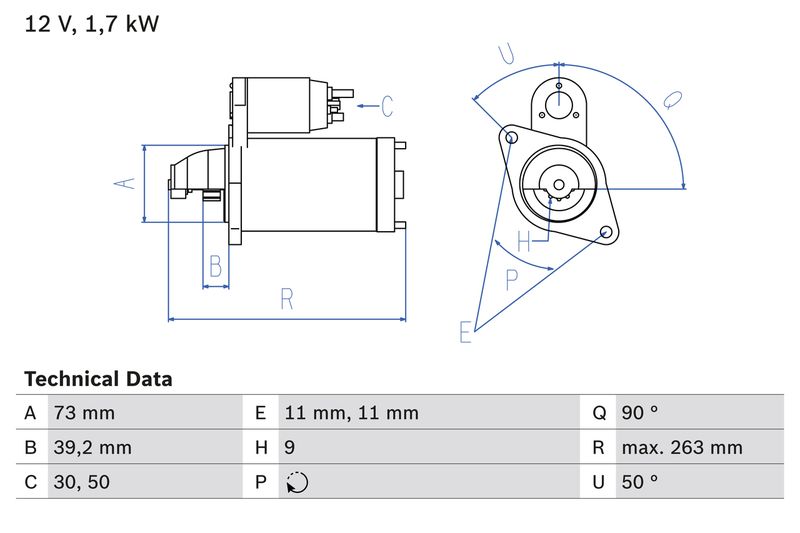

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.7
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 9
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 73
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 39.2
Starter Type : Self-supporting
Bore Diameter [mm] : 11
Bore Diameter 2 [mm] : 11
Length [mm] : 263
Position/Degree : links
Mounting Angle [degrees] : 50
Jaw opening angle measurement [Degree] : 90
Mounting bore angle measurement [degree] : 50
Engine Code : 15G
Construction Year to : 08.1990
Construction Year from : 11.1983
  • Vendor BOSCH
  • SKU 0986017440
  • Barcode 3165141163636
  • ROVER : ERR 6087 NAD 10038 NAD 1011 90 NAD 1014 90 RTC 6061N
  • LAND ROVER : NAD10038 NAD101490
  • APEC : ASM1090
  • BOSCH : 0 001 109 040
  • BOSCH : 1 986 S00 723
  • Carwood Group : BREF0320986017440
  • Carwood Group : BREF032111865
  • Carwood Group : BREF0321986S00723
  • FEBI BILSTEIN : 193422
  • LUCAS : LRT00169
  • MAHLE : MS 172
  • NAPA : NSM1090
  • NAPA : NSM1291
  • VALEO : 458566
  • WAI : 17792N
  • WAI : S132.670
  • BOSCH : 1744
