Home / Car Parts / Electrical / Starter System / Starter Motors
Bosch 0986017940 Starter - 1
Bosch 0986017940 Starter - 2
Bosch 0986017940 Starter - 1
Bosch 0986017940 Starter - 2
BOSCH

Bosch 0986017940 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986017940

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£163.09 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SEAT
AROSA (6H1)
Description Cylinder Capacity Horse Power Year
1.4 1389 CCM 60 HP 05/1997 - 06/2004
CORDOBA (6L2)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 75 HP 09/2002 - 12/2007
IBIZA Mk III (6L1)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 75 HP 02/2002 - 12/2007
SKODA
FABIA I (6Y2)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 75 HP 12/1999 - 03/2008
FABIA I Saloon (6Y3)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 75 HP 10/1999 - 12/2007
FABIA I Combi (6Y5)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 75 HP 05/2000 - 12/2007
VW
LUPO I (6X1, 6E1)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 75 HP 09/1998 - 07/2005
1.4 1390 CCM 60 HP 10/2000 - 07/2005
POLO III (6N1)
Description Cylinder Capacity Horse Power Year
75 1.6 1598 CCM 75 HP 10/1994 - 10/1999
55 1.4 1390 CCM 55 HP 08/1995 - 10/1999
60 1.4 1390 CCM 60 HP 07/1995 - 10/1999
120 1.6 16V GTI 1598 CCM 120 HP 09/1998 - 10/1999
POLO (6N2)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 75 HP 10/1999 - 09/2001
1.6 16V GTI 1598 CCM 125 HP 10/1999 - 09/2001
1.4 1390 CCM 60 HP 10/1999 - 09/2001
1.4 1390 CCM 54 HP 10/1999 - 09/2001
POLO IV (9N_, 9A_)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 75 HP 10/2001 - 05/2008
POLO IV Saloon (9A4, 9A2, 9N2, 9A6)
Description Cylinder Capacity Horse Power Year
1.4 1390 CCM 75 HP 11/2002 - 04/2012

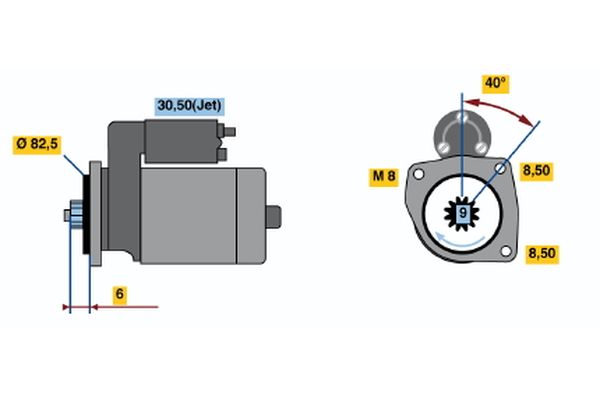

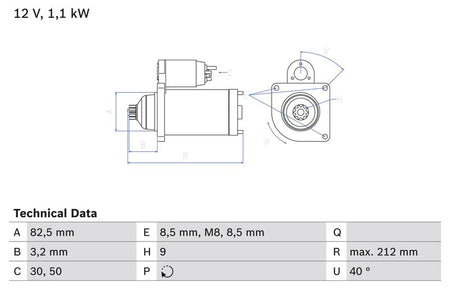

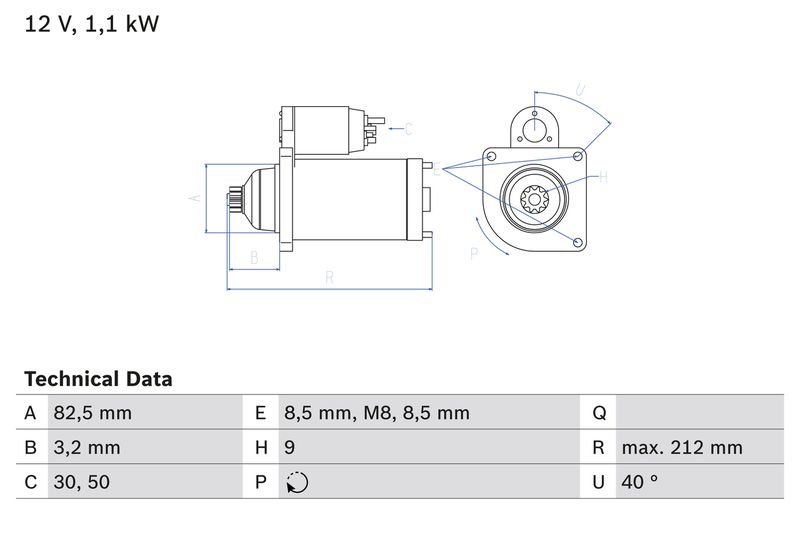

The Bosch 0986017940 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.1 kW rated power, Floating pinion starter type, and automatic Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.1
Number of mounting bores : 2
Number of threaded holes : 1
Number of Teeth : 9
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 82.5
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 3.2
Starter Type : Floating pinion
Thread Size 1 : M8x1.25
Bore Diameter [mm] : 8.5
Bore Ø 3 [mm] : 8.5
Length [mm] : 212
Position/Degree : rechts
Mounting Angle [degrees] : 40
Mounting bore angle measurement [degree] : 40
Engine Code : BBY
Construction Year to : 04.2004
Transmission Type : Automatic Transmission
Engine Code : BKY
Construction Year from : 05.2004
Construction Year to : 10.2004
Vehicle Identification Number (VIN) to : 6L..5D009 015
Vehicle Identification Number (VIN) to : 6L..5R090 178
  • Vendor BOSCH
  • SKU 0986017940
  • Barcode 3165141229783
  • SEAT : 001 911 023 C 001911023
  • SKODA : 001 911 023 C 001911023
  • VW : 001 911 023 C 001 911 023 X 001911023
  • APEC : ASM1483
  • BORG & BECK : BST2191
  • BOSCH : 0 001 121 030
  • BOSCH : 1 986 S01 545
  • Carwood Group : BREF0320001121030
  • Carwood Group : BREF0320986017940
  • Carwood Group : BREF032111823
  • Carwood Group : BREF0321986S01545
  • DENSO : DSN3093
  • FEBI BILSTEIN : 101577
  • HELLA : 8EA 012 527-221
  • LUCAS : LRT00173
  • NAPA : NSM1483
  • VALEO : 438403
  • VALEO : 458467
  • WAI : 31173N
  • WAI : S132.186
  • BOSCH : 1794
