Bosch 0986018151 Starter Motor
Your selected vehicle
Regular price
£262.23
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986018151 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.8 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

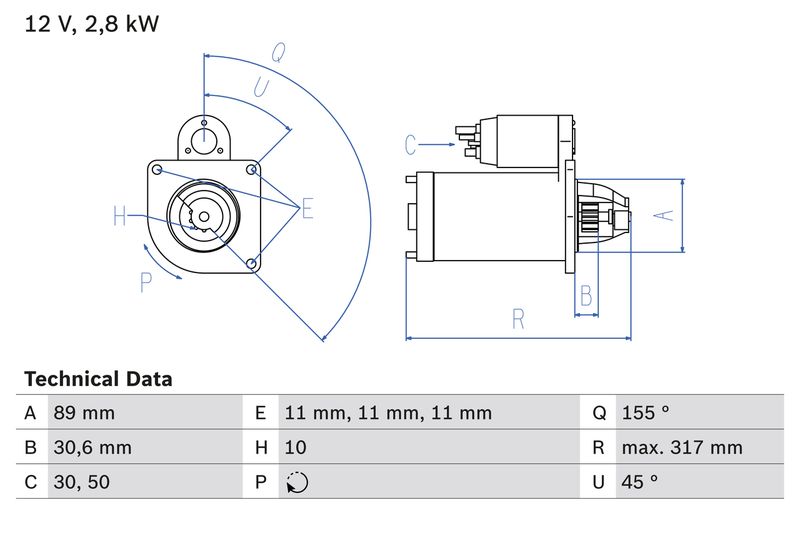

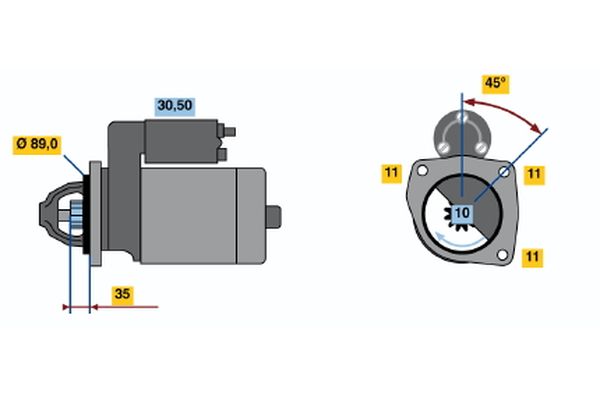

Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.8
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
10
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
30.6
Starter Type :
Self-supporting
Bore Diameter [mm] :
11
Bore Diameter 2 [mm] :
11
Bore Ø 3 [mm] :
11
Length [mm] :
317
Position/Degree :
rechts
Mounting Angle [degrees] :
45
Jaw opening angle measurement [Degree] :
155
Mounting bore angle measurement [degree] :
45
- Vendor BOSCH
- SKU 0986018151
- DAF : 1516799R
- HANOMAG : 1446 802 M91 1447732R1 3581576M01A 3581576M02A 3581576M1 3581576R1 3930508R1
- PERKINS : 1447732R1 2873 A 030 2873 B 056 2873 B 071
- JCB : 71429300R
- BOSCH : 1 986 S10 066
- Carwood Group : BREF0320986018151
- Carwood Group : BREF032110615
- Carwood Group : BREF0321986S10066
- HELLA : 8EA 015 642-961
- LUCAS : LRS00968
- MAHLE : 11131780
- MAHLE : MS 21
- MAHLE : MS 289
- MAHLE : MS 295
- MAHLE : MS 347
- WAI : 17649N
- WAI : 31067N-IK
- BOSCH : 1815
