Bosch 0986018170 Starter Motor
Your selected vehicle
Regular price
£141.43
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

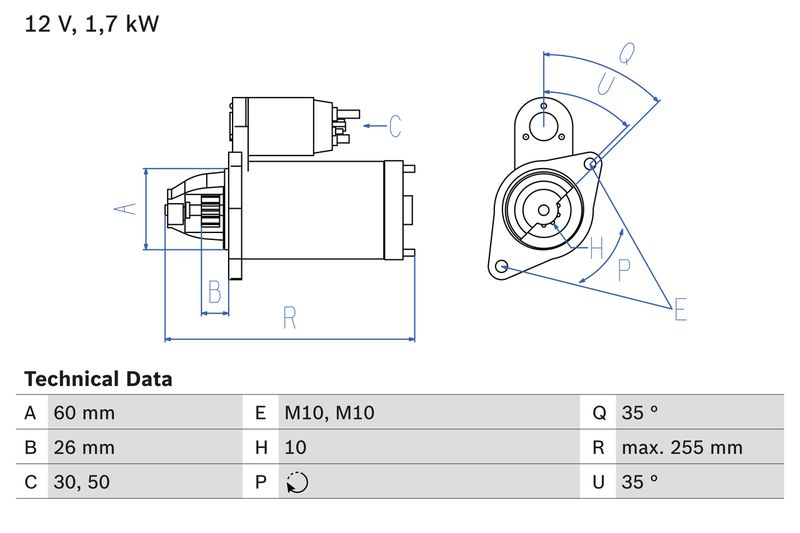

The Bosch 0986018170 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.7
Number of mounting bores :
0
Number of threaded holes :
2
Number of Teeth :
10
Clamp :
30,50
Flange Diameter [mm] :
60
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
26
Starter Type :
Self-supporting
Thread Size :
M10x1.5
Thread Size 1 :
M10x1.5
Length [mm] :
255
Position/Degree :
rechts
Mounting Angle [degrees] :
35
Jaw opening angle measurement [Degree] :
35
Mounting bore angle measurement [degree] :
35
- Vendor BOSCH
- SKU 0986018170
- MERCEDES-BENZ : A 005 151 01 01 A 005 151 01 01 80 005 151 01 01 005 151 01 01 80
- APEC : ASM1396
- BORG & BECK : BST2043
- BOSCH : 0 001 115 006
- BOSCH : 1 986 S00 775
- Carwood Group : BREF0320986018170
- Carwood Group : BREF032114178
- Carwood Group : BREF0321986S00775
- HELLA : 8EA 011 613-001
- LUCAS : LRS01585
- NAPA : NSM1396
- VALEO : 445622
- WAI : 17966N
- WAI : S133.387
- BOSCH : 1817
