Bosch 0986018370 Starter Motor
Your selected vehicle
Regular price
£383.17
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

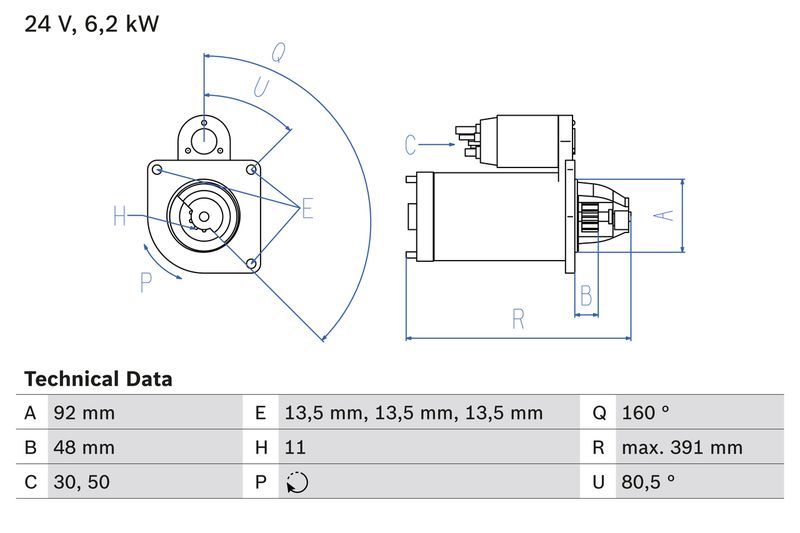

The Bosch 0986018370 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 6.2 kW rated power, 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
6.2
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
11
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
92
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
48
Starter Type :
Self-supporting
Bore Diameter [mm] :
13.5
Bore Diameter 2 [mm] :
13.5
Bore Ø 3 [mm] :
13.5
Length [mm] :
391
Position/Degree :
rechts
Mounting Angle [degrees] :
80
Jaw opening angle measurement [Degree] :
160
Mounting bore angle measurement [degree] :
80
- Vendor BOSCH
- SKU 0986018370
- MERCEDES-BENZ : A 005 151 50 01 A 005 151 50 01 80 005 151 50 01 005 151 50 01 80
- BORG & BECK : BST32049
- BORG & BECK : BST32772
- BOSCH : 0 001 330 050
- BOSCH : 1 986 S10 097
- Carwood Group : BREF0320986018370
- Carwood Group : BREF0320986022980
- Carwood Group : BREF032113609
- Carwood Group : BREF0321986S10097
- FEBI BILSTEIN : 48977
- HELLA : 8EA 012 586-391
- HELLA : 8EA 738 038-001
- LUCAS : LRS01961
- MAHLE : MS 405
- MAHLE : MS 558
- VALEO : 203032
- VALEO : 438242
- VALEO : 458198
- WAI : 30111N
- WAI : 30111N-DR
- BOSCH : 1837
