Bosch 0986018380 Starter - 1
Bosch 0986018380 Starter - 1
BOSCH

Bosch 0986018380 Starter Motor

SKU: 0986018380
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£179.85 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
LT Mk II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 102 HP 06/1996 - 08/1999
2.5 TDI 2461 CCM 90 HP 05/1999 - 07/2006
2.5 TDI 2461 CCM 83 HP 05/2001 - 07/2006
2.5 TDI 2461 CCM 95 HP 05/2001 - 07/2006
LT Mk II Bus (2DB, 2DE, 2DK)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 102 HP 05/1996 - 08/1999
2.5 TDI 2461 CCM 90 HP 05/1999 - 07/2006
2.5 TDI 2461 CCM 83 HP 05/2001 - 07/2006
2.5 TDI 2461 CCM 95 HP 05/2001 - 07/2006
LT Mk II Van (2DA, 2DD, 2DH)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 102 HP 05/1996 - 08/1999
2.5 TDI 2461 CCM 90 HP 05/1999 - 07/2006
2.5 TDI 2461 CCM 83 HP 05/2001 - 07/2006
2.5 TDI 2461 CCM 95 HP 05/2001 - 07/2006

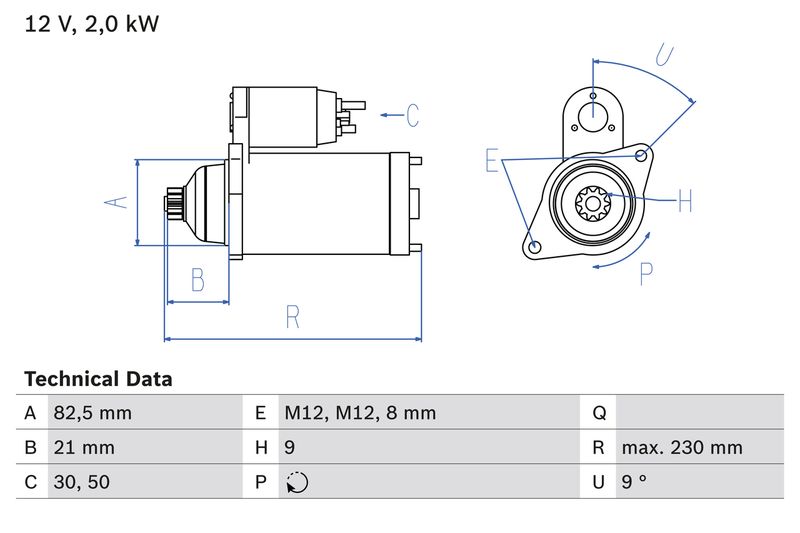

The Bosch 0986018380 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2 kW rated power, 9 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2
Number of mounting bores : 1
Number of threaded holes : 2
Number of Teeth : 9
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 82.5
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 21
Starter Type : Floating pinion
Thread Size : M12
Thread Size 1 : M12x1.75
Bore Ø 3 [mm] : 8
Length [mm] : 230
Position/Degree : rechts
Mounting Angle [degrees] : 9
Mounting bore angle measurement [degree] : 9
  • Vendor BOSCH
  • SKU 0986018380
  • Barcode 3165143174647
  • VW : 069 911 023 E 069 911 023 L 069 911 023 LX
  • APEC : ASM1315
  • BOSCH : 0 001 125 511
  • BOSCH : 1 986 S00 818
  • Carwood Group : BREF0320986018380
  • Carwood Group : BREF032112221
  • Carwood Group : BREF0321986S00818
  • HELLA : 8EA 012 527-741
  • LUCAS : LRS01389
  • NAPA : NSM1315
  • WAI : 32389N
  • WAI : S132.164
  • BOSCH : 1838
