Bosch 0986018570 Starter - 1
Bosch 0986018570 Starter - 2
Bosch 0986018570 Starter - 1
Bosch 0986018570 Starter - 2
BOSCH

Bosch 0986018570 Starter Motor

SKU: 0986018570
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£177.14 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W168)
Description Cylinder Capacity Horse Power Year
A 140 (168.031, 168.131) 1397 CCM 82 HP 07/1997 - 08/2004
A 160 (168.033, 168.133) 1598 CCM 102 HP 07/1997 - 08/2004
A 190 (168.032, 168.132) 1898 CCM 125 HP 03/1999 - 08/2004
A 140 (168.031, 168.131) 1598 CCM 82 HP 01/2001 - 08/2004
A 210 (168.035, 168.135) 2084 CCM 140 HP 12/2001 - 08/2004
A-CLASS (W169)
Description Cylinder Capacity Horse Power Year
A 170 (169.032, 169.332) 1699 CCM 116 HP 09/2004 - 06/2012
A 150 (169.031, 169.331) 1498 CCM 95 HP 09/2004 - 06/2012
A 200 (169.033, 169.333) 2034 CCM 136 HP 09/2004 - 06/2012
A 200 TURBO (169.034, 169.334) 2034 CCM 193 HP 09/2005 - 06/2012
A 160 (169.031, 169.331) 1498 CCM 95 HP 04/2009 - 06/2012
A 180 (169.032, 169.332) 1699 CCM 116 HP 04/2009 - 06/2012
B-CLASS Sports Tourer (W245)
Description Cylinder Capacity Horse Power Year
B 170 (245.232) 1699 CCM 116 HP 03/2005 - 11/2011
B 200 (245.233) 2034 CCM 136 HP 03/2005 - 11/2011
B 200 TURBO (245.234) 2034 CCM 193 HP 03/2005 - 11/2011
B 150 (245.231) 1498 CCM 95 HP 03/2005 - 11/2011
B 170 NGT (245.233) 2034 CCM 116 HP 04/2008 - 11/2011
B 180 NGT (245.233) 2034 CCM 116 HP 04/2008 - 11/2011
B 160 (245.231) 1498 CCM 95 HP 04/2009 - 11/2011
B 180 (245.232) 1699 CCM 116 HP 04/2009 - 11/2011
VANEO (414)
Description Cylinder Capacity Horse Power Year
1.6 (414.700) 1598 CCM 102 HP 02/2002 - 07/2005
1.6 (414.700) 1598 CCM 82 HP 02/2002 - 07/2005
1.9 (414.700) 1898 CCM 125 HP 02/2002 - 07/2005

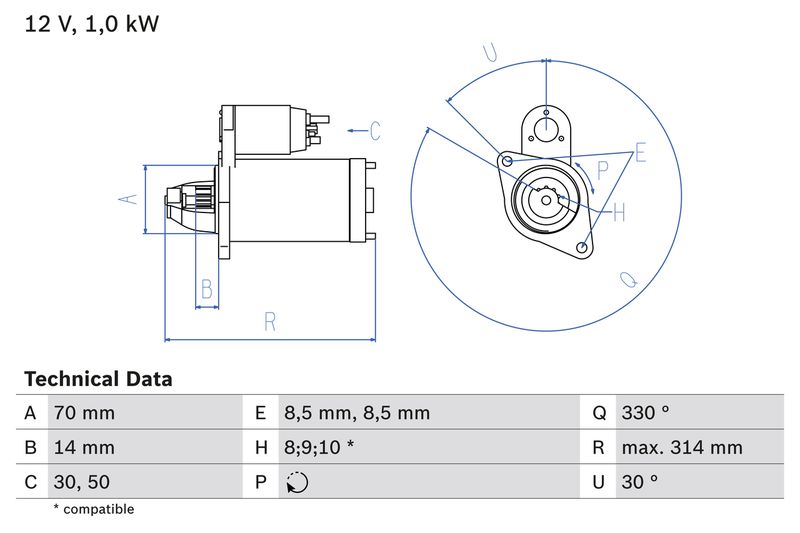

The Bosch 0986018570 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1 kW rated power, 8, 10, and 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 8
Number of Teeth : 10
Number of Teeth : 9
Clamp : 50
Clamp : 30

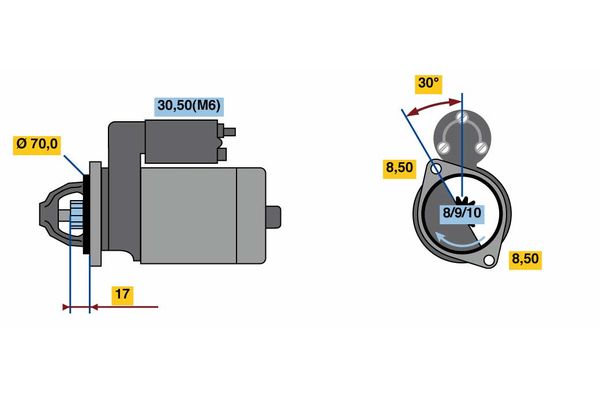

Flange Diameter [mm] : 70
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 14
Starter Type : Self-supporting
Bore Diameter [mm] : 8.5
Bore Diameter 2 [mm] : 8.5
Length [mm] : 314
Position/Degree : links
Mounting Angle [degrees] : 30
Jaw opening angle measurement [Degree] : 330
Mounting bore angle measurement [degree] : 30
Construction Year from : 10.1997
for OE number : A 006 151 03 01
for OE number : A 005 151 21 01
  • Vendor BOSCH
  • SKU 0986018570
  • Barcode 4047023207258
  • APEC : ASM1369
  • BORG & BECK : BST2266
  • BOSCH : 1 986 S01 009
  • Carwood Group : BREF0320986018570
  • Carwood Group : BREF032111931
  • Carwood Group : BREF0321986S01009
  • DENSO : DSN3036
  • FEBI BILSTEIN : 101586
  • HELLA : 8EA 012 527-301
  • HELLA : 8EA 737 575-001
  • LUCAS : LRT00205
  • NAPA : NSM1369
  • VALEO : 438027
  • VALEO : 438079
  • WAI : 31204N
  • WAI : 31205N
  • WAI : S133.099
  • BOSCH : 1857
