Home / Car Parts / Electrical / Starter System / Starter Motors
Bosch 0986018751 Starter - 1
Bosch 0986018751 Starter - 1
BOSCH

Bosch 0986018751 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986018751

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£226.88 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA
DYNA 100 Platform/Chassis (LY1_, YY1_)
Description Cylinder Capacity Horse Power Year
2.4 D (LY100_, LY100R) 2446 CCM 73 HP 05/1995 - 07/2001
DYNA 150 Platform/Chassis (LY_)
Description Cylinder Capacity Horse Power Year
2.8 D (LY211) 2779 CCM 83 HP 05/1995 - 08/1998
3.0 D (LY102, LY112, LY122) 2986 CCM 88 HP 09/1998 - 07/2001
HIACE IV Van (_H1_)
Description Cylinder Capacity Horse Power Year
2.4 D (LH112) 2446 CCM 75 HP 08/1989 - 08/2004
2.4 D 4WD (LH108, LH118) 2446 CCM 75 HP 08/1989 - 07/1999
2.4 D (LH102, LH104, LH112) 2446 CCM 78 HP 09/1989 - 08/1995
2.4 D 4WD 2446 CCM 78 HP 09/1989 - 08/1995
2.8 D (LH105, LH103, LH113) 2779 CCM 83 HP 08/1989 - 08/2000
HIACE IV Bus (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.4 D (LXH12, LXH22) 2446 CCM 79 HP 08/1995 - 08/2001
2.4 TD (LXH12, LXH22) 2446 CCM 90 HP 08/1995 - 08/2001
2.4 TD 4WD (LXH18, LXH28) 2446 CCM 90 HP 08/1995 - 08/2001
2.4 D (LXH12) 2446 CCM 75 HP 08/1995 - 08/2001
HIACE IV Van (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.4 D (LXH12, LXH22) 2446 CCM 79 HP 08/1995 - 08/2001
2.4 TD (LXH12, LXH22) 2446 CCM 90 HP 08/1995 - 08/2001
2.4 TD 4WD (LXH18, LXH28) 2446 CCM 90 HP 08/1995 - 08/2001
2.4 D (LXH12, LXH22) 2446 CCM 75 HP 08/1995 - 08/2001
HILUX V Pickup (_N8_, _N9_, _N10_, _N11_)
Description Cylinder Capacity Horse Power Year
2.4 D (LN85, LN90) 2446 CCM 80 HP 10/1991 - 07/1997
2.4 D 4WD (LN110_, LN110R) 2446 CCM 79 HP 01/1994 - 12/1997
2.4 D (LN90_, LN90R) 2446 CCM 79 HP 03/1995 - 08/1997
2.4 D (LN85_, LN110, LN90) 2446 CCM 83 HP 09/1988 - 08/1997
2.4 D 4WD (LN105, LN110) 2446 CCM 83 HP 09/1988 - 08/1997
2.4 D 4WD 2446 CCM 82 HP 04/1992 - 08/1997
2.4 D 4WD (LN105_, LN108_, LN110_) 2446 CCM 75 HP 09/1994 - 07/1997
HILUX VI Pickup (_N1_)
Description Cylinder Capacity Horse Power Year
2.4 TD 4WD (LN165_, LN170_, LN190_, LN165, LN165H,... 2446 CCM 90 HP 08/1998 - 01/2002
2.4 D (LN150, LN145) 2446 CCM 75 HP 08/1997 - 04/2005
2.4 TD (LN190) 2446 CCM 90 HP 08/1997 - 07/2001
2.4 D (LN145, LN150) 2446 CCM 79 HP 08/1997 - 07/2005
LAND CRUISER (_J7_, _JL7_)
Description Cylinder Capacity Horse Power Year
2.4 TD (LJ70) 2446 CCM 90 HP 01/1990 - 05/1993
LAND CRUISER Hardtop (_J7_)
Description Cylinder Capacity Horse Power Year
2.4 TD (LJ70_, LJ70R) 2446 CCM 90 HP 07/1990 - 05/1996
REGIUS IV MPV (_H1_)
Description Cylinder Capacity Horse Power Year
2.4 D (LH102) 2446 CCM 75 HP 08/1989 - 08/1995
2.4 D (LH100, LH110, LH104, LH114) 2446 CCM 78 HP 08/1989 - 12/2004

The Bosch 0986018751 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.7 kW rated power, 11 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

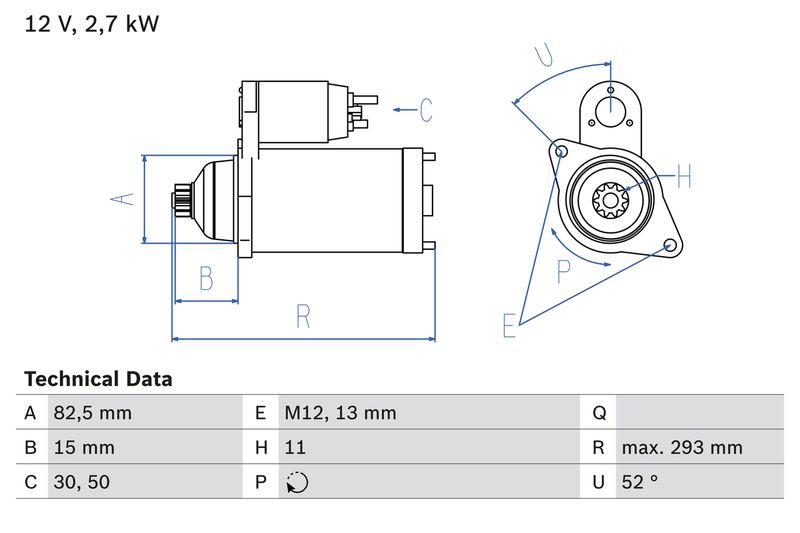

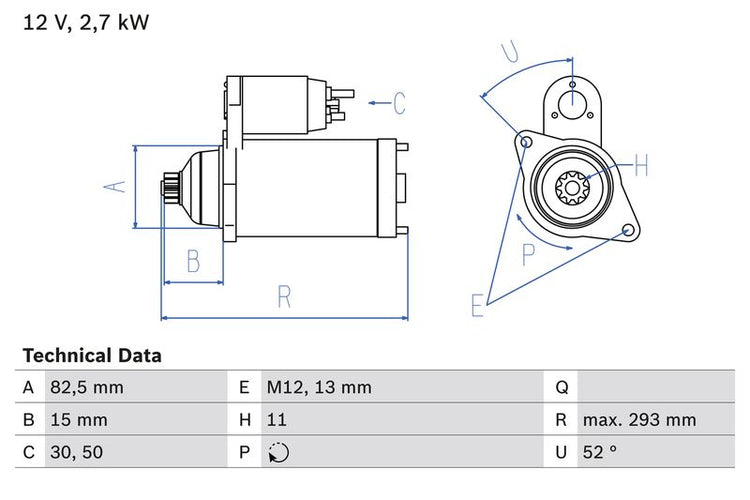

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.7
Number of mounting bores : 1
Number of threaded holes : 1
Number of Teeth : 11
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 82.5
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 15
Starter Type : Floating pinion
Thread Size : M12
Bore Diameter 2 [mm] : 13
Length [mm] : 293
Position/Degree : links
Mounting Angle [degrees] : 52
Mounting bore angle measurement [degree] : 52
Construction Year from : 08.1997
  • Vendor BOSCH
  • SKU 0986018751
  • Barcode 3165143217122
  • TOYOTA : 28100 54300 28100 54320 28100 54370 28100 54390 28100 54430 28100 54470 28100 54480
  • APEC : ASM1632
  • BLUE PRINT : ADT312513
  • BORG & BECK : BST2365
  • Carwood Group : BREF0320986018751
  • Carwood Group : BREF032110708
  • Carwood Group : BREF032113936
  • FEBI BILSTEIN : 193930
  • HELLA : 8EA 012 527-241
  • LUCAS : LRS00507
  • NAPA : NSM1632
  • WAI : 16830N
  • WAI : S130.684
  • BOSCH : 1875
