Bosch 0986018780 Starter Motor
Your selected vehicle
Regular price
£420.82
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

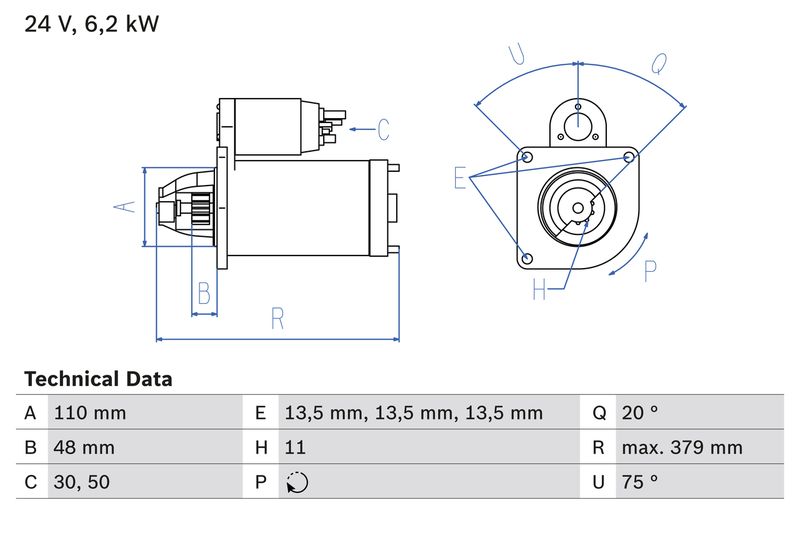

The Bosch 0986018780 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 6.2 kW rated power, 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
6.2
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
11
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
110
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
48
Starter Type :
Self-supporting
Bore Diameter [mm] :
13.5
Bore Diameter 2 [mm] :
13.5
Bore Ø 3 [mm] :
13.5
Length [mm] :
379
Position/Degree :
links
Mounting Angle [degrees] :
75
Jaw opening angle measurement [Degree] :
20
Mounting bore angle measurement [degree] :
75
- Vendor BOSCH
- SKU 0986018780
- DAF : 1317220
- BORG & BECK : BST32050
- BOSCH : 1 986 S10 099
- Carwood Group : BREF032112581
- Carwood Group : BREF0321986S10099
- FEBI BILSTEIN : 48978
- HELLA : 8EA 012 586-401
- LUCAS : LRS01938
- MAHLE : MS 462
- VALEO : 203030
- VALEO : 438233
- VALEO : 458175
- WAI : 30107N
- BOSCH : 1878
