Bosch 0986018910 Starter Motor

5.0/5 78 reviews
SKU: 0986018910

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
Regular price £217.75 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

VOLVO
S60 I (384)
Description Cylinder Capacity Horse Power Year
D5 2401 CCM 163 HP 01/2001 - 04/2010
2.4 D 2401 CCM 130 HP 05/2001 - 04/2010
D5 2401 CCM 185 HP 03/2005 - 04/2010
2.4 D 2400 CCM 126 HP 03/2005 - 04/2010
S80 I (184)
Description Cylinder Capacity Horse Power Year
D5 2401 CCM 163 HP 08/2001 - 07/2006
2.4 D 2401 CCM 131 HP 10/2001 - 07/2006
V70 Mk II (285)
Description Cylinder Capacity Horse Power Year
D5 2401 CCM 163 HP 01/2001 - 12/2008
2.4 D 2401 CCM 131 HP 07/2001 - 08/2007
D5 AWD 2401 CCM 163 HP 07/2002 - 08/2007
XC70 I Cross Country (295)
Description Cylinder Capacity Horse Power Year
D5 XC AWD 2401 CCM 163 HP 09/2002 - 08/2007
D5 AWD 2401 CCM 185 HP 12/2005 - 08/2007
XC90 I (275)
Description Cylinder Capacity Horse Power Year
D5 AWD 2400 CCM 200 HP 01/2011 - 12/2014
D5 AWD 2401 CCM 163 HP 10/2002 - 12/2006
D5 AWD 2401 CCM 185 HP 04/2005 - 12/2012
D3 / D5 2400 CCM 163 HP 04/2009 - 12/2014
D5 AWD 2400 CCM 163 HP 10/2007 - 12/2010

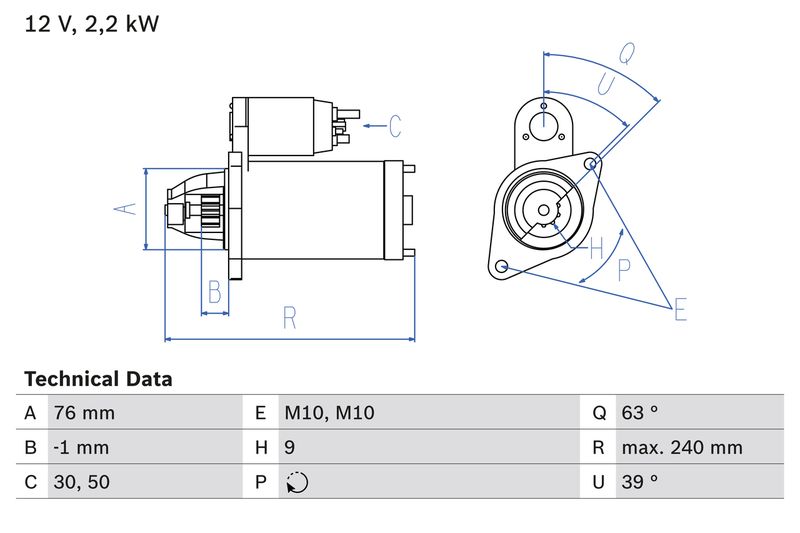

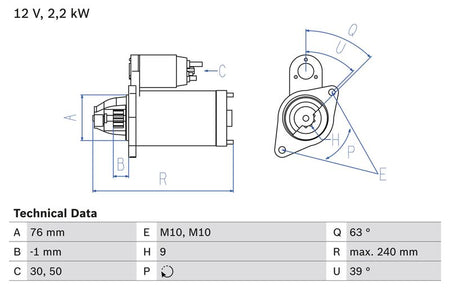

The Bosch 0986018910 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.2
Number of mounting bores : 1
Number of threaded holes : 2
Number of Teeth : 9
Clamp : 30,50
Flange Diameter [mm] : 76.2
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : -0.7
Starter Type : Self-supporting
Thread Size 1 : M10x1.5
Thread Size 2 : M10x1.5
Bore Diameter [mm] : 10
Length [mm] : 240
Position/Degree : rechts
Mounting Angle [degrees] : 39
Jaw opening angle measurement [Degree] : 63
Mounting bore angle measurement [degree] : 39
Construction Year to : 07.2009
Vehicle Identification Number (VIN) from : 61386
Vehicle Identification Number (VIN) to : 522428
Construction Year to : 07.2005
Construction Year to : 07.2006
  • Vendor BOSCH
  • SKU 0986018910
  • Barcode 3165143310816
  • VOLVO : 30658567 36050272 3803646 8602355 8602818 9496882
  • APEC : ASM1051
  • BORG & BECK : BST2155
  • BOSCH : 0 001 109 439
  • BOSCH : 1 986 S00 752
  • Carwood Group : BREF0320986018910
  • Carwood Group : BREF032113303
  • Carwood Group : BREF0321986S00752
  • DENSO : DSN3136
  • FEBI BILSTEIN : 193143
  • HELLA : 8EA 012 526-161
  • LUCAS : LRS01638
  • NAPA : NSM1051
  • VALEO : 438393
  • VALEO : 458732
  • WAI : 32638N
  • WAI : S135.342
  • BOSCH : 1891
