Home / Car Parts / Electrical / Starter System / Starter Motors
Bosch 0986018920 Starter - 1
Bosch 0986018920 Starter - 2
Bosch 0986018920 Starter - 1
Bosch 0986018920 Starter - 2
BOSCH

Bosch 0986018920 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986018920

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£172.25 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

AUDI
TT (8N3)
Description Cylinder Capacity Horse Power Year
1.8 T 1781 CCM 180 HP 10/1998 - 06/2006
1.8 T quattro 1781 CCM 180 HP 10/1998 - 06/2006
1.8 T quattro 1781 CCM 224 HP 10/1998 - 06/2006
3.2 VR6 quattro 3189 CCM 250 HP 07/2003 - 06/2006
1.8 T quattro 1781 CCM 245 HP 03/2005 - 06/2006
1.8 T quattro 1781 CCM 190 HP 09/2005 - 06/2006
TT Roadster (8N9)
Description Cylinder Capacity Horse Power Year
1.8 T 1781 CCM 180 HP 10/1999 - 06/2006
1.8 T quattro 1781 CCM 180 HP 02/2000 - 06/2006
1.8 T quattro 1781 CCM 224 HP 10/1999 - 06/2006
3.2 VR6 quattro 3189 CCM 250 HP 07/2003 - 06/2006
1.8 T quattro 1781 CCM 190 HP 09/2005 - 06/2006
SEAT
ALHAMBRA VAN (7V8, 7V9)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 116 HP 03/1996 - 03/2010
ALHAMBRA (7V8, 7V9)
Description Cylinder Capacity Horse Power Year
2.0 i 1984 CCM 115 HP 04/1996 - 03/2010
1.8 T 20V 1781 CCM 150 HP 10/1997 - 03/2010
LEON (1M1)
Description Cylinder Capacity Horse Power Year
1.8 T Cupra R 1781 CCM 209 HP 02/2002 - 06/2006
1.8 T Cupra R 1781 CCM 225 HP 07/2003 - 06/2006
VW
NEW BEETLE (9C1, 1C1)
Description Cylinder Capacity Horse Power Year
1.8 T 1781 CCM 150 HP 10/1999 - 09/2010
1.8 T 1781 CCM 180 HP 11/2001 - 06/2005
NEW BEETLE Convertible (1Y7)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 115 HP 09/2002 - 10/2010
1.8 T 1781 CCM 150 HP 01/2003 - 09/2010
SHARAN (7M8, 7M9, 7M6)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 115 HP 09/1995 - 03/2010
1.8 T 20V 1781 CCM 150 HP 09/1997 - 03/2010
2.0 LPG 1984 CCM 115 HP 04/2006 - 03/2010
SHARAN Box Body/MPV (7M_)
Description Cylinder Capacity Horse Power Year
2.0 (7M8, 7M9) 1984 CCM 116 HP 09/1996 - 07/2002

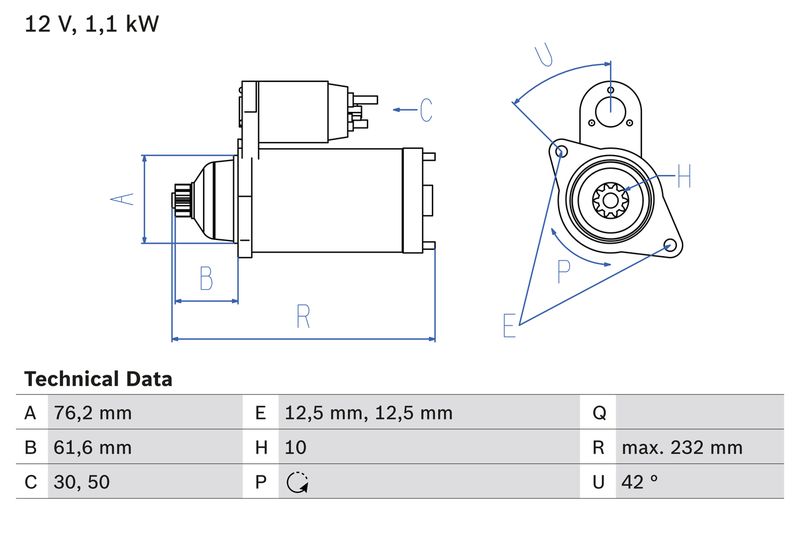

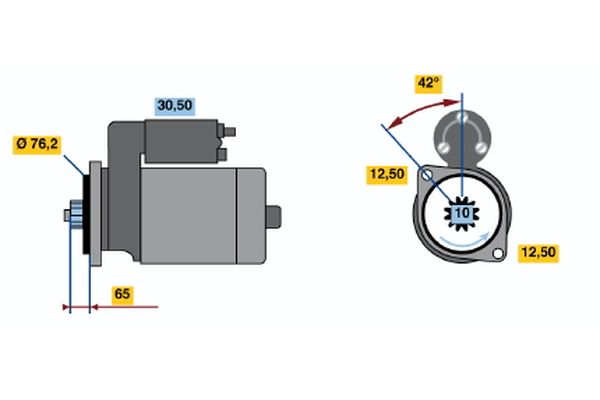

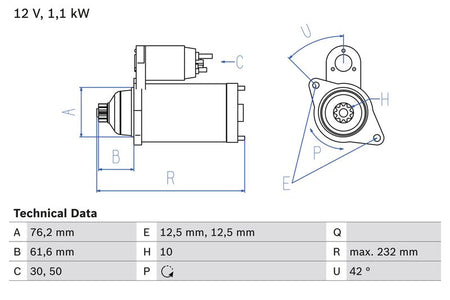

The Bosch 0986018920 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.1 kW rated power, 10 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.1
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 10
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 76.2
Rotation Direction : Anticlockwise rotation
Pinion Rest Position [mm] : 61.6
Starter Type : Floating pinion
Bore Diameter [mm] : 12.5
Bore Diameter 2 [mm] : 12.5
Length [mm] : 232
Position/Degree : links
Mounting Angle [degrees] : 42
Mounting bore angle measurement [degree] : 42
Engine Code : AWP
Engine Code : ATC
Construction Year from : 09.2000
for PR number : G1A
Engine Code : AJQ
Engine Code : ARY
Engine Code : AUQ
Construction Year from : 11.1999
Construction Year to : 08.2000
Construction Year from : 06.2001
Construction Year to : 05.2005
Vehicle Identification Number (VIN) from : 8N..1..045746
Construction Year from : 06.2005
  • Vendor BOSCH
  • SKU 0986018920
  • Barcode 3165143310786
  • AUDI : 02M911023
  • FORD : YM2111000EA
  • SEAT : 02M911023
  • VW : 02M 911 023 X 02M911023
  • APEC : ASM1484
  • BORG & BECK : BST2157
  • Carwood Group : BREF0320986018920
  • Carwood Group : BREF032114174
  • FEBI BILSTEIN : 188506
  • HELLA : 8EA 012 527-541
  • LUCAS : LRT00242
  • NAPA : NSM1484
  • WAI : 17919N
  • WAI : S132.331
  • BOSCH : 1892
