Bosch 0986018940 Starter Motor
Your selected vehicle
Regular price
£182.50
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

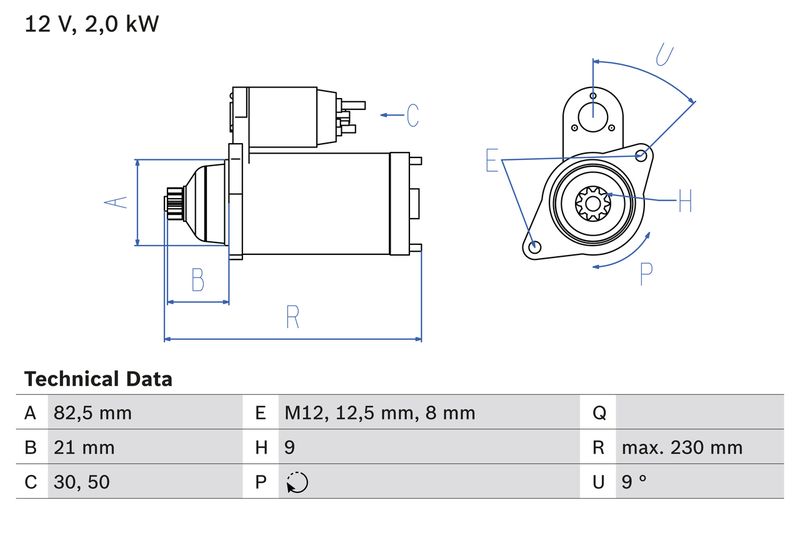

The Bosch 0986018940 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2 kW rated power, 9 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2
Number of mounting bores :
2
Number of threaded holes :
1
Number of Teeth :
9
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
82.5
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
21
Starter Type :
Floating pinion
Thread Size :
M12
Bore Diameter 2 [mm] :
12.5
Bore Ø 3 [mm] :
8
Length [mm] :
230
Position/Degree :
rechts
Mounting Angle [degrees] :
9
Mounting bore angle measurement [degree] :
9
- Vendor BOSCH
- SKU 0986018940
- APEC : ASM1024
- BOSCH : 0 001 125 517
- BOSCH : 1 986 S00 819
- Carwood Group : BREF0320986018940
- Carwood Group : BREF032112430
- Carwood Group : BREF0321986S00819
- FEBI BILSTEIN : 193397
- HELLA : 8EA 012 527-371
- LUCAS : LRS01540
- NAPA : NSM1024
- VALEO : 458538
- WAI : 32553N
- WAI : S132.355
- BOSCH : 1894
