Bosch 0986018990 Starter Motor
Your selected vehicle
Regular price
£251.89
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

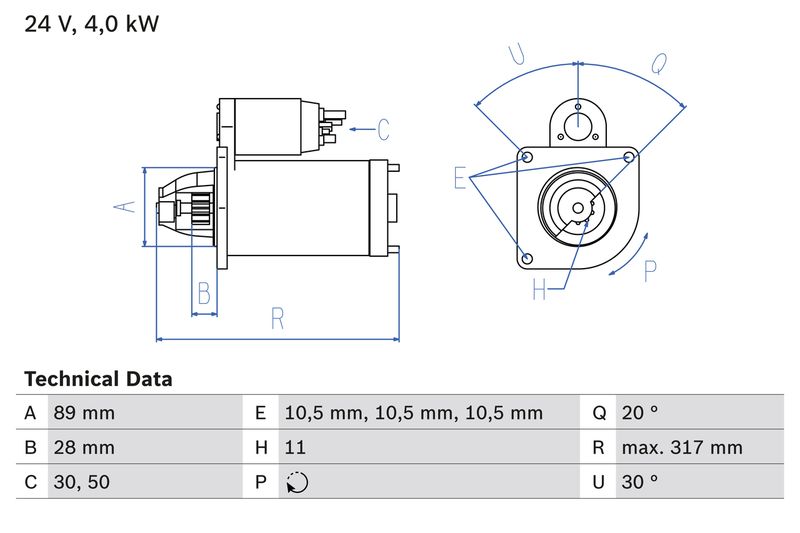

The Bosch 0986018990 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 4 kW rated power, 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
4
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
11
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
28
Starter Type :
Self-supporting
Bore Diameter [mm] :
10.5
Bore Diameter 2 [mm] :
10.5
Bore Ø 3 [mm] :
10.5
Length [mm] :
317
Position/Degree :
links
Mounting Angle [degrees] :
30
Jaw opening angle measurement [Degree] :
20
Mounting bore angle measurement [degree] :
30
- Vendor BOSCH
- SKU 0986018990
- BORG & BECK : BST32074
- Carwood Group : BREF0320986018990
- Carwood Group : BREF032112446
- Carwood Group : BREF032116135
- FEBI BILSTEIN : 48972
- HELLA : 8EA 012 586-421
- LUCAS : LRS01943
- MAHLE : MS 439
- VALEO : 203023
- VALEO : 458335
- WAI : 30104N
- WAI : 30126N
- BOSCH : 1899
