Bosch 0986019020 Starter Motor
Your selected vehicle
Regular price
£231.58
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Bosch 0986019020 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 3 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

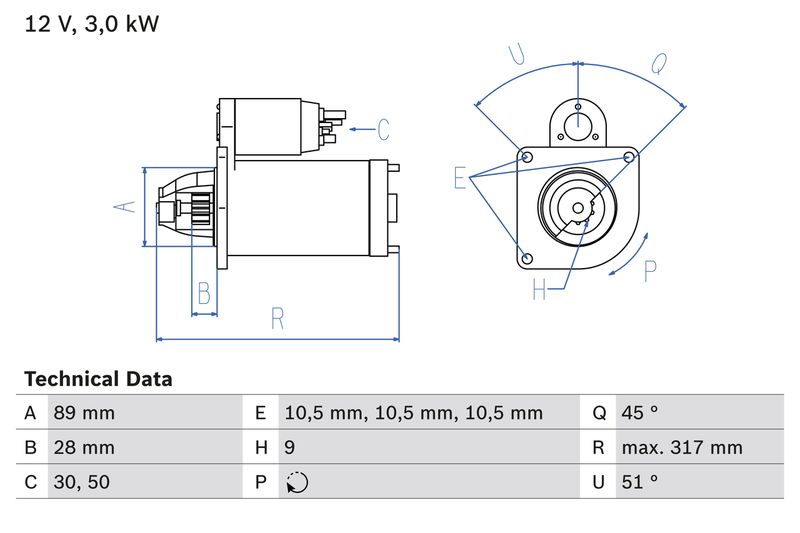

Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
3
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
9
Clamp :
30,50
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
28
Starter Type :
Self-supporting
Bore Diameter [mm] :
10.5
Bore Diameter 2 [mm] :
10.5
Bore Ø 3 [mm] :
10.5
Length [mm] :
317
Position/Degree :
links
Mounting Angle [degrees] :
51
Jaw opening angle measurement [Degree] :
45
Mounting bore angle measurement [degree] :
51
- Vendor BOSCH
- SKU 0986019020
- BMW : 12 41 7 754 662
- MAGIRUS-DEUTZ : 01180928 01180928KZ 01181976 01182233 01182233KZ 01182925 01183120 01183235 01183677 01183712 03045396 118 0928 118 1976 118 2233 118 2925 118 3120 118 3235 118 3677 118 3712 304 5396
- SAME : 01180928 090015728
- FENDT : F 514 900 060 040 F 716 900 060 060
- CLARK : 6005025776
- BOSCH : 0 001 262 002
- BOSCH : 1 986 S10 048
- Carwood Group : BREF0320986019020
- Carwood Group : BREF032112071
- Carwood Group : BREF0321986S10048
- HELLA : 8EA 015 642-301
- HELLA : 8EA 015 642-351
- LUCAS : LRS01603
- MAHLE : MS 446
- MAHLE : MS 65
- WAI : 18232N
- WAI : ISK-IS0841
- BOSCH : 1902
