Bosch 0986019820 Starter Motor
Your selected vehicle
Regular price
£171.81
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Bosch 0986019820 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.3 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

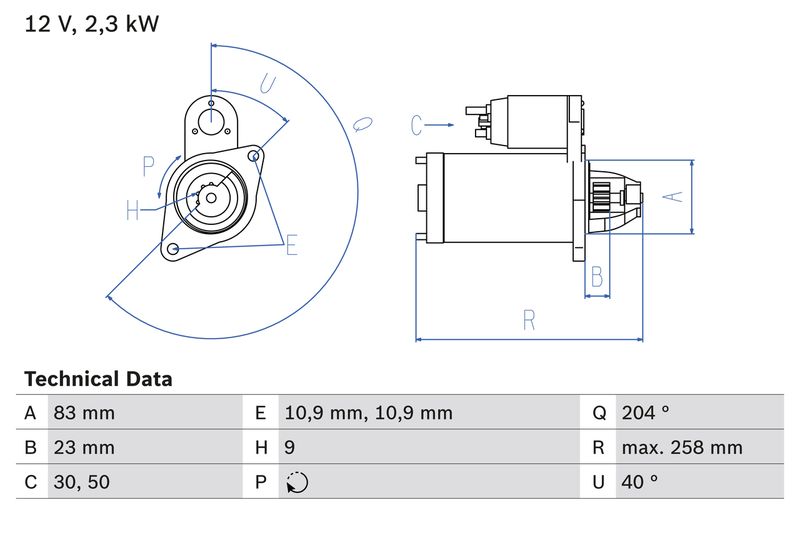

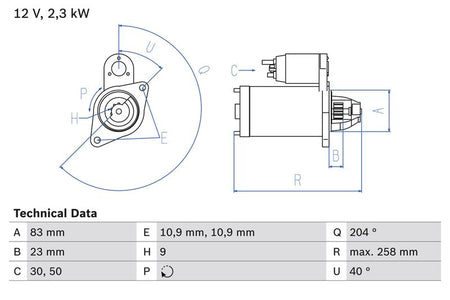

Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.3
Number of mounting bores :
2
Number of threaded holes :
0
Number of Teeth :
9
Clamp :
30,50

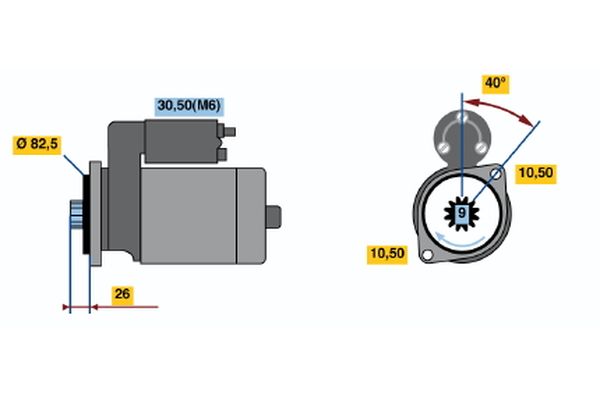

Flange Diameter [mm] :
82.5
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
23
Starter Type :
Self-supporting
Bore Diameter [mm] :
10.9
Bore Diameter 2 [mm] :
10.9
Length [mm] :
258
Position/Degree :
rechts
Mounting Angle [degrees] :
40
Jaw opening angle measurement [Degree] :
204
Mounting bore angle measurement [degree] :
40
- Vendor BOSCH
- SKU 0986019820
- MAGIRUS-DEUTZ : 00430006 01181751 01181751KZ 01182124 01182382 01182384 01182384KZ 01183365 01183404 01184176 03050444 043 0006 04300006 04300007 08213865 11131458 118 1751 118 2124 118 2382 118 2384 118 3365 118 3404 118 4176 1181751KZ 1182384KZ 138 859 305 0444 430 0006 430 0007 821 3865
- BOMAG : 057 180 64
- DEUTZ-FAHR : 01183599
- JCB : STB9369 71440369
- BOSCH : 0 001 109 460
- BOSCH : 1 986 S00 755
- Carwood Group : BREF0320986019820
- Carwood Group : BREF032113181
- Carwood Group : BREF0321986S00755
- HELLA : 8EA 015 642-481
- HELLA : 8EA 015 642-581
- LUCAS : LRS01755
- MAHLE : MS 27
- MAHLE : MS 28
- WAI : 18951N
- WAI : 19823N
- BOSCH : 1982
