Bosch 0986020260 Starter Motor
Your selected vehicle
Regular price
£133.98
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

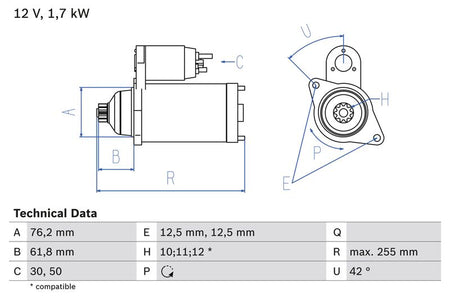

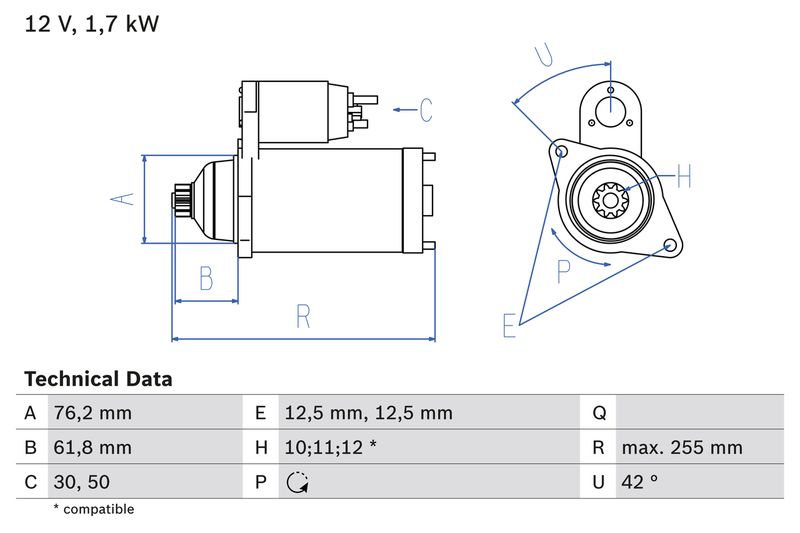

The Bosch 0986020260 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 10, 12, and 11 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.7
Number of mounting bores :
2
Number of threaded holes :
0
Number of Teeth :
10
Number of Teeth :
12
Number of Teeth :
11
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
76.2
Rotation Direction :
Anticlockwise rotation
Pinion Rest Position [mm] :
61.8
Starter Type :
Floating pinion
Bore Diameter [mm] :
12.5
Bore Diameter 2 [mm] :
12.5
Length [mm] :
255
Position/Degree :
links
Mounting Angle [degrees] :
42
Mounting bore angle measurement [degree] :
42
Vehicle Equipment :
for vehicles without start-stop function
- Vendor BOSCH
- SKU 0986020260
- AUDI : 02M 911 023 P 02M 911 024 N 02M 911 024 P 02M911024
- SEAT : 02M 911 023 N 02M 911 023 P 02M 911 024 A 02M 911 024 P 02M911024
- SKODA : 02M 911 023 N 02M 911 023 P 02M 911 024 A 02M 911 024 P
- VW : 02M 911 023 N 02M 911 023 NX 02M 911 023 P 02M 911 023 PX 02M 911 024 A 02M 911 024 N 02M 911 024 NX 02M 911 024 P 02M 911 024 PX 02M911024
- BOSCH : 2026
