Bosch 0986020270 Starter - 1
Bosch 0986020270 Starter - 1
BOSCH

Bosch 0986020270 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986020270

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£178.31 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

VW
MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ,
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 04/2004 - 11/2009
TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
2.5 TDi 2461 CCM 163 HP 11/2003 - 11/2009
TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009

The Bosch 0986020270 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 10 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

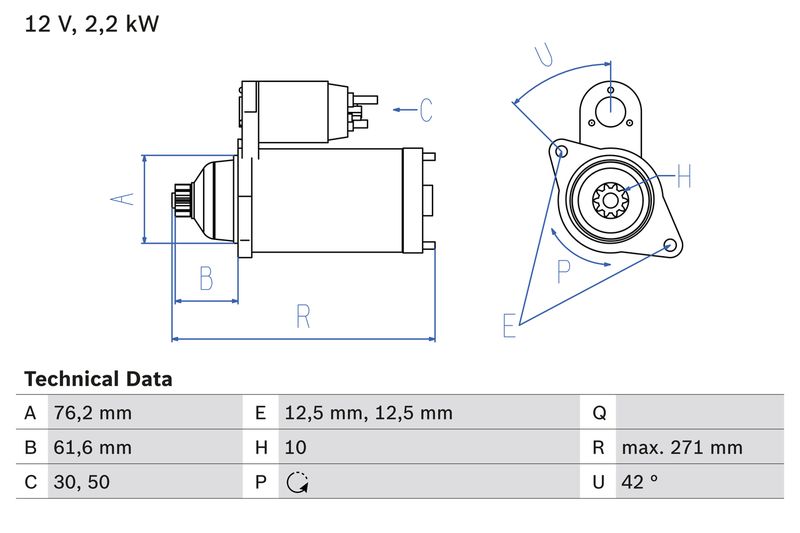

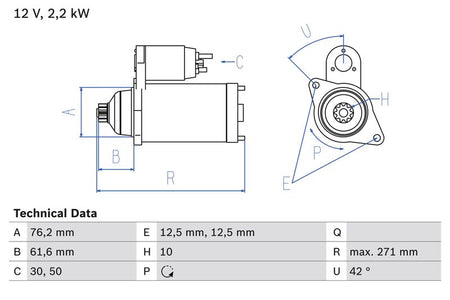

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.2
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 10
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 76.2
Rotation Direction : Anticlockwise rotation
Pinion Rest Position [mm] : 61.6
Starter Type : Floating pinion
Bore Diameter [mm] : 12.5
Bore Diameter 2 [mm] : 12.5
Length [mm] : 271
Position/Degree : links
Mounting Angle [degrees] : 42
Mounting bore angle measurement [degree] : 42
  • Vendor BOSCH
  • SKU 0986020270
  • Barcode 3165143526583
  • VW : 02M 911 023 Q 02M 911 023 QX
  • LINDE : 0009710176
  • APEC : ASM1314
  • BORG & BECK : BST2039
  • BOSCH : 0 001 125 605
  • BOSCH : 1 986 S00 823
  • Carwood Group : BREF0320986020270
  • Carwood Group : BREF032113678
  • Carwood Group : BREF0321986S00823
  • DENSO : DSN3143
  • FEBI BILSTEIN : 188314
  • HELLA : 8EA 012 526-111
  • LUCAS : LRS01706
  • MAHLE : MS 38
  • NAPA : NSM1314
  • VALEO : 438176
  • VALEO : 438429
  • VALEO : 458730
  • WAI : 32706N
  • WAI : S132.352
  • BOSCH : 2027
