Bosch 0986020300 Starter - 1
Bosch 0986020300 Starter - 1
BOSCH

Bosch 0986020300 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986020300

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£174.42 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SEAT
CORDOBA (6L2)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 09/2002 - 11/2009
1.4 TDI 1422 CCM 70 HP 05/2005 - 11/2009
IBIZA Mk III (6L1)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 02/2002 - 12/2005
1.4 TDI 1422 CCM 70 HP 05/2005 - 11/2009
SKODA
FABIA I (6Y2)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 12/1999 - 03/2008
1.4 TDI 1422 CCM 70 HP 10/2005 - 03/2008
FABIA I Saloon (6Y3)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 11/1999 - 12/2007
1.4 TDI 1422 CCM 70 HP 10/2005 - 12/2007
FABIA I Praktik (6Y5)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 07/2001 - 12/2007
1.4 TDI 1422 CCM 70 HP 10/2005 - 12/2007
FABIA I Combi (6Y5)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 04/2000 - 12/2007
1.4 TDI 1422 CCM 70 HP 10/2005 - 12/2007
FABIA II (542)
Description Cylinder Capacity Horse Power Year
1.4 TDI 1422 CCM 70 HP 02/2007 - 03/2010
FABIA II Combi (545)
Description Cylinder Capacity Horse Power Year
1.4 TDI 1422 CCM 70 HP 10/2007 - 03/2010
ROOMSTER (5J7)
Description Cylinder Capacity Horse Power Year
1.4 TDI 1422 CCM 70 HP 07/2006 - 03/2010
ROOMSTER Praktik (5J)
Description Cylinder Capacity Horse Power Year
1.4 TDI 1422 CCM 70 HP 03/2007 - 03/2010
VW
GOLF V (1K1)
Description Cylinder Capacity Horse Power Year
2.0 SDI 1968 CCM 75 HP 01/2004 - 11/2008
POLO IV (9N_, 9A_)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 10/2001 - 11/2009
1.4 TDI 1422 CCM 70 HP 04/2005 - 11/2009

The Bosch 0986020300 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 10 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

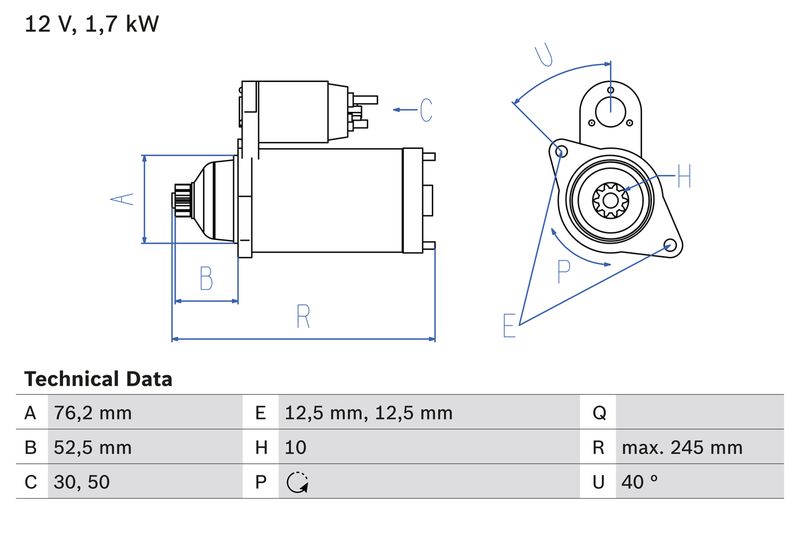

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.7
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 10
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 76.2
Rotation Direction : Anticlockwise rotation
Pinion Rest Position [mm] : 52.5
Starter Type : Floating pinion
Bore Diameter [mm] : 12.5
Bore Diameter 2 [mm] : 12.5
Length [mm] : 245
Position/Degree : links
Mounting Angle [degrees] : 40
Mounting bore angle measurement [degree] : 40
Construction Year from : 12.2004
Construction Year to : 12.2005
Vehicle Identification Number (VIN) from : 6L..5..090 179
  • Vendor BOSCH
  • SKU 0986020300
  • Barcode 3165143929124
  • SEAT : 02T911024
  • SKODA : 02T911024
  • VW : 02T 911 024 X 02T911024
  • APEC : ASM1192
  • BORG & BECK : BST2441
  • BOSCH : 0 001 123 018
  • BOSCH : 1 986 S00 799
  • Carwood Group : BREF0320986020300
  • Carwood Group : BREF032114062
  • Carwood Group : BREF0321986S00799
  • HELLA : 8EA 012 527-901
  • LUCAS : LRS02198
  • NAPA : NSM1192
  • VALEO : 438408
  • VALEO : 458731
  • WAI : 33198N
  • WAI : S132.470
  • BOSCH : 2030
