Bosch 0986020320 Starter Motor
Your selected vehicle
Regular price
£196.16
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

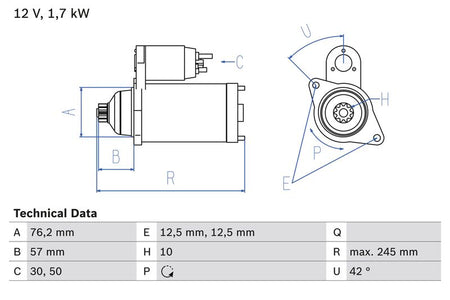

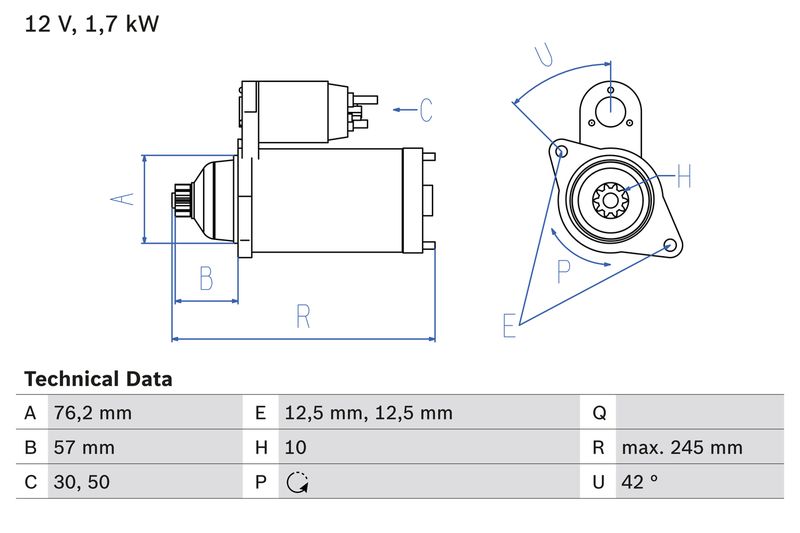

The Bosch 0986020320 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 10 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.7
Number of mounting bores :
2
Number of threaded holes :
0
Number of Teeth :
10
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
76.2
Rotation Direction :
Anticlockwise rotation
Pinion Rest Position [mm] :
57
Starter Type :
Floating pinion
Bore Diameter [mm] :
12.5
Bore Diameter 2 [mm] :
12.5
Length [mm] :
245
Position/Degree :
links
Mounting Angle [degrees] :
42
Mounting bore angle measurement [degree] :
42
- Vendor BOSCH
- SKU 0986020320
- APEC : ASM1124
- BOSCH : 0 001 123 020
- BOSCH : 1 986 S00 800
- Carwood Group : BREF0320986020320
- Carwood Group : BREF032114173
- Carwood Group : BREF0321986S00800
- FEBI BILSTEIN : 193197
- HELLA : 8EA 012 528-051
- LUCAS : LRS02473
- NAPA : NSM1124
- VALEO : 438225
- VALEO : 458875
- WAI : 32688N
- WAI : S132.069
- BOSCH : 2032
