Bosch 0986020780 Starter - 1
Bosch 0986020780 Starter - 1
BOSCH

Bosch 0986020780 Starter Motor

SKU: 0986020780
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£167.47 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A2 (8Z0)
Description Cylinder Capacity Horse Power Year
1.4 1390 CCM 75 HP 02/2000 - 08/2005
1.6 FSI 1598 CCM 110 HP 05/2002 - 08/2005
SEAT
CORDOBA (6L2)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 64 HP 10/2002 - 06/2006
1.4 16V 1390 CCM 75 HP 09/2002 - 12/2007
1.4 16V 1390 CCM 100 HP 10/2002 - 11/2009
1.6 1598 CCM 101 HP 04/2003 - 11/2009
IBIZA Mk III (6L1)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 64 HP 02/2002 - 06/2006
1.4 16V 1390 CCM 100 HP 02/2002 - 11/2009
1.4 16V 1390 CCM 75 HP 02/2002 - 12/2007
1.6 1598 CCM 101 HP 02/2003 - 11/2009
SKODA
FABIA I (6Y2)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 100 HP 12/1999 - 03/2008
1.4 16V 1390 CCM 75 HP 12/1999 - 03/2008
1.2 1198 CCM 54 HP 07/2001 - 04/2007
1.2 1198 CCM 64 HP 01/2003 - 03/2008
FABIA I Saloon (6Y3)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 75 HP 10/1999 - 12/2007
1.4 16V 1390 CCM 100 HP 12/1999 - 12/2007
1.2 1198 CCM 64 HP 01/2003 - 12/2007
1.2 1198 CCM 54 HP 07/2001 - 12/2007
FABIA I Praktik (6Y5)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 64 HP 01/2003 - 12/2007
1.2 1198 CCM 54 HP 07/2001 - 12/2007
FABIA I Combi (6Y5)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 75 HP 05/2000 - 12/2007
1.4 16V 1390 CCM 100 HP 04/2000 - 12/2007
1.2 1198 CCM 64 HP 01/2003 - 12/2007
1.2 1198 CCM 54 HP 07/2001 - 12/2007
VW
FOX Hatchback (5Z1, 5Z3, 5Z4, 5Z5)
Description Cylinder Capacity Horse Power Year
1.2 1198 CCM 55 HP 04/2005 - 07/2011
1.4 1390 CCM 75 HP 04/2005 - 12/2009
1.2 1198 CCM 60 HP 09/2010 - 12/2011
LUPO I (6X1, 6E1)
Description Cylinder Capacity Horse Power Year
1.6 GTI 1598 CCM 125 HP 09/2000 - 07/2005
NEW BEETLE (9C1, 1C1)
Description Cylinder Capacity Horse Power Year
1.4 1390 CCM 75 HP 11/2001 - 09/2010
NEW BEETLE Convertible (1Y7)
Description Cylinder Capacity Horse Power Year
1.4 1390 CCM 75 HP 01/2003 - 09/2010
POLO IV (9N_, 9A_)
Description Cylinder Capacity Horse Power Year
1.4 16V 1390 CCM 75 HP 10/2001 - 05/2008
1.2 12V 1198 CCM 64 HP 10/2001 - 07/2007
1.2 1198 CCM 54 HP 01/2002 - 05/2007
1.4 16V 1390 CCM 101 HP 10/2001 - 05/2008
1.4 FSI 1390 CCM 86 HP 02/2002 - 07/2006
POLO IV Saloon (9A4, 9A2, 9N2, 9A6)
Description Cylinder Capacity Horse Power Year
1.4 1390 CCM 75 HP 11/2002 - 04/2012
1.4 1390 CCM 101 HP 11/2003 - 06/2005
1.6 1598 CCM 101 HP From 09/2002

The Bosch 0986020780 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.1 kW rated power, 10 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

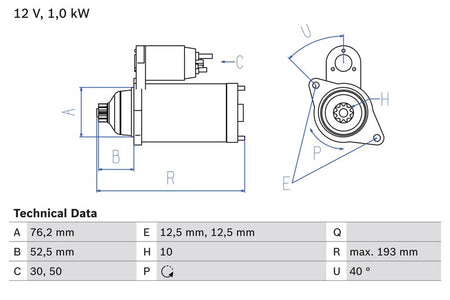

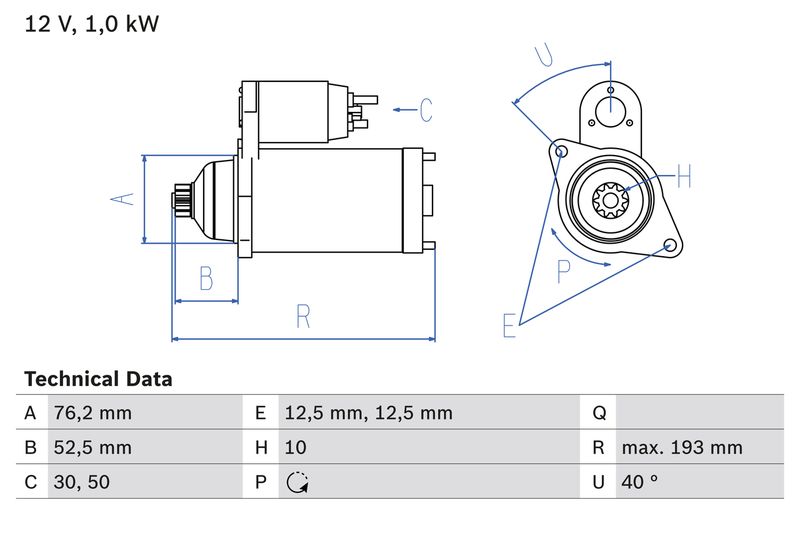

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.1
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 10
Clamp : 30,50
Flange Diameter [mm] : 76.2
Rotation Direction : Anticlockwise rotation
Pinion Rest Position [mm] : 52.5
Starter Type : Floating pinion
Bore Diameter [mm] : 12.5
Bore Diameter 2 [mm] : 12.5
Length [mm] : 210
Position/Degree : links
Mounting Angle [degrees] : 40
Mounting bore angle measurement [degree] : 40
Engine Code : AZQ
Construction Year to : 04.2004
Engine Code : BME
Construction Year from : 11.2004
Construction Year to : 11.2004
Vehicle Identification Number (VIN) to : 6L..5..090 178
  • Vendor BOSCH
  • SKU 0986020780
  • Barcode 3165143568729
  • AUDI : 02T 911 023 E 02T 911 023 G
  • SEAT : 02T 911 023 E 02T 911 023 G 02T911023G 02T911023GX
  • SKODA : 02T 911 023 E 02T 911 023 G
  • VW : 02T 911 023 E 02T 911 023 G 02T 911 023 GX
  • APEC : ASM1598
  • BORG & BECK : BST2044
  • BOSCH : 0 001 120 400
  • BOSCH : 1 986 S00 780
  • Carwood Group : BREF0320986020780
  • Carwood Group : BREF032113515
  • Carwood Group : BREF0321986S00780
  • FEBI BILSTEIN : 101616
  • FEBI BILSTEIN : 102896
  • HELLA : 8EA 012 527-401
  • LUCAS : LRS01610
  • NAPA : NSM1598
  • VALEO : 438261
  • VALEO : 458421
  • WAI : 32613N
  • WAI : S132.357
  • BOSCH : 2078
