Bosch 0986020860 Starter - 1
Bosch 0986020860 Starter - 1
BOSCH

Bosch 0986020860 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986020860

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£158.81 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
2.5 ST 2522 CCM 225 HP 10/2005 - 09/2012
VOLVO
C70 II Convertible (542)
Description Cylinder Capacity Horse Power Year
2.4 2435 CCM 140 HP 03/2006 - 10/2009
2.4 i 2435 CCM 170 HP 03/2006 - 10/2009
T5 2521 CCM 220 HP 03/2006 - 02/2007
T5 2521 CCM 230 HP 03/2007 - 06/2013
S40 II (544)
Description Cylinder Capacity Horse Power Year
2.4 2435 CCM 140 HP 01/2004 - 12/2010
2.4 2435 CCM 170 HP 01/2004 - 12/2012
T5 2521 CCM 220 HP 01/2004 - 12/2007
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
T5 2521 CCM 230 HP 03/2007 - 12/2012
V50 (545)
Description Cylinder Capacity Horse Power Year
2.4 2435 CCM 140 HP 04/2004 - 12/2010
2.4 2435 CCM 170 HP 04/2004 - 12/2010
T5 2521 CCM 220 HP 04/2004 - 12/2007
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
T5 2521 CCM 230 HP 03/2007 - 12/2012
T5 AWD 2521 CCM 230 HP 03/2007 - 12/2010

The Bosch 0986020860 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.4 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

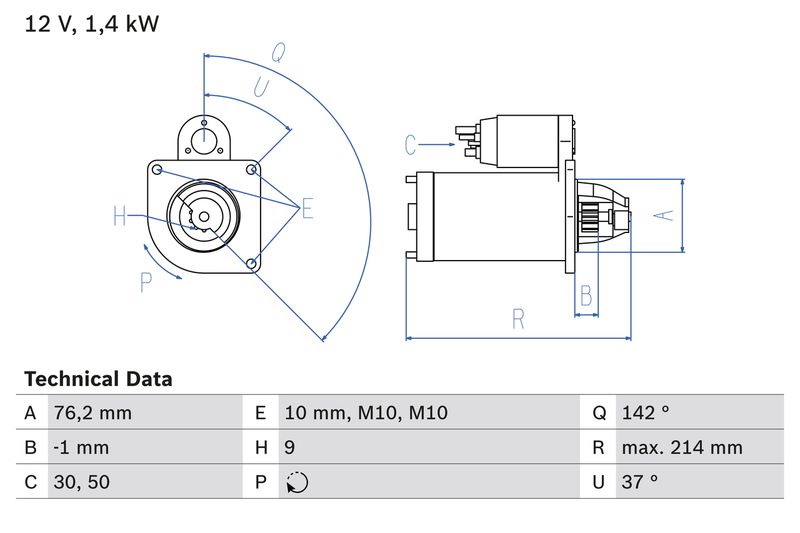

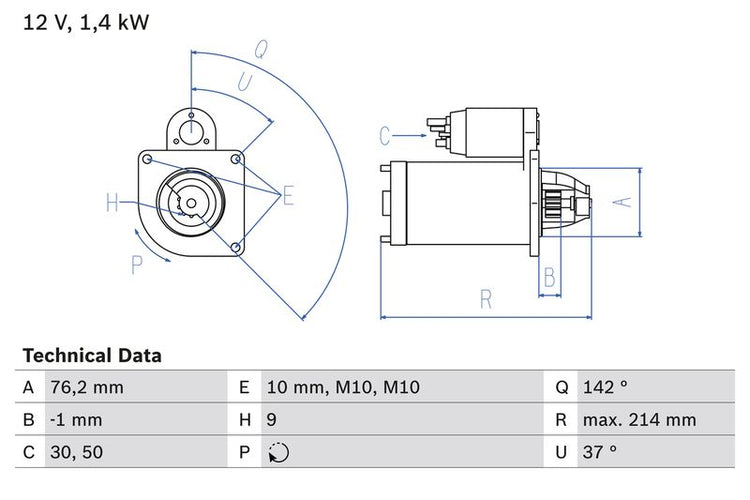

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.4
Number of mounting bores : 1
Number of threaded holes : 2
Number of Teeth : 9
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 76.2
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : -1
Starter Type : Self-supporting
Thread Size 1 : M10x1.5
Thread Size 2 : M10x1.5
Bore Diameter [mm] : 10
Length [mm] : 214
Position/Degree : rechts
Mounting Angle [degrees] : 37
Jaw opening angle measurement [Degree] : 142
Mounting bore angle measurement [degree] : 37
for Model code : DA3
Construction Year to : 08.2006
Vehicle Identification Number (VIN) to : 616999
  • Vendor BOSCH
  • SKU 0986020860
  • Barcode 3165143587621
  • FORD : 1374049 3M5T11000EA
  • VOLVO : 36050273 8602924 8622742
  • BORG & BECK : BST2567
  • BOSCH : 0 001 108 472
  • BOSCH : 1 986 S00 715
  • Carwood Group : BREF0320986020860
  • Carwood Group : BREF032114315
  • Carwood Group : BREF0321986S00715
  • HELLA : 8EA 011 611-401
  • LUCAS : LRS02331
  • WAI : 17979N
  • BOSCH : 2086
