Bosch 0986020890 Starter - 1
Bosch 0986020890 Starter - 1
BOSCH

Bosch 0986020890 Starter Motor

SKU: 0986020890
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£152.47 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
1 (E87)
Description Cylinder Capacity Horse Power Year
116 i 1596 CCM 115 HP 06/2004 - 06/2011
118 i 1995 CCM 129 HP 07/2004 - 02/2007
118 i 1995 CCM 136 HP 10/2006 - 06/2011
120 i 1995 CCM 150 HP 06/2004 - 02/2007
120 i 1995 CCM 156 HP 03/2007 - 06/2011
1 (E81)
Description Cylinder Capacity Horse Power Year
116 i 1596 CCM 115 HP 09/2007 - 12/2011
120 i 1995 CCM 156 HP 03/2007 - 12/2011
1 Coupe (E82)
Description Cylinder Capacity Horse Power Year
120 i 1995 CCM 156 HP 09/2009 - 10/2013
1 Convertible (E88)
Description Cylinder Capacity Horse Power Year
120 i 1995 CCM 156 HP 03/2008 - 12/2013
118 i 1995 CCM 136 HP 09/2008 - 12/2013
3 (E90)
Description Cylinder Capacity Horse Power Year
320 i 1995 CCM 150 HP 12/2004 - 08/2007
318 i 1995 CCM 129 HP 09/2005 - 08/2007
320 si 1997 CCM 173 HP 09/2005 - 08/2006
3 Touring (E91)
Description Cylinder Capacity Horse Power Year
320 i 1995 CCM 150 HP 09/2005 - 06/2012
318 i 1995 CCM 129 HP 01/2006 - 08/2007
X1 (E84)
Description Cylinder Capacity Horse Power Year
sDrive 18 i 1995 CCM 136 HP 03/2010 - 06/2015
sDrive 18 i 1995 CCM 150 HP 03/2010 - 06/2015
X3 (E83)
Description Cylinder Capacity Horse Power Year
2.0 i 1995 CCM 150 HP 07/2005 - 08/2008
xDrive 20 i 1995 CCM 150 HP 09/2008 - 08/2011
Z4 Roadster (E85)
Description Cylinder Capacity Horse Power Year
2.0 i 1995 CCM 150 HP 03/2005 - 02/2009

The Bosch 0986020890 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.2 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

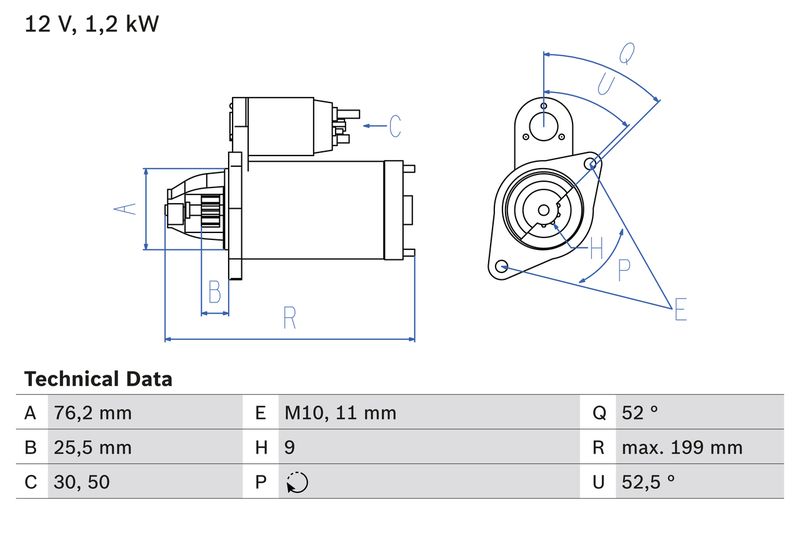

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.2
Number of mounting bores : 1
Number of threaded holes : 1
Number of Teeth : 9
Clamp : 30,50
Flange Diameter [mm] : 76.2
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 25.5
Starter Type : Self-supporting
Thread Size : M10x1.5
Bore Diameter 2 [mm] : 11
Length [mm] : 199
Position/Degree : rechts
Mounting Angle [degrees] : 52
Jaw opening angle measurement [Degree] : 52
Mounting bore angle measurement [degree] : 52
  • Vendor BOSCH
  • SKU 0986020890
  • Barcode 3165143650493
  • BMW : 12 41 7 523 450 12 41 7 524 843 12 41 7 526 239 12 41 7 610 341 12 41 7 610 348 7 523 450
  • APEC : ASM1231
  • BORG & BECK : BST2267
  • BOSCH : 0 001 107 525
  • BOSCH : 1 986 S00 686
  • Carwood Group : BREF0320986020890
  • Carwood Group : BREF032114297
  • Carwood Group : BREF0321986S00686
  • FEBI BILSTEIN : 1000942
  • HELLA : 8EA 012 527-831
  • LUCAS : LRS02299
  • NAPA : NSM1231
  • VALEO : 438492
  • WAI : 33206N
  • WAI : S132.011
  • BOSCH : 2089
