Bosch 0986021190 Starter Motor
Your selected vehicle
Regular price
£273.70
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

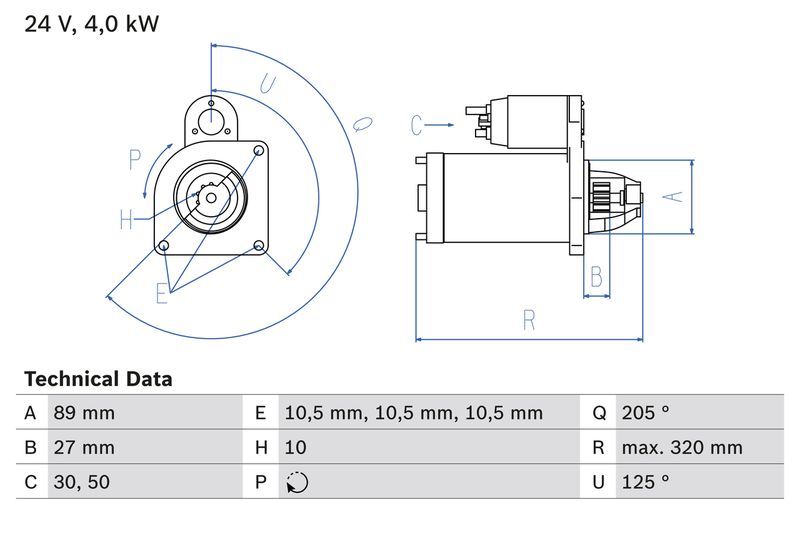

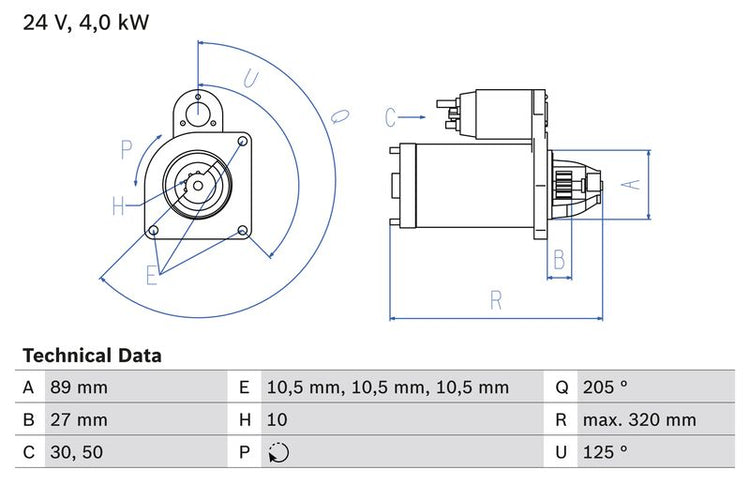

The Bosch 0986021190 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 4 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
4
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
10
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
27
Starter Type :
Self-supporting
Bore Diameter [mm] :
10.5
Bore Diameter 2 [mm] :
10.5
Bore Ø 3 [mm] :
10.5
Length [mm] :
320
Position/Degree :
rechts
Mounting Angle [degrees] :
125
Jaw opening angle measurement [Degree] :
205
Mounting bore angle measurement [degree] :
125
- Vendor BOSCH
- SKU 0986021190
- BORG & BECK : BST32048
- BOSCH : 0 001 263 002
- BOSCH : 1 986 S10 074
- Carwood Group : BREF0320986021190
- Carwood Group : BREF032113760
- Carwood Group : BREF0321986S10074
- FEBI BILSTEIN : 48969
- HELLA : 8EA 012 586-341
- LUCAS : LRS02176
- MAHLE : MS 766
- VALEO : 203036
- VALEO : 438540
- VALEO : 458329
- WAI : 30129N
- BOSCH : 2119
