Bosch 0986021260 Starter - 1
Bosch 0986021260 Starter - 1
BOSCH

Bosch 0986021260 Starter Motor

SKU: 0986021260
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£181.74 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W168)
Description Cylinder Capacity Horse Power Year
A 160 CDI (168.007) 1689 CCM 60 HP 07/1998 - 02/2001
A 170 CDI (168.008) 1689 CCM 90 HP 07/1998 - 02/2001
A 160 CDI (168.006) 1689 CCM 75 HP 02/2001 - 08/2004
A 170 CDI (168.009, 168.109) 1689 CCM 95 HP 02/2001 - 08/2004
A-CLASS (W169)
Description Cylinder Capacity Horse Power Year
A 200 CDI (169.308, 169.008) 1991 CCM 136 HP 09/2004 - 06/2012
A 160 CDI (169.006, 169.306) 1991 CCM 82 HP 09/2004 - 06/2012
A 180 CDI (169.007, 169.307) 1991 CCM 109 HP 09/2004 - 06/2012
A 200 CDI (169.008, 169.308) 1991 CCM 140 HP 09/2004 - 06/2012
B-CLASS Sports Tourer (W245)
Description Cylinder Capacity Horse Power Year
B 180 CDI (245.207) 1991 CCM 109 HP 03/2005 - 11/2011
B 200 CDI (245.208) 1991 CCM 140 HP 03/2005 - 11/2011
B 200 CDI (245.208) 1991 CCM 136 HP 03/2005 - 11/2011
VANEO (414)
Description Cylinder Capacity Horse Power Year
1.7 CDI (414.700) 1689 CCM 75 HP 02/2002 - 07/2005
1.7 CDI (414.700) 1689 CCM 91 HP 02/2002 - 07/2005

The Bosch 0986021260 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.6 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

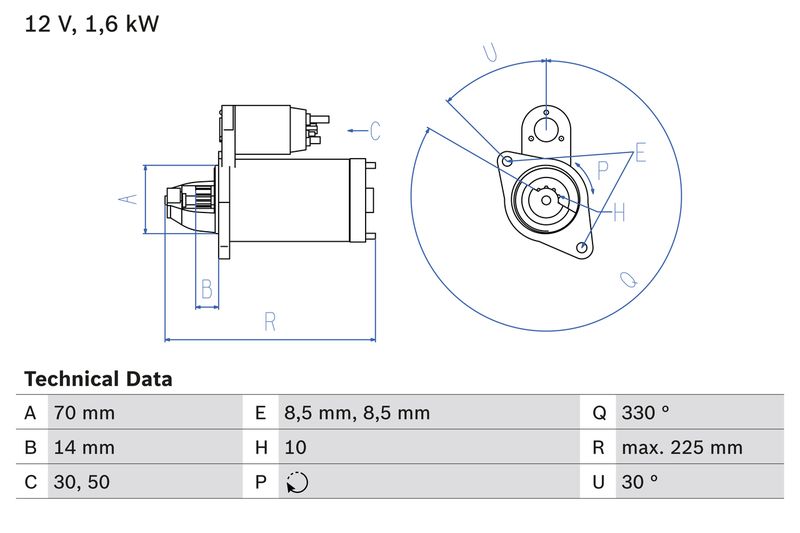

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.6
Number of mounting bores : 2
Number of threaded holes : 0
Number of Teeth : 10
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 70
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 14
Starter Type : Self-supporting
Bore Diameter [mm] : 8.5
Bore Diameter 2 [mm] : 8.5
Length [mm] : 225
Position/Degree : links
Mounting Angle [degrees] : 30
Jaw opening angle measurement [Degree] : 330
Mounting bore angle measurement [degree] : 30
  • Vendor BOSCH
  • SKU 0986021260
  • Barcode 3165144130123
  • MERCEDES-BENZ : A 005 151 74 01 A 005 151 74 01 80 005 151 74 01 005 151 74 01 80
  • APEC : ASM1089
  • BORG & BECK : BST2559
  • BORG & BECK : BST2565
  • BOSCH : 0 001 108 217
  • BOSCH : 1 986 S00 695
  • Carwood Group : BREF0320986021260
  • Carwood Group : BREF032112220
  • Carwood Group : BREF0321986S00695
  • HELLA : 8EA 012 526-341
  • LUCAS : LRS01967
  • NAPA : NSM1089
  • VALEO : 458223
  • VALEO : 458642
  • WAI : 32439N
  • WAI : S133.218
  • BOSCH : 2126
