Bosch 0986021320 Starter Motor
Your selected vehicle
Regular price
£182.13
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

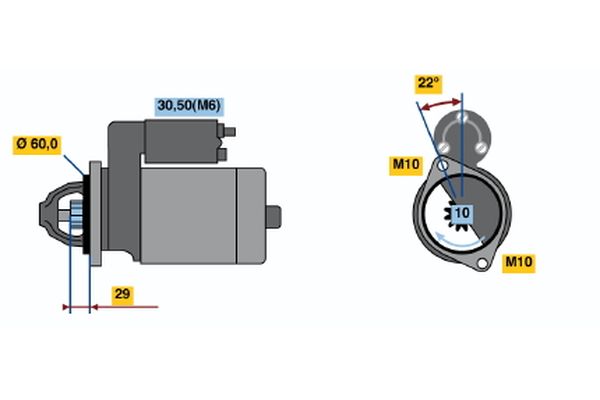

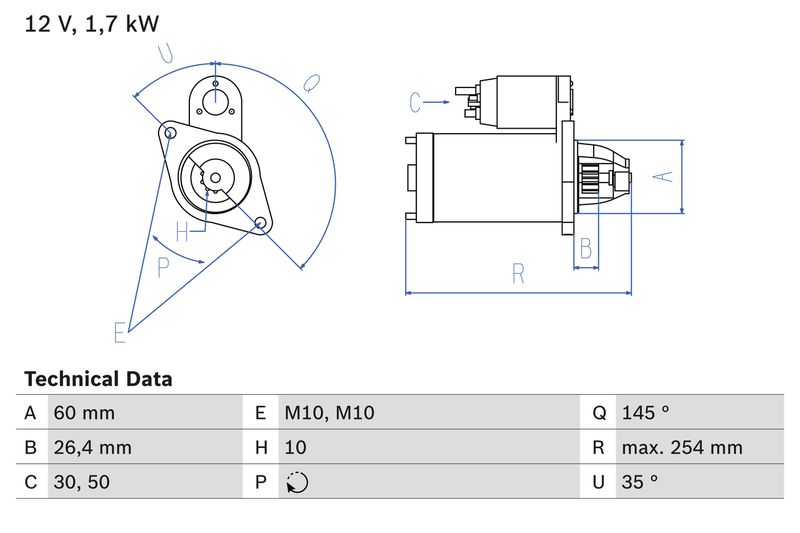

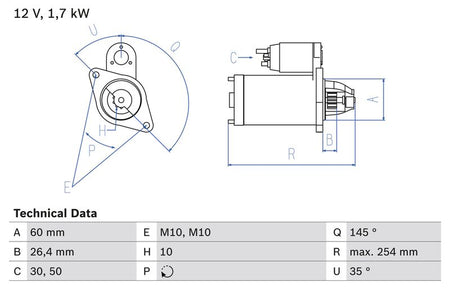

The Bosch 0986021320 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.7
Number of mounting bores :
0
Number of threaded holes :
2
Number of Teeth :
10
Clamp :
30,50
Flange Diameter [mm] :
60
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
26.4
Starter Type :
Self-supporting
Thread Size :
M10x1.5
Thread Size 1 :
M10x1.5
Length [mm] :
254
Position/Degree :
links
Mounting Angle [degrees] :
35
Jaw opening angle measurement [Degree] :
145
Mounting bore angle measurement [degree] :
35
Construction Year to :
04.2000
Construction Year from :
09.1997
Left-/right-hand drive vehicles :
for left-hand drive vehicles
- Vendor BOSCH
- SKU 0986021320
- MERCEDES-BENZ : A 005 151 77 01 A 005 151 77 01 80 A 006 151 06 01 A 006 151 06 01 80 A 006 151 41 01 A 006 151 41 01 80 A 006 151 42 01 A 006 151 42 01 80 A 006 151 61 01 A 006 151 61 01 80 A 006 151 98 01 A 112 151 00 01 A 112 151 00 01 80 005 151 77 01 005 151 77 01 80 006 151 06 01 006 151 06 01 80 006 151 41 01 006 151 41 01 80 006 151 42 01 006 151 42 01 80 006 151 61 01 006 151 61 01 80 006 151 98 01 112 151 00 01 112 151 00 01 80
- STEYR : 0061510601 1121510001
- BOSCH : 2132
