Bosch 0986021530 Starter - 1
Bosch 0986021530 Starter - 1
BOSCH

Bosch 0986021530 Starter Motor

SKU: 0986021530
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£135.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AURIS (_E15_)
Description Cylinder Capacity Horse Power Year
1.8 (ZRE152_, ZRE152) 1798 CCM 144 HP 02/2009 - 09/2012
1.6 (ZRE151_, ZRE151R) 1598 CCM 124 HP 03/2007 - 09/2012
1.6 (ZRE151_, ZRE151R) 1598 CCM 132 HP 05/2009 - 09/2012
1.8 (ZRE152_, ZRE152) 1798 CCM 147 HP 02/2009 - 09/2012
AURIS (_E18_)
Description Cylinder Capacity Horse Power Year
1.6 (ZRE181_, ZRE185_, ZRE185R, ZRE181R) 1598 CCM 132 HP 10/2012 - 12/2018
1.2 (NRE185_, NRE185R) 1197 CCM 116 HP 03/2015 - 12/2018
AURIS Estate (_E18_)
Description Cylinder Capacity Horse Power Year
1.6 (ZRE185_) 1598 CCM 132 HP 07/2013 - 12/2018
1.2 (NRE185_, NRE185R, NRE185H) 1197 CCM 116 HP 03/2015 - 12/2018
AVENSIS Saloon (_T27_)
Description Cylinder Capacity Horse Power Year
1.6 VVT-i (ZRT270_, ZRT270R) 1598 CCM 132 HP 11/2008 - 10/2018
1.8 VVT-i (ZRT271_, ZRT271R) 1798 CCM 147 HP 11/2008 - 10/2018
2.0 VVT-i (ZRT272_, ZRT272R) 1987 CCM 152 HP 11/2008 - 10/2018
AVENSIS Estate (_T27_)
Description Cylinder Capacity Horse Power Year
1.6 VVT-i (ZRT270_, ZRT270R) 1598 CCM 132 HP 11/2008 - 10/2018
1.8 VVT-i (ZRT271_, ZRT271R) 1798 CCM 147 HP 11/2008 - 10/2018
2.0 VVT-i (ZRT272_, ZRT272R) 1987 CCM 152 HP 11/2008 - 10/2018
COROLLA Saloon (_E18_, ZRE1_)
Description Cylinder Capacity Horse Power Year
1.6 (ZRE181_) 1598 CCM 132 HP 06/2013 - 12/2018
1.8 VVTi (ZRE172, ZRE182) 1798 CCM 140 HP 06/2013 - 08/2019
1.6 (ZRE171, ZRE181) 1598 CCM 122 HP 06/2013 - 12/2018
VERSO (_R2_)
Description Cylinder Capacity Horse Power Year
1.6 (ZGR20_, ZGR20R) 1598 CCM 132 HP 04/2009 - 08/2018
1.8 (ZGR21_, ZGR21R) 1798 CCM 147 HP 04/2009 - 08/2018
1.6 (ZGR20) 1598 CCM 110 HP 04/2009 - 08/2018

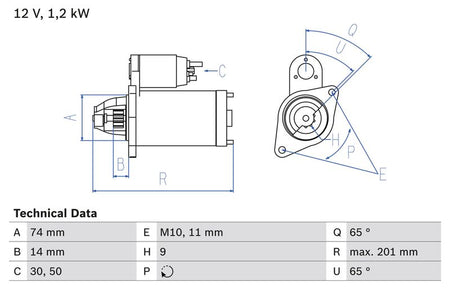

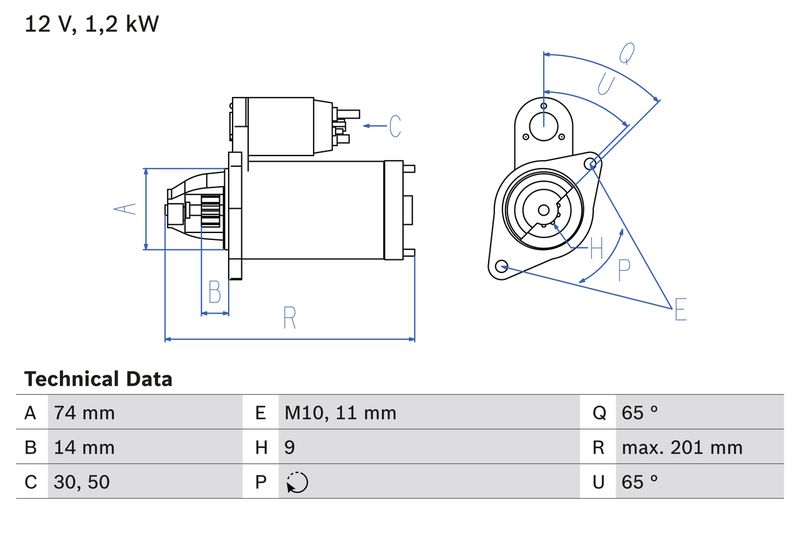

The Bosch 0986021530 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.2 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.2
Number of mounting bores : 1
Number of threaded holes : 1
Number of Teeth : 9
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 74
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 14
Starter Type : Self-supporting
Thread Size : M10
Length [mm] : 201
Position/Degree : rechts
Mounting Angle [degrees] : 65
Jaw opening angle measurement [Degree] : 65
Mounting bore angle measurement [degree] : 65
  • Vendor BOSCH
  • SKU 0986021530
  • Barcode 4047023204899
  • TOYOTA : 281000T030 281000T030C 281000T030F 281000T03000 281000T060
  • APEC : ASM1200
  • BORG & BECK : BST2607
  • BOSCH : 0 001 107 530
  • BOSCH : 1 986 S00 688
  • Carwood Group : BREF0320986021530
  • Carwood Group : BREF032114886
  • Carwood Group : BREF0321986S00688
  • DENSO : DSN947
  • HELLA : 8EA 012 528-861
  • LUCAS : LRS02390
  • NAPA : NSM1200
  • VALEO : 446528
  • WAI : 33291N
  • WAI : S131.232
  • BOSCH : 2153
