Bosch 0986021550 Starter Motor
Your selected vehicle
Regular price
£151.44
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

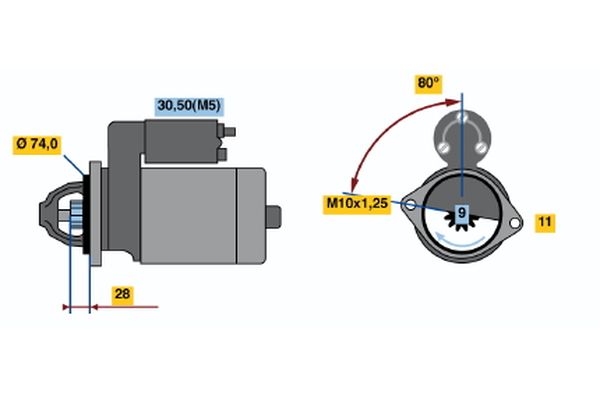

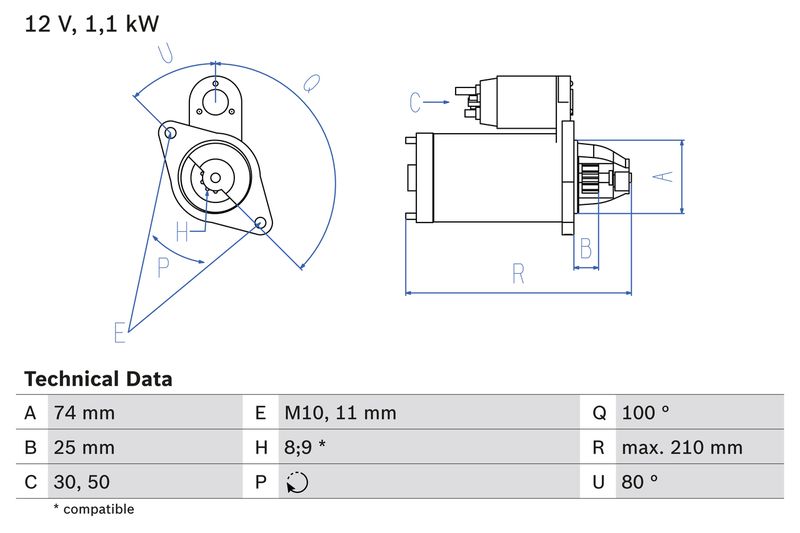

The Bosch 0986021550 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.1 kW rated power, 9 and 8 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.1
Number of mounting bores :
1
Number of threaded holes :
1
Number of Teeth :
9
Number of Teeth :
8
Clamp :
30,50
Flange Diameter [mm] :
74
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
24.65
Starter Type :
Self-supporting
Thread Size :
M10x1.25
Bore Diameter 2 [mm] :
11
Length [mm] :
210
Position/Degree :
links
Mounting Angle [degrees] :
80
Jaw opening angle measurement [Degree] :
100
Mounting bore angle measurement [degree] :
80
- Vendor BOSCH
- SKU 0986021550
- CITROËN : 5802 AL 5802 AN 5802 EY 5802 EZ
- PEUGEOT : 5802 AL 5802 AN 5802 EY 5802 EZ
- TOYOTA : 281000Q012 281000Q021
- APEC : ASM1492
- BOSCH : 0 001 107 438
- BOSCH : 1 986 S00 672
- Carwood Group : BREF0320986021550
- Carwood Group : BREF032113963
- Carwood Group : BREF0321986S00672
- DENSO : DSN3037
- FEBI BILSTEIN : 101585
- FEBI BILSTEIN : 101623
- HELLA : 8EA 012 527-581
- LUCAS : LRS02295
- NAPA : NSM1492
- VALEO : 438192
- WAI : 33295N
- WAI : S131.951
- BOSCH : 2155
