Bosch 0986021560 Starter Motor
Your selected vehicle
Regular price
£166.90
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986021560 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.1 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

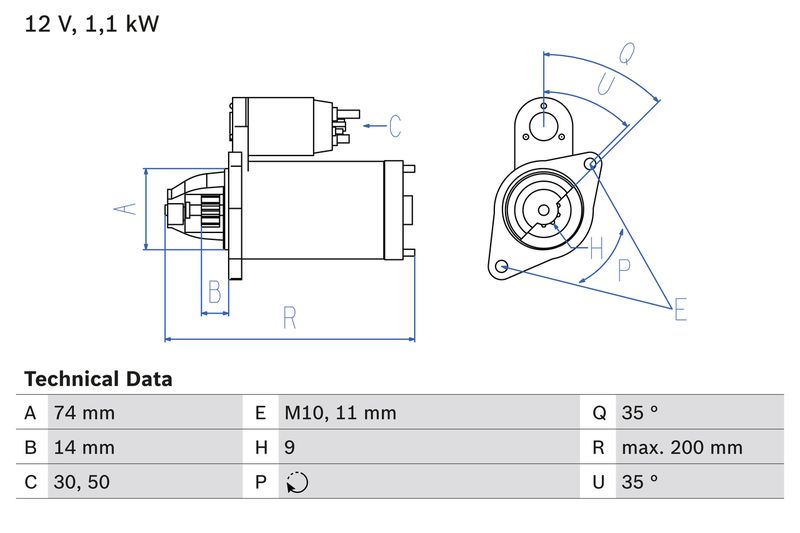

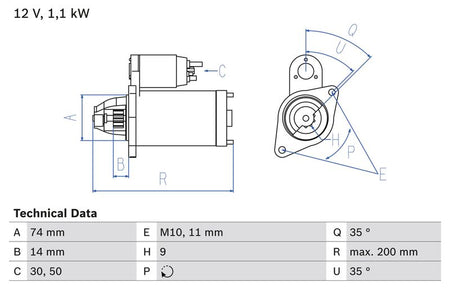

Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.1
Number of mounting bores :
1
Number of threaded holes :
1
Number of Teeth :
9
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
74
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
14
Starter Type :
Self-supporting
Thread Size :
M10
Bore Diameter 2 [mm] :
11
Length [mm] :
200
Position/Degree :
rechts
Mounting Angle [degrees] :
35
Jaw opening angle measurement [Degree] :
35
Mounting bore angle measurement [degree] :
35
Construction Year to :
10.2008
- Vendor BOSCH
- SKU 0986021560
- TOYOTA : 28100 0N010
- APEC : ASM1596
- BLUE PRINT : ADT312113
- BORG & BECK : BST2309
- BOSCH : 0 001 107 440
- BOSCH : 1 986 S00 673
- Carwood Group : BREF0320986021560
- Carwood Group : BREF032114068
- Carwood Group : BREF0321986S00673
- HELLA : 8EA 011 611-321
- LUCAS : LRS02333
- NAPA : NSM1596
- WAI : 33320N
- WAI : S131.089
- BOSCH : 2156
