Bosch 0986021630 Starter Motor

SKU: 0986021630
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£162.99 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
CRAFTER 30-50 Platform/Chassis (2F_)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 88 HP 04/2006 - 07/2011
2.5 TDI 2461 CCM 109 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 136 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 163 HP 04/2006 - 07/2011
CRAFTER 30-35 Bus (2E_)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 88 HP 04/2006 - 07/2011
2.5 TDI 2461 CCM 109 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 136 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 163 HP 04/2006 - 07/2011
CRAFTER 30-50 Van (2E_)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 88 HP 04/2006 - 07/2011
2.5 TDI 2461 CCM 109 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 136 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 163 HP 04/2006 - 07/2011

The Bosch 0986021630 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2 kW rated power, 9 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

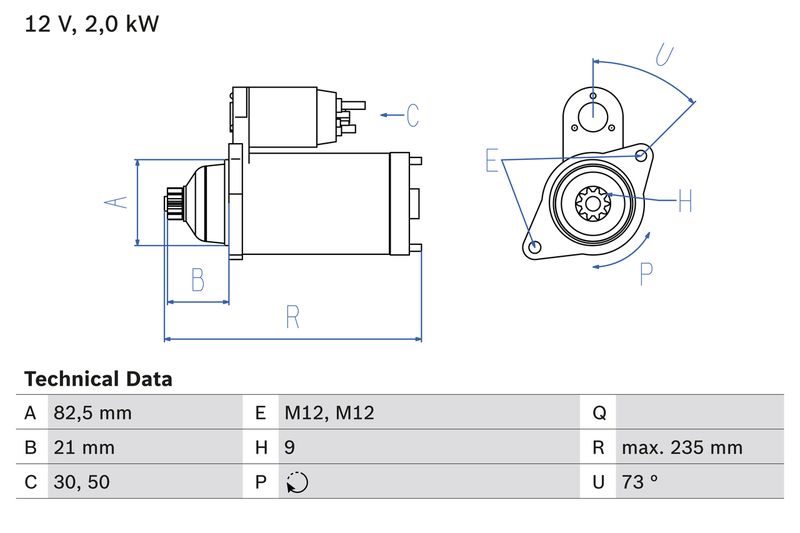

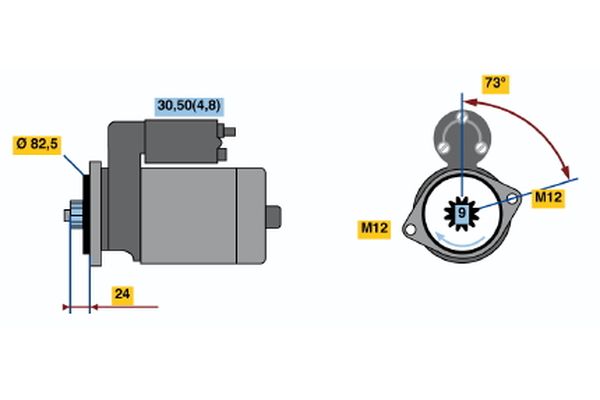

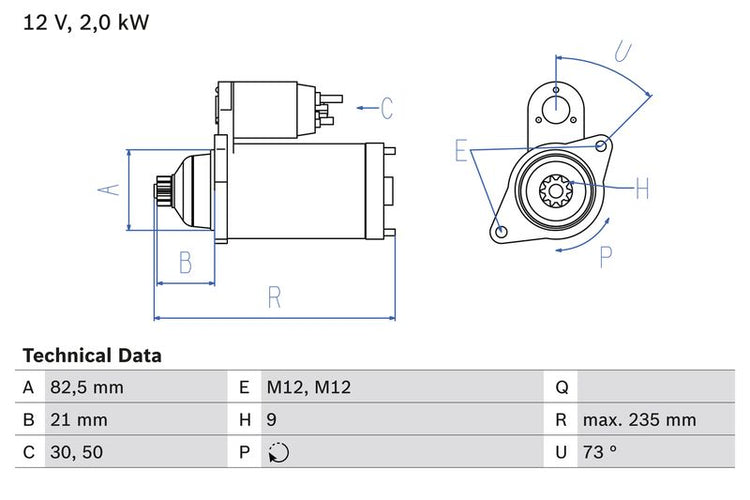

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2
Number of mounting bores : 0
Number of threaded holes : 2
Number of Teeth : 9
Clamp : 30,50
Flange Diameter [mm] : 82.5
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 21
Starter Type : Floating pinion
Thread Size : M12x1.75
Thread Size 1 : M12x1.75
Length [mm] : 235
Position/Degree : rechts
Mounting Angle [degrees] : 73
Mounting bore angle measurement [degree] : 73
  • Vendor BOSCH
  • SKU 0986021630
  • Barcode 4047023469021
  • MERCEDES-BENZ : A 646 151 01 01 A 646 151 01 01 80 HVW6461510101 646 151 01 01 646 151 01 01 80
  • VW : 076 911 023 A 076 911 023 AX
  • APEC : ASM1211
  • BORG & BECK : BST2287
  • BOSCH : 0 001 125 055
  • BOSCH : 1 986 S00 815
  • Carwood Group : BREF0320986021630
  • Carwood Group : BREF032114317
  • Carwood Group : BREF0321986S00815
  • FEBI BILSTEIN : 193160
  • HELLA : 8EA 011 611-261
  • LUCAS : LRS02327
  • MAHLE : MS 1091
  • NAPA : NSM1211
  • VALEO : 438231
  • WAI : 33220N
  • WAI : S132.511
  • BOSCH : 2163
