Home / Car Parts / Electrical / Starter System / Starter Motors
Bosch 0986021820 Starter - 1
Bosch 0986021820 Starter - 1
BOSCH

Bosch 0986021820 Starter Motor

SKU: 0986021820
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£184.32 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 115 HP 02/2007 - 09/2010
FOCUS C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 115 HP 01/2005 - 03/2007
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 115 HP 10/2005 - 06/2010
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 115 HP 10/2005 - 06/2010
FOCUS II Saloon (DB_, FCH, DH)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 115 HP 04/2005 - 09/2012
GALAXY II (WA6)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 100 HP 05/2006 - 06/2015
1.8 TDCi 1753 CCM 125 HP 05/2006 - 06/2015
MONDEO IV (BA7)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 100 HP 03/2007 - 01/2015
MONDEO IV Turnier (BA7)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 100 HP 03/2007 - 12/2012
MONDEO IV Saloon (BA7)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 125 HP 06/2007 - 01/2015
1.8 TDCi 1753 CCM 100 HP 03/2007 - 01/2015
S-MAX (WA6)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 125 HP 05/2006 - 12/2014
1.8 TDCi 1753 CCM 100 HP 01/2007 - 12/2010

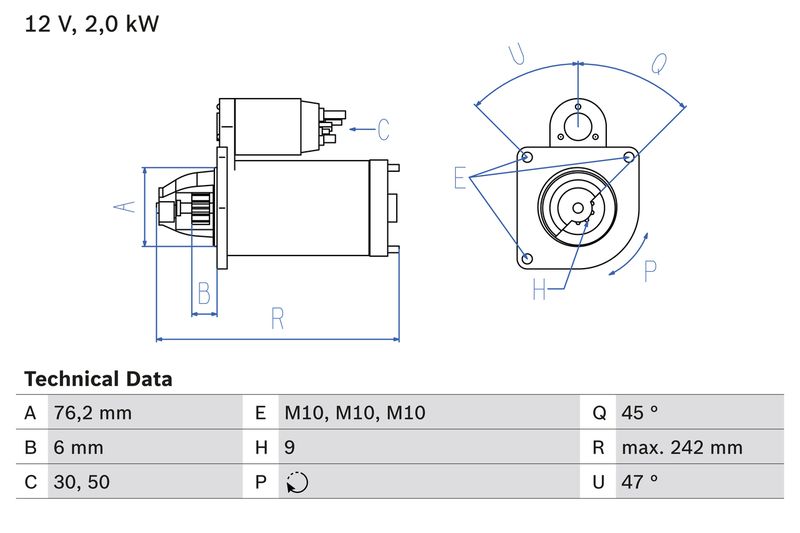

The Bosch 0986021820 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2
Number of mounting bores : 0
Number of threaded holes : 3
Number of Teeth : 9
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 76.2
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 6
Starter Type : Self-supporting
Thread Size : M10
Thread Size 1 : M10x1.5
Thread Size 2 : M10x1.5
Length [mm] : 242
Position/Degree : links
Mounting Angle [degrees] : 47
Jaw opening angle measurement [Degree] : 45
Mounting bore angle measurement [degree] : 47
Engine Code : KKDA
Construction Year to : 07.2010
Construction Year from : 04.2005
Construction Year to : 12.2011
  • Vendor BOSCH
  • SKU 0986021820
  • Barcode 4047024125254
  • FORD : 1253808 1387092 1480550 1564725 1671579 1728770 4M5T11000KB 4M5T11000KC 4M5T11000KD 4M5T11000KE 6G9N11000EA 6G9N11000EB 6G9N11000EC
  • APEC : ASM1256
  • BORG & BECK : BST2121
  • BOSCH : 0 001 109 389
  • BOSCH : 1 986 S01 038
  • Carwood Group : BREF0320986021820
  • Carwood Group : BREF032114092
  • Carwood Group : BREF0321986S01038
  • DENSO : DSN3135
  • FEBI BILSTEIN : 193196
  • HELLA : 8EA 012 526-131
  • LUCAS : LRS02249
  • NAPA : NSM1256
  • VALEO : 438412
  • VALEO : 438618
  • WAI : 32513N
  • WAI : S134.472
  • BOSCH : 2182
