Bosch 0986021970 Starter Motor
Your selected vehicle
Regular price
£115.00
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

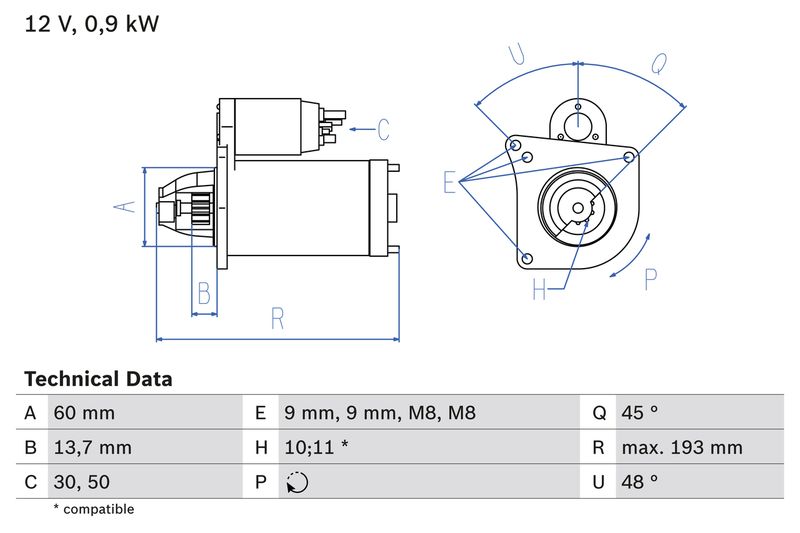

The Bosch 0986021970 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 0.9 kW rated power, 11 and 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
0.9
Number of mounting bores :
2
Number of threaded holes :
2
Number of Teeth :
11
Number of Teeth :
10
Clamp :
50
Clamp :
30

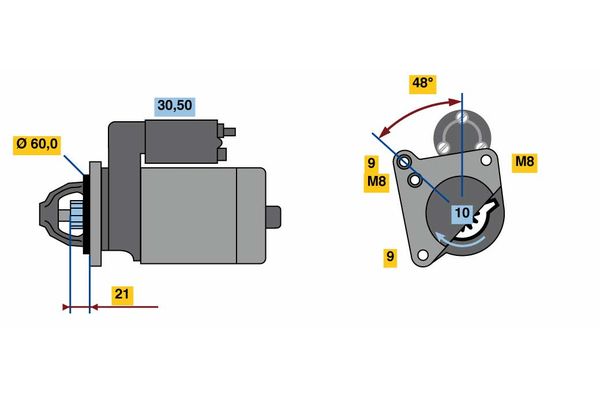

Flange Diameter [mm] :
60
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
13.7
Starter Type :
Self-supporting
Thread Size 2 :
M8x1.25
Thread Size 3 :
M8x1.25
Bore Diameter [mm] :
9
Bore Diameter 2 [mm] :
9
Length [mm] :
193
Position/Degree :
links
Mounting Angle [degrees] :
48
Jaw opening angle measurement [Degree] :
45
Mounting bore angle measurement [degree] :
48
Construction Year to :
12.2018
Engine Code :
HMR (EB2FA)
Construction Year from :
04.2018
Construction Year to :
12.2024
Vehicle Equipment :
for vehicles without start-stop function
Transmission Code :
BE4R
Engine Code :
HMZ (EB2F)
- Vendor BOSCH
- SKU 0986021970
- BMW : 12 41 7 540 897 12 41 7 550 017 12 41 7 552 105 12 41 7 582 309
- CITROËN : V764559080 5802 AR 5802 EV
- OPEL : V764559080
- PEUGEOT : V754089780 V755001780 V755210580 V764559080 V764559480 5802 AR 5802 EV
- VAUXHALL : V764559080
- STEYR : 7540897 7552105
- MINI : 12 41 7 552 105
- DS : V764559080
- BOSCH : 2197
