Bosch 0986022010 Starter Motor
Your selected vehicle
Regular price
£179.94
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

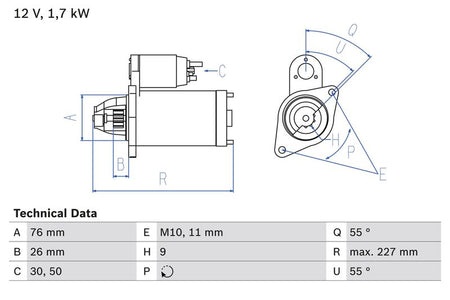

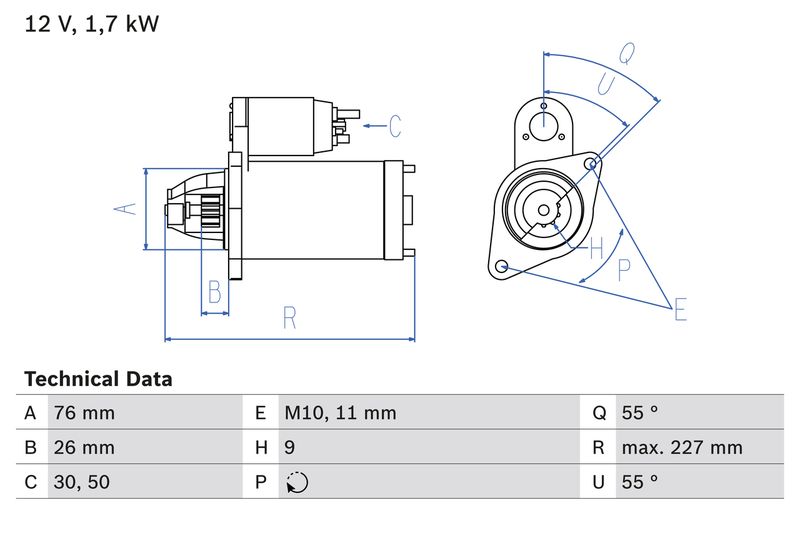

The Bosch 0986022010 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.7
Number of mounting bores :
1
Number of threaded holes :
1
Number of Teeth :
9
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
76
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
26
Starter Type :
Self-supporting
Thread Size :
M10
Bore Diameter 2 [mm] :
11
Length [mm] :
227
Position/Degree :
rechts
Mounting Angle [degrees] :
55
Jaw opening angle measurement [Degree] :
55
Mounting bore angle measurement [degree] :
55
- Vendor BOSCH
- SKU 0986022010
- BORG & BECK : BST2430
- BOSCH : 1 986 S00 835
- Carwood Group : BREF0320986022010
- Carwood Group : BREF0321986S00835
- HELLA : 8EA 011 611-431
- LUCAS : LRS02325
- WAI : 33329N
- WAI : S131.886
- BOSCH : 2201
