Bosch 0986022121 Starter - 1
Bosch 0986022121 Starter - 2
Bosch 0986022121 Starter - 1
Bosch 0986022121 Starter - 2
BOSCH

Bosch 0986022121 Starter Motor

SKU: 0986022121
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£104.00 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
B-MAX (JK)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP From 10/2012
1.5 TDCi 1499 CCM 75 HP From 10/2012
1.5 TDCi 1499 CCM 95 HP From 04/2015
ECOSPORT
Description Cylinder Capacity Horse Power Year
1.5 TDCi 1499 CCM 90 HP From 10/2013
1.5 EcoBlue TDCi 1499 CCM 95 HP From 05/2015
FIESTA V (JH_, JD_)
Description Cylinder Capacity Horse Power Year
1.4 TDCi 1399 CCM 68 HP 11/2001 - 06/2008
1.6 TDCi 1560 CCM 90 HP 11/2004 - 06/2008
FIESTA V Van
Description Cylinder Capacity Horse Power Year
1.4 TDCi 1399 CCM 68 HP 10/2003 - 12/2010
1.6 TDCi 1560 CCM 90 HP 04/2007 - 09/2009
FIESTA VI (CB1, CCN)
Description Cylinder Capacity Horse Power Year
1.4 TDCi 1399 CCM 70 HP 07/2010 - 09/2012
1.6 TDCi 1560 CCM 90 HP 06/2008 - 12/2012
1.4 TDCi 1399 CCM 68 HP 08/2008 - 09/2012
1.6 TDCi 1560 CCM 75 HP 06/2008 - 12/2012
1.6 TDCi 1560 CCM 95 HP 02/2010 - 12/2015
FIESTA VI Van
Description Cylinder Capacity Horse Power Year
1.4 TDCi 1399 CCM 70 HP 07/2010 - 04/2017
1.6 TDCi 1560 CCM 95 HP 02/2010 - 05/2015
1.4 TDCi 1399 CCM 68 HP 01/2009 - 04/2017
1.6 TDCi 1560 CCM 90 HP 01/2009 - 04/2017
1.5 TDCi 1499 CCM 75 HP 10/2012 - 04/2017
1.5 TDCi 1499 CCM 95 HP 05/2015 - 04/2017
FUSION (JU_)
Description Cylinder Capacity Horse Power Year
1.4 TDCi 1399 CCM 68 HP 08/2002 - 12/2012
1.6 TDCi 1560 CCM 90 HP 11/2004 - 12/2012
TOURNEO COURIER B460 MPV
Description Cylinder Capacity Horse Power Year
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
TRANSIT COURIER B460 Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
TRANSIT COURIER B460 MPV
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 95 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 75 HP 02/2014 - 12/2023
1.5 TDCi 1499 CCM 95 HP 05/2015 - 12/2023
MAZDA
2 (DE_, DH_)
Description Cylinder Capacity Horse Power Year
1.4 MZR-CD 1399 CCM 68 HP 10/2007 - 12/2010
1.6 MZ-CD 1560 CCM 90 HP 10/2008 - 06/2015
1.6 MZ-CD 1560 CCM 95 HP 06/2011 - 06/2015

The Bosch 0986022121 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.4 kW rated power, 12 and 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

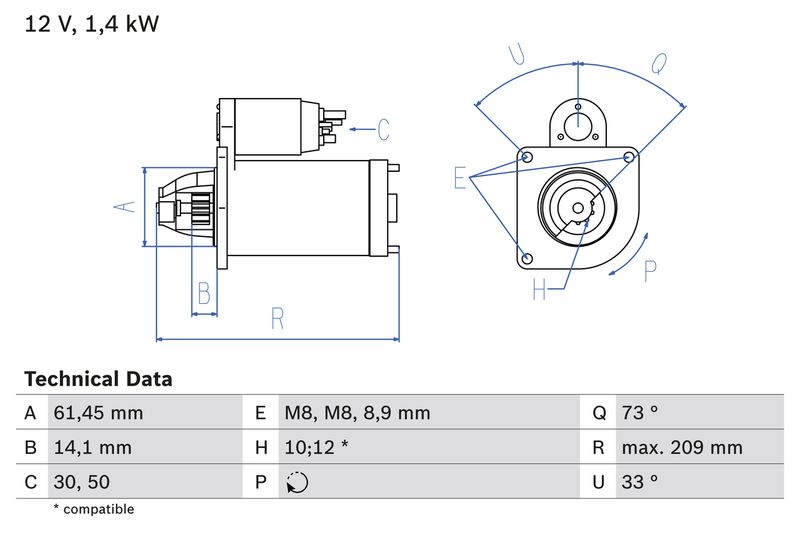

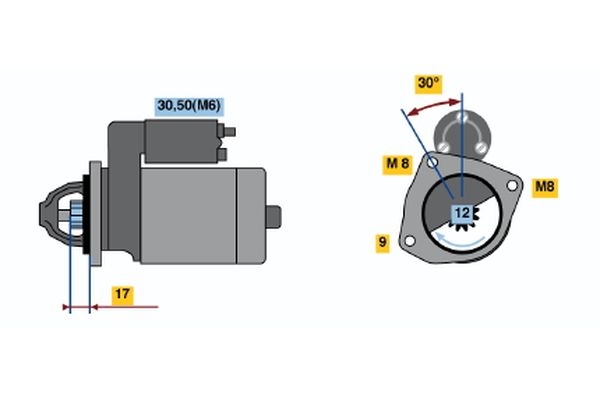

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.4
Number of mounting bores : 3
Number of threaded holes : 2
Number of Teeth : 12
Number of Teeth : 10
Clamp : 50
Flange Diameter [mm] : 61.5
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 14.49
Starter Type : Self-supporting
Thread Size : M8
Thread Size 1 : M8x1.25
Bore Ø 3 [mm] : 8.9
Length [mm] : 209
Position/Degree : links
Mounting Angle [degrees] : 33
Jaw opening angle measurement [Degree] : 73
Mounting bore angle measurement [degree] : 33
Engine Code : XUJA
Engine Code : XUJB
Construction Year from : 05.2015
Construction Year to : 12.2018
Vehicle Equipment : for vehicles without start-stop function
Engine Code : UGJC
Construction Year to : 06.2015
Engine Code : XVJA
  • Vendor BOSCH
  • SKU 0986022121
  • Barcode 4047024413795
  • APEC : ASM1521
  • BORG & BECK : BST2174
  • Carwood Group : BREF0320986022121
  • Carwood Group : BREF032113905
  • Carwood Group : BREF032116159
  • FEBI BILSTEIN : 187778
  • HELLA : 8EA 011 610-211
  • LUCAS : LRS01717
  • NAPA : NSM1521
  • VALEO : 446503
  • WAI : 32516N
  • WAI : S134.442
  • BOSCH : 2212
