BOSCH

Bosch 0986022151 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986022151

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£169.67 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SMART
CABRIO (450)
Description Cylinder Capacity Horse Power Year
0.6 (S1OLA1, 450.441, 450.442, 450.443) 599 CCM 55 HP 03/2000 - 01/2004
0.6 (S1OLD2, 450.452) 599 CCM 61 HP 01/2001 - 01/2004
0.7 (450.452, 450.432) 698 CCM 61 HP 01/2003 - 01/2004
0.7 (450.433) 698 CCM 75 HP 01/2003 - 01/2004
0.6 (450.432) 599 CCM 71 HP 06/2002 - 01/2004
CITY-COUPE (450)
Description Cylinder Capacity Horse Power Year
0.6 (S1CLB1, 450.331, 450.336) 599 CCM 45 HP 07/1998 - 01/2004
0.6 (S1CLA1, 450.341) 599 CCM 55 HP 07/1998 - 01/2004
0.6 (450.352, 450.353) 599 CCM 61 HP 01/2001 - 01/2004
0.7 (450.330) 698 CCM 50 HP 01/2003 - 01/2004
0.7 (450.352, 450.332) 698 CCM 61 HP 01/2003 - 01/2004
0.7 (450.333) 698 CCM 75 HP 01/2003 - 01/2004
0.6 (450.330) 599 CCM 71 HP 06/2002 - 01/2004
CROSSBLADE (450)
Description Cylinder Capacity Horse Power Year
0.6 (450.418) 599 CCM 71 HP 06/2002 - 12/2003
FORTWO Coupe (450)
Description Cylinder Capacity Horse Power Year
0.7 (450.330) 698 CCM 50 HP 01/2004 - 01/2007
0.7 (450.352, 450.332) 698 CCM 61 HP 01/2004 - 01/2007
0.7 (450.333) 698 CCM 75 HP 01/2004 - 01/2007
0.6 (450.332) 599 CCM 61 HP 01/2004 - 02/2007
0.7 (450.335) 698 CCM 54 HP 01/2004 - 01/2007
FORTWO Cabrio (450)
Description Cylinder Capacity Horse Power Year
0.7 (450.452) 698 CCM 61 HP 01/2004 - 01/2007
0.7 (450.433) 698 CCM 75 HP 01/2004 - 01/2007
0.6 Brabus (450.433) 599 CCM 75 HP 01/2004 - 12/2006
0.6 599 CCM 61 HP 01/2004 - 12/2006
ROADSTER Coupe (452)
Description Cylinder Capacity Horse Power Year
0.7 (452.334) 698 CCM 82 HP 04/2003 - 11/2005
0.7 Brabus (452.337) 698 CCM 101 HP 12/2003 - 11/2005
0.7 (452.332) 698 CCM 61 HP 06/2003 - 11/2005
ROADSTER (452)
Description Cylinder Capacity Horse Power Year
0.7 (452.434) 698 CCM 82 HP 04/2003 - 11/2005
0.7 (452.432) 698 CCM 61 HP 04/2003 - 11/2005
0.7 Brabus (452.437) 698 CCM 101 HP 12/2003 - 11/2005

The Bosch 0986022151 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 0.8 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

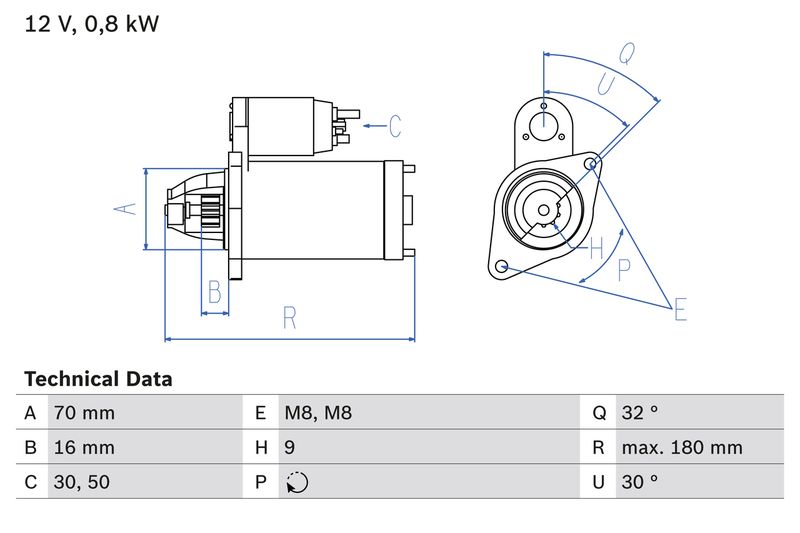

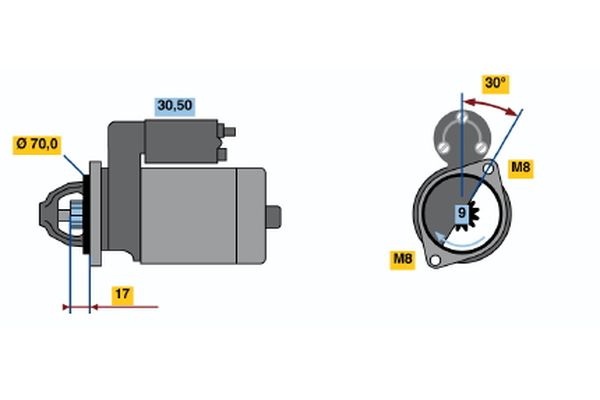

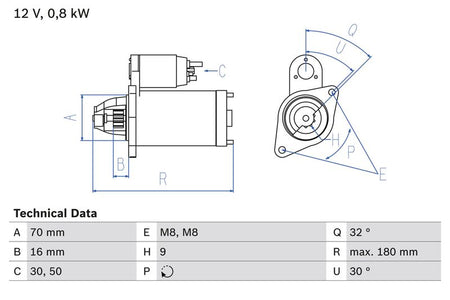

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 0.8
Number of mounting bores : 0
Number of threaded holes : 2
Number of Teeth : 9
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 70
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 16
Starter Type : Self-supporting
Thread Size : M8
Thread Size 1 : M8x1.25
Length [mm] : 180
Position/Degree : rechts
Mounting Angle [degrees] : 30
Jaw opening angle measurement [Degree] : 32
Mounting bore angle measurement [degree] : 30
Engine Code : M 160.910
  • Vendor BOSCH
  • SKU 0986022151
  • Barcode 4047024414730
  • MERCEDES-BENZ : A 005 151 07 01 A 005 151 26 01 005 151 07 01 005 151 26 01
  • SMART : Q0003188V004 Q0003188V005 Q0003188V006 Q0003188V007 Q0003188V008 000 3188 V004 000 3188 V005 000 3188 V006 000 3188 V007 000 3188 V008
  • APEC : ASM1531
  • BOSCH : 1 986 S01 022
  • Carwood Group : BREF0320986022151
  • Carwood Group : BREF032115951
  • Carwood Group : BREF0321986S01022
  • DENSO : DSN583
  • HELLA : 8EA 011 611-471
  • LUCAS : LRS01461
  • NAPA : NSM1531
  • VALEO : 445654
  • VALEO : 458471
  • WAI : 32461N
  • WAI : S133.494
  • BOSCH : 2215
