Bosch 0986022260 Starter Motor
Your selected vehicle
Regular price
£300.85
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

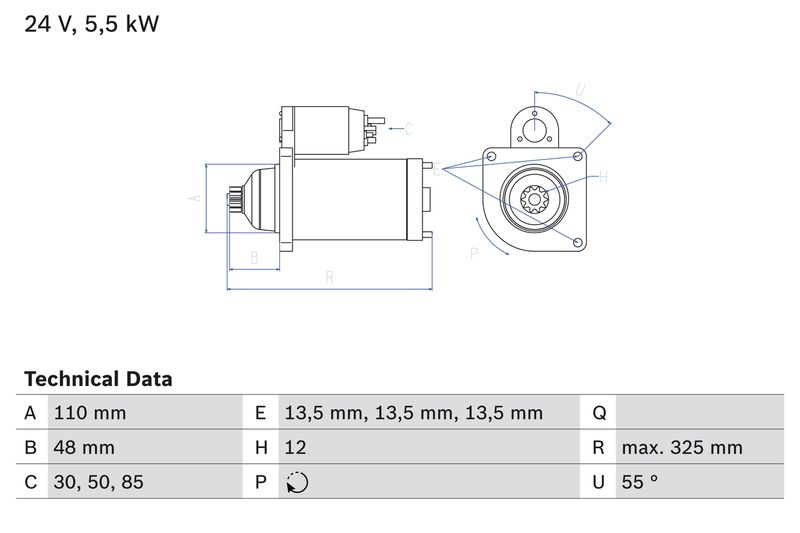

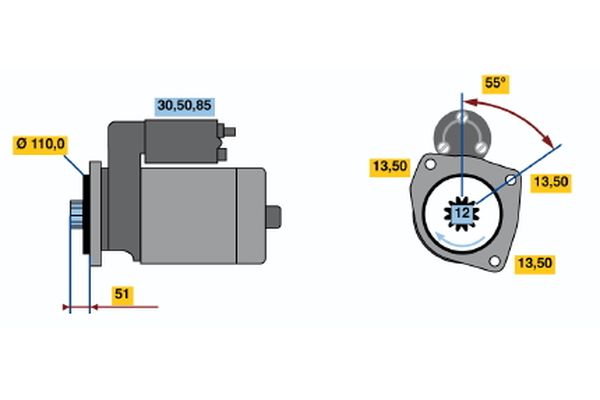

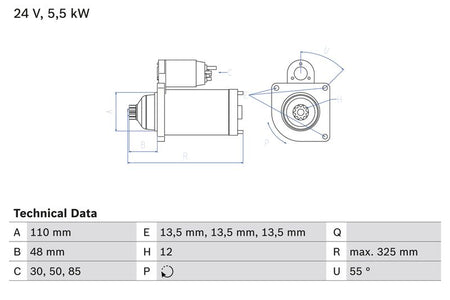

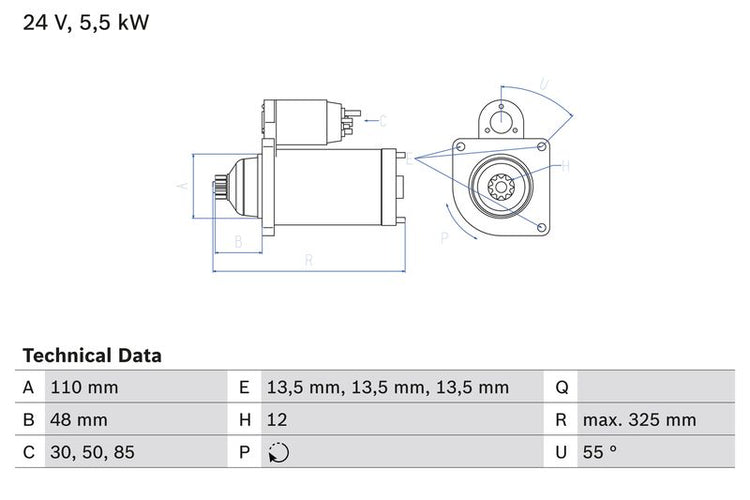

The Bosch 0986022260 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 5.5 kW rated power, 12 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
5.5
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
12
Clamp :
30
Clamp :
85
Clamp :
50
Flange Diameter [mm] :
110
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
48
Starter Type :
Floating pinion
Bore Diameter [mm] :
13.5
Bore Diameter 2 [mm] :
13.5
Bore Ø 3 [mm] :
13.5
Length [mm] :
325
Position/Degree :
rechts
Mounting Angle [degrees] :
55
Mounting bore angle measurement [degree] :
55
- Vendor BOSCH
- SKU 0986022260
- BORG & BECK : BST32055
- BORG & BECK : BST32094
- BOSCH : 1 986 S10 045
- Carwood Group : BREF0320986022260
- Carwood Group : BREF032114073
- Carwood Group : BREF0321986S10045
- FEBI BILSTEIN : 175818
- FEBI BILSTEIN : 48988
- FEBI BILSTEIN : 48991
- HELLA : 8EA 012 586-491
- LUCAS : LRS02341
- MAHLE : MS 759
- VALEO : 203007
- VALEO : 438590
- WAI : 19741N
- WAI : 31501N
- BOSCH : 2226
