Bosch 0986022400 Starter Motor
Your selected vehicle
Regular price
£270.85
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

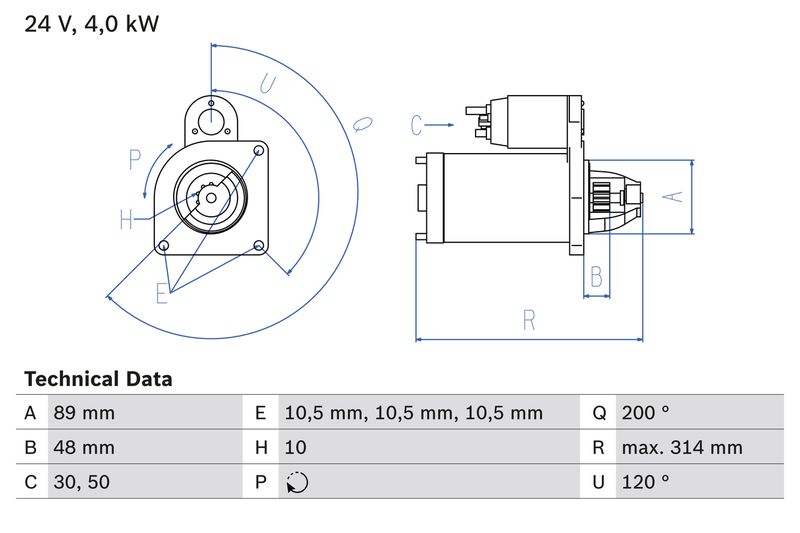

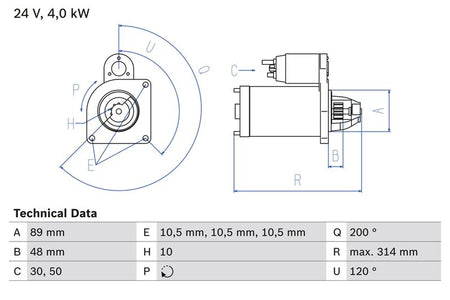

The Bosch 0986022400 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 4 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
4
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
10
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
48
Starter Type :
Self-supporting
Bore Diameter [mm] :
10.5
Bore Diameter 2 [mm] :
10.5
Bore Ø 3 [mm] :
10.5
Length [mm] :
314
Position/Degree :
rechts
Mounting Angle [degrees] :
120
Jaw opening angle measurement [Degree] :
200
Mounting bore angle measurement [degree] :
120
- Vendor BOSCH
- SKU 0986022400
- FIAT : 504368346
- IVECO : 504120738 504368346 5801520336
- IRISBUS : 5801520336
- BORG & BECK : BST32069
- BOSCH : 0 001 251 004
- BOSCH : 1 986 S10 037
- Carwood Group : BREF0320986022400
- Carwood Group : BREF032116473
- Carwood Group : BREF0321986S10037
- FEBI BILSTEIN : 175826
- HELLA : 8EA 012 586-631
- LUCAS : LRS02554
- MAHLE : MS 139
- VALEO : 203045
- VALEO : 438331
- VALEO : 458764
- WAI : 30123N
- WAI : 30406N
- BOSCH : 2240
