Bosch 0986022460 Starter Motor
Your selected vehicle
Regular price
£184.62
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

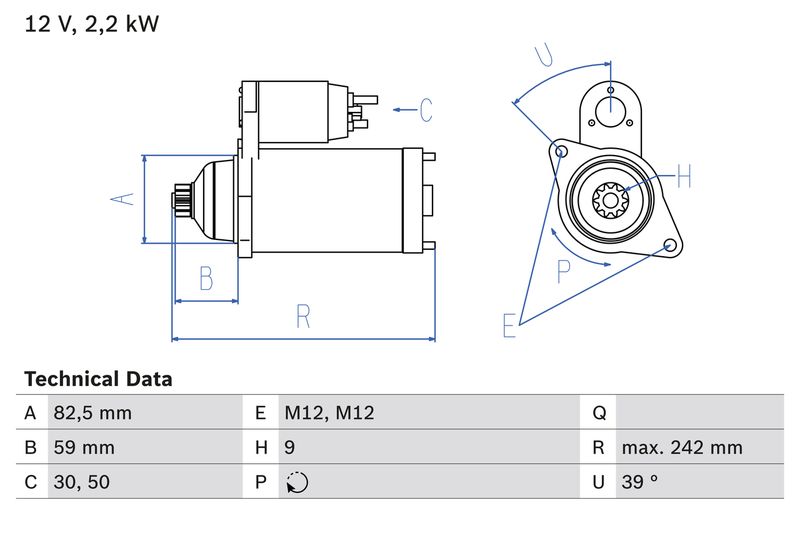

The Bosch 0986022460 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 9 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.2
Number of mounting bores :
0
Number of threaded holes :
2
Number of Teeth :
9
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
82.5
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
59
Starter Type :
Floating pinion
Thread Size :
M12
Thread Size 1 :
M12x1.75
Length [mm] :
242
Position/Degree :
links
Mounting Angle [degrees] :
39
Mounting bore angle measurement [degree] :
39
Engine Code :
BLK
Construction Year to :
11.2006
Engine Code :
BAC
- Vendor BOSCH
- SKU 0986022460
- APEC : ASM1751
- BORG & BECK : BST2095
- BOSCH : 0 001 125 600
- BOSCH : 1 986 S00 822
- Carwood Group : BREF0320986022460
- Carwood Group : BREF032114723
- Carwood Group : BREF0321986S00822
- HELLA : 8EA 012 526-051
- LUCAS : LRS01679
- NAPA : NSM1751
- WAI : 32700N
- WAI : S132.367
- BOSCH : 2246
