Bosch 0986022500 Starter Motor
Your selected vehicle
Regular price
£188.07
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986022500 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.6 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

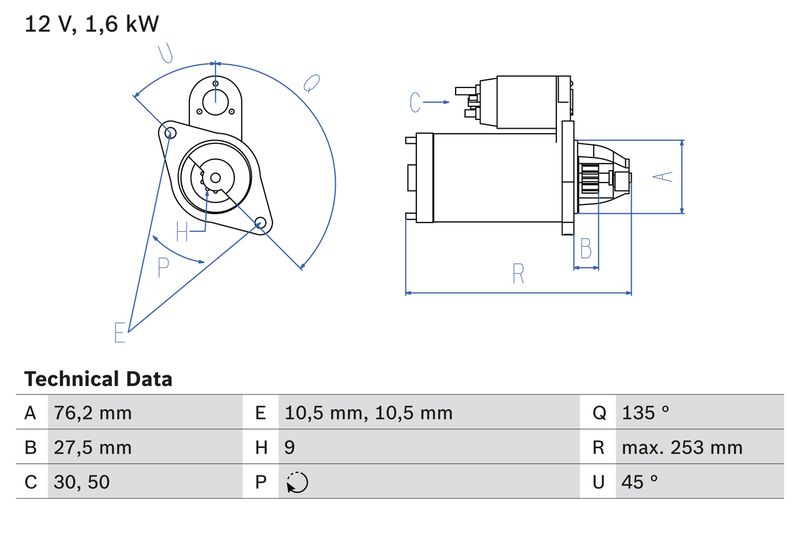

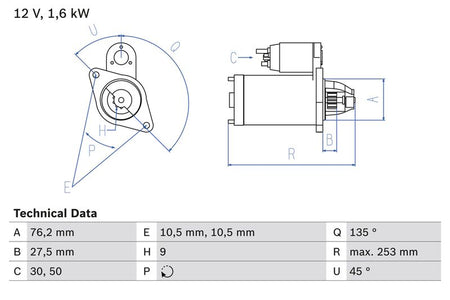

Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.6
Number of mounting bores :
2
Number of threaded holes :
0
Number of Teeth :
9
Clamp :
50
Clamp :
30

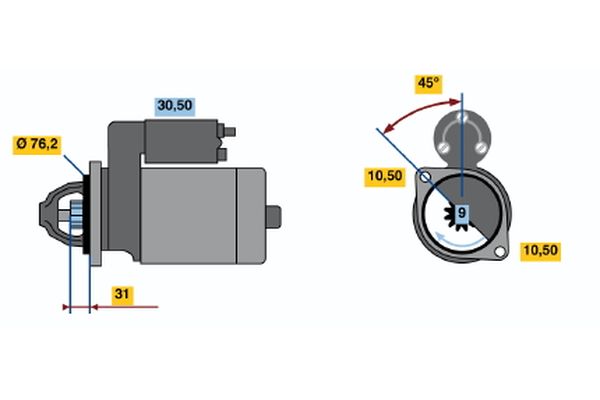

Flange Diameter [mm] :
76.2
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
27.5
Starter Type :
Self-supporting
Bore Diameter [mm] :
10.5
Bore Diameter 2 [mm] :
10.5
Length [mm] :
253
Position/Degree :
links
Mounting Angle [degrees] :
45
Jaw opening angle measurement [Degree] :
135
Mounting bore angle measurement [degree] :
45
- Vendor BOSCH
- SKU 0986022500
- BORG & BECK : BWP1171
- BOSCH : 0 001 115 034
- BOSCH : 1 986 S00 762
- Carwood Group : BREF0320986022500
- Carwood Group : BREF032115816
- Carwood Group : BREF0321986S00762
- FIRST LINE : FWP1171
- HELLA : 8EA 011 611-021
- LUCAS : LRS01439
- MAHLE : MS 1226
- WAI : 18365N
- BOSCH : 2250
