Bosch 0986022601 Starter - 1
Bosch 0986022601 Starter - 1
BOSCH

Bosch 0986022601 Starter Motor

5.0/5 78 reviews
SKU: 0986022601

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£186.51 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

HYUNDAI
AMICA / ATOZ (MX)
Description Cylinder Capacity Horse Power Year
1.0 i 999 CCM 54 HP 02/1998 - 12/2007
1.1 1086 CCM 63 HP 08/2003 - 12/2007
1.1 1086 CCM 58 HP 08/2003 - 12/2008
1.1 1086 CCM 61 HP 06/2003 - 12/2010
GETZ (TB)
Description Cylinder Capacity Horse Power Year
1.1 1086 CCM 63 HP 09/2002 - 09/2005
1.1 1086 CCM 67 HP 09/2005 - 06/2009
i10 I (PA)
Description Cylinder Capacity Horse Power Year
1.1 1086 CCM 69 HP 04/2011 - 12/2013
1.1 LPG 1086 CCM 69 HP 04/2011 - 12/2013
1.1 1086 CCM 67 HP 01/2008 - 12/2013
1.1 1086 CCM 65 HP 12/2007 - 12/2013
1.1 1086 CCM 68 HP 11/2008 - 12/2013
KIA
PICANTO I (SA)
Description Cylinder Capacity Horse Power Year
1.1 1086 CCM 65 HP 04/2004 - 09/2011
1.0 999 CCM 61 HP 04/2004 - 04/2011
1.0 999 CCM 63 HP 09/2007 - 04/2011

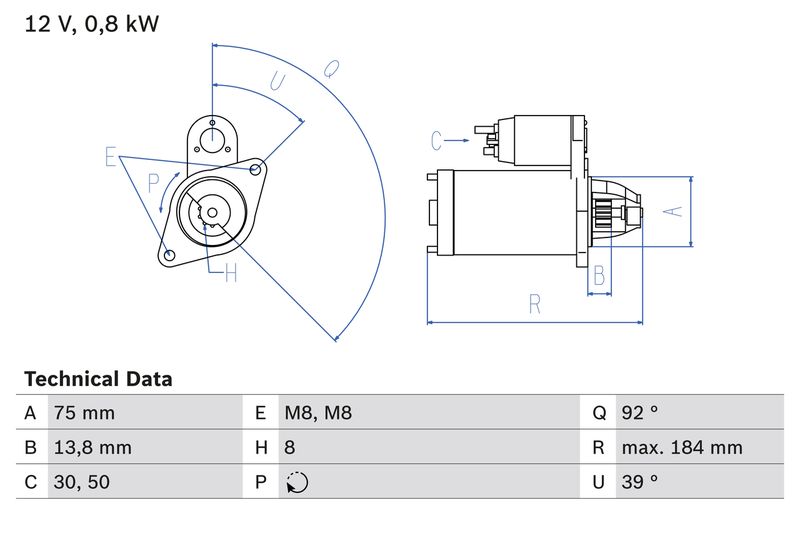

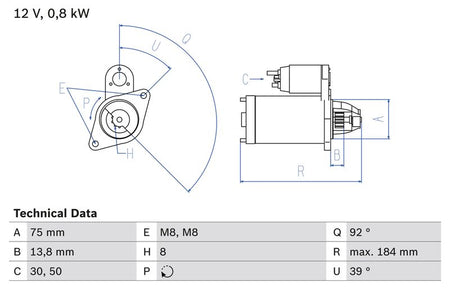

The Bosch 0986022601 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 0.8 kW rated power, 8 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 0.8
Number of mounting bores : 0
Number of threaded holes : 2
Number of Teeth : 8
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 75
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 13.8
Starter Type : Self-supporting
Thread Size : M8
Thread Size 1 : M8x1.25
Length [mm] : 184
Position/Degree : rechts
Mounting Angle [degrees] : 39
Jaw opening angle measurement [Degree] : 92
Mounting bore angle measurement [degree] : 39
Construction Year to : 03.2008
  • Vendor BOSCH
  • SKU 0986022601
  • Barcode 4047024414785
  • HYUNDAI : 36100 02511 36100 02550 36100 02555 36100 02560 36100 02800
  • KIA : 36100 02550 36100 02555 36100 02560 36100 02800
  • APEC : ASM1209
  • BORG & BECK : BST2047
  • BOSCH : 1 986 S01 153
  • Carwood Group : BREF0320986022601
  • Carwood Group : BREF032112322
  • Carwood Group : BREF0321986S01153
  • FEBI BILSTEIN : 193117
  • HELLA : 8EA 011 610-761
  • LUCAS : LRS01453
  • NAPA : NSM1209
  • VALEO : 455967
  • VALEO : 600244
  • VALEO : 616484
  • WAI : 32453N
  • WAI : S130.345
  • BOSCH : 2260
