Home / Car Parts / Electrical / Starter System / Starter Motors

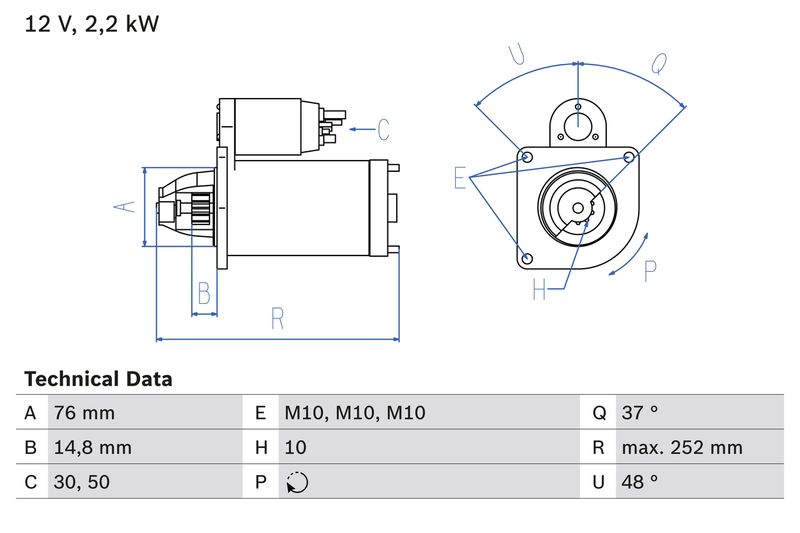

Bosch 0986022631 Starter - 1

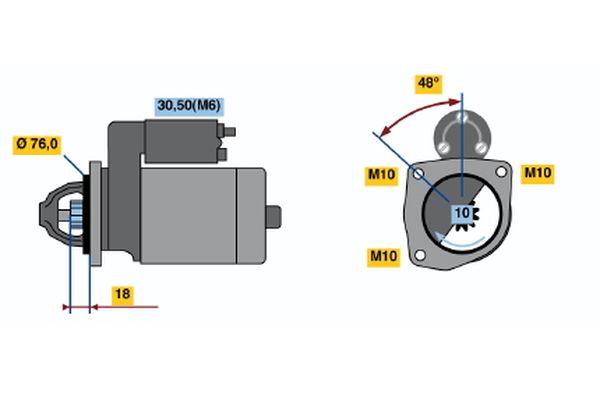

Bosch 0986022631 Starter - 2
Bosch 0986022631 Starter - 1
Bosch 0986022631 Starter - 2
BOSCH

Bosch 0986022631 Starter Motor

SKU: 0986022631
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£160.25 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
COURIER Box Body/MPV (J5_, J3_)
Description Cylinder Capacity Horse Power Year
1.8 DI 1753 CCM 75 HP 09/2000 - 08/2003
COURIER Hatchback Van (JV_)
Description Cylinder Capacity Horse Power Year
TD 1.8 1753 CCM 75 HP 03/2000 - 08/2003
FIESTA Mk IV (JA_, JB_)
Description Cylinder Capacity Horse Power Year
1.8 DI 1753 CCM 75 HP 04/2000 - 01/2002
FOCUS I Estate Van (DNW)
Description Cylinder Capacity Horse Power Year
1.8 TDDi 1753 CCM 75 HP 08/1999 - 03/2005
1.8 TDDi 1753 CCM 90 HP 08/1998 - 03/2005
1.8 TDCi 1753 CCM 101 HP 08/2002 - 03/2005
1.8 TDCi 1753 CCM 116 HP 08/2001 - 03/2005
FOCUS I (DAW, DBW)
Description Cylinder Capacity Horse Power Year
1.8 Turbo DI / TDDi 1753 CCM 90 HP 10/1998 - 11/2004
1.8 DI / TDDi 1753 CCM 75 HP 08/1999 - 11/2004
1.8 TDCi 1753 CCM 115 HP 03/2001 - 11/2004
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
FOCUS I Turnier (DNW)
Description Cylinder Capacity Horse Power Year
1.8 Turbo DI / TDDi 1753 CCM 90 HP 02/1999 - 11/2004
1.8 DI / TDDi 1753 CCM 75 HP 08/1999 - 11/2004
1.8 TDCi 1753 CCM 115 HP 03/2001 - 11/2004
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
FOCUS I Saloon (DFW)
Description Cylinder Capacity Horse Power Year
1.8 Turbo DI / TDDi 1753 CCM 90 HP 02/1999 - 11/2004
1.8 TDCi 1753 CCM 115 HP 10/2001 - 04/2005
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 75 HP 08/2001 - 03/2005

The Bosch 0986022631 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.2
Number of mounting bores : 3
Number of threaded holes : 3
Number of Teeth : 10
Clamp : 30
Flange Diameter [mm] : 76
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 14.4
Starter Type : Self-supporting
Thread Size : M10
Thread Size 1 : M10x1.5
Thread Size 2 : M10x1.5
Length [mm] : 252
Position/Degree : links
Mounting Angle [degrees] : 48
Jaw opening angle measurement [Degree] : 37
Mounting bore angle measurement [degree] : 48
Construction Year from : 01.1999
  • Vendor BOSCH
  • SKU 0986022631
  • Barcode 4047024414839
  • FORD : 1S4U11000AA 1S4U11000AB 1133994 97BB11000B3D 98AB11000AD
  • APEC : ASM1260
  • BORG & BECK : BST2140
  • BORG & BECK : BST2228
  • BORG & BECK : BST2325
  • BOSCH : 1 986 S01 037
  • Carwood Group : BREF0320986022631
  • Carwood Group : BREF032114119
  • Carwood Group : BREF0321986S01037
  • HELLA : 8EA 011 610-321
  • LUCAS : LRT00163
  • NAPA : NSM1260
  • VALEO : 438486
  • VALEO : 455896
  • WAI : 30163N
  • WAI : 30164N
  • WAI : S134.437
  • BOSCH : 2263
