Bosch 0986022670 Starter Motor
Your selected vehicle
Regular price
£178.05
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

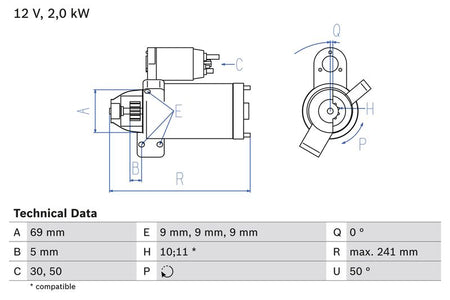

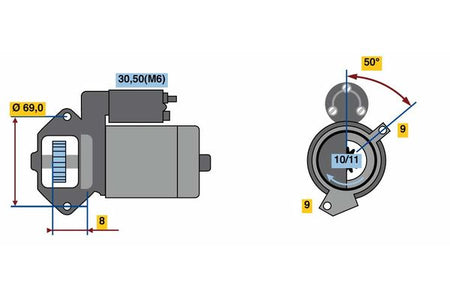

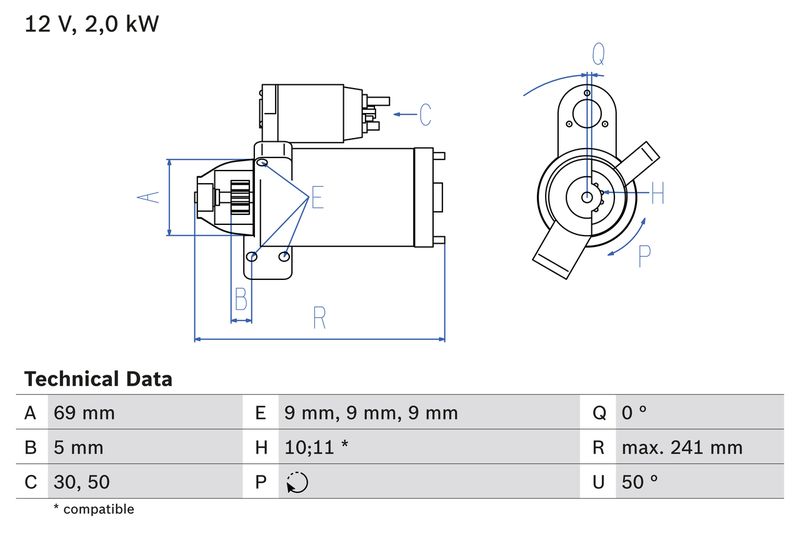

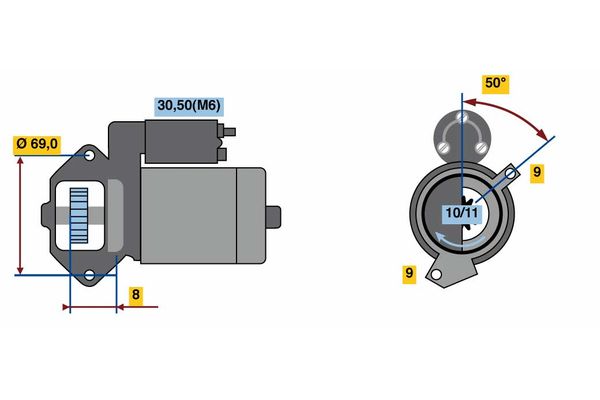

The Bosch 0986022670 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.8 kW rated power, 11 and 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.8
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
11
Number of Teeth :
10
Clamp :
50
Flange Diameter [mm] :
69
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
-0.53
Starter Type :
Self-supporting
Bore Diameter [mm] :
9
Bore Diameter 2 [mm] :
9
Bore Ø 3 [mm] :
9
Length [mm] :
241
Position/Degree :
rechts
Mounting Angle [degrees] :
50
Jaw opening angle measurement [Degree] :
0
Mounting bore angle measurement [degree] :
50
- Vendor BOSCH
- SKU 0986022670
- APEC : ASM1703
- BORG & BECK : BST2648
- BOSCH : 1 986 S00 862
- Carwood Group : BREF0320986022670
- Carwood Group : BREF032114689
- Carwood Group : BREF0321986S00862
- DENSO : DSN3137
- HELLA : 8EA 012 528-571
- LUCAS : LRS02527
- NAPA : NSM1703
- WAI : 30316N
- WAI : S131.581
- BOSCH : 2267
