Home / Car Parts / Electrical / Starter System / Starter Motors
Bosch 0986022700 Starter - 1
Bosch 0986022700 Starter - 2
Bosch 0986022700 Starter - 1
Bosch 0986022700 Starter - 2
BOSCH

Bosch 0986022700 Starter Motor

5.0/5 78 reviews
SKU: 0986022700

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£246.57 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

MITSUBISHI
PAJERO SPORT II (KH_, KG_)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 4WD 3200 CCM 165 HP From 07/2008
PAJERO/SHOGUN Mk II (V3_W, V2_W, V4_W, V5_W)
Description Cylinder Capacity Horse Power Year
2.8 TD (V46W, V26W) 2835 CCM 125 HP 06/1994 - 10/1999
2.8 D (V46W, V26W) 2835 CCM 140 HP 11/1993 - 10/1999
PAJERO/SHOGUN III (V7_W, V6_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W) 3200 CCM 160 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 10/2006
PAJERO/SHOGUN Mk III Canvas Top (V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 160 HP 10/2001 - 12/2006
PAJERO/SHOGUN IV (V8_W, V9_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 190 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 160 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 170 HP From 02/2007
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 200 HP From 01/2009
3.2 DI-D 3200 CCM 167 HP From 02/2007
PAJERO/SHOGUN IV Van (V9_, V8_, V8_V)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 3200 CCM 160 HP From 11/2006
3.2 TD 4WD (V88V, V98V) 3200 CCM 200 HP From 01/2010
3.2 DI-D 4WD (V88W, V98W) 3200 CCM 190 HP From 02/2007
SHOGUN II (V3_W)
Description Cylinder Capacity Horse Power Year
3.2 DiD 4WD 3200 CCM 165 HP 04/2000 - 09/2007
3.2 DiD 4WD 3200 CCM 160 HP 05/2005 - 09/2007

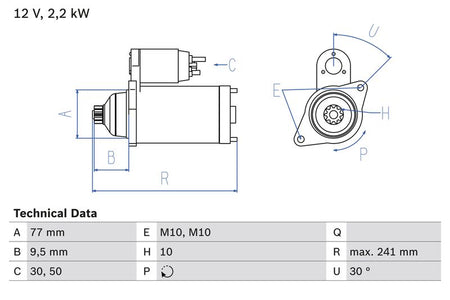

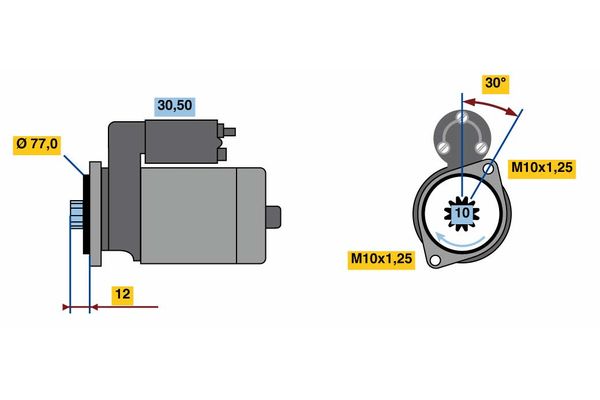

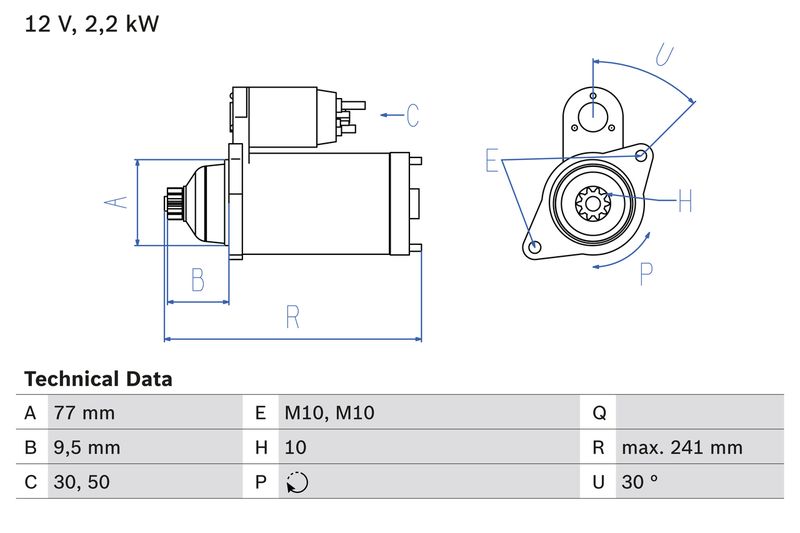

The Bosch 0986022700 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 10 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.2
Number of mounting bores : 0
Number of threaded holes : 2
Number of Teeth : 10
Clamp : 30,50
Flange Diameter [mm] : 77
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 9.5
Starter Type : Floating pinion
Thread Size : M10x1.25
Thread Size 1 : M10x1.25
Length [mm] : 241
Position/Degree : rechts
Mounting Angle [degrees] : 30
Mounting bore angle measurement [degree] : 30
Construction Year to : 08.2006
  • Vendor BOSCH
  • SKU 0986022700
  • Barcode 4047024590946
  • MITSUBISHI : ME201650 ME201650A ME202970 ME204424 ME204424A ME204425 ME204425B 1810A050
  • APEC : ASM1227
  • BLUE PRINT : ADC412505
  • BORG & BECK : BST2169
  • BORG & BECK : BST2294
  • BORG & BECK : BWP1254
  • BOSCH : 1 986 S01 120
  • Carwood Group : BREF0320986022700
  • Carwood Group : BREF032112370
  • Carwood Group : BREF0321986S01120
  • FEBI BILSTEIN : 193918
  • FIRST LINE : FWP1254
  • HELLA : 8EA 011 610-671
  • LUCAS : LRS01328
  • NAPA : NSM1227
  • VALEO : 446527
  • WAI : 32328N
  • WAI : S130.524
  • BOSCH : 2270
